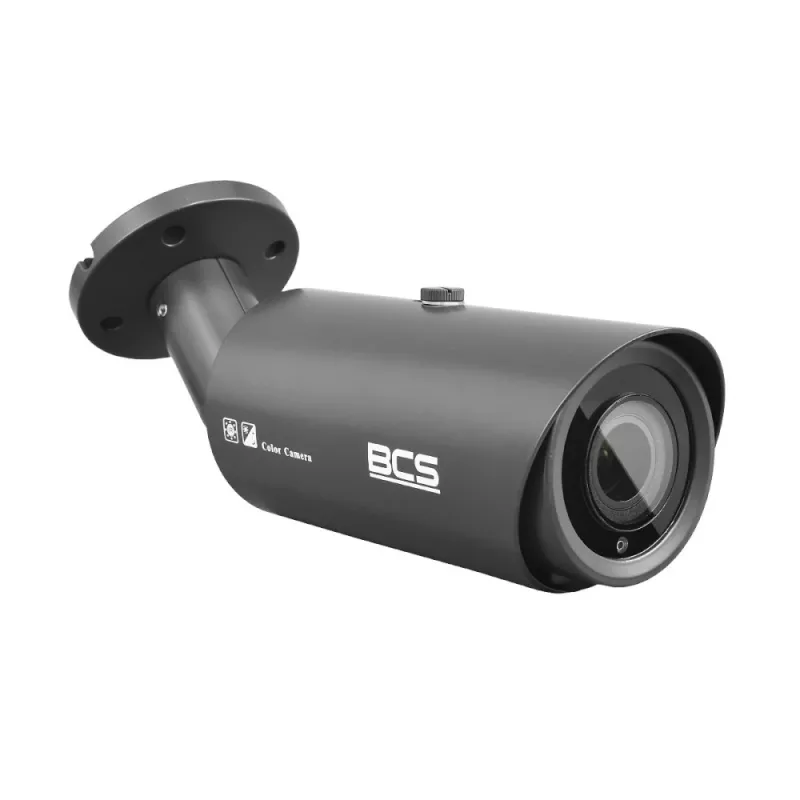

BCS BCS-TA58VSR5-G(2) 8MP HD putkikamera 50 m IR, IP67, 3.6 mm objektiivi

Capture every detail with the BCS-TA58VSR5-G(2), an 8-megapixel analog HD camera engineered for uncompromising surveillance. Its 1/2.7" CMOS sensor and 3.6mm fixed lens deliver crisp 3840x2160 resolution, while Smart IR illumination reaches up to 50 meters in complete darkness. Built to withstand harsh environments, this IP67-rated metal bullet camera operates flawlessly from -30°C to 60°C.

Overview

The BCS-TA58VSR5-G(2) is a high-performance tubular analog camera that combines 4-in-1 video output (CVI/TVI/AHD/CVBS) with advanced imaging technologies. It supports 8MP at 15fps, ensuring smooth and detailed footage. Digital WDR and 2D/3D noise reduction optimize image quality in challenging lighting, while the auto ICR day/night function guarantees 24/7 monitoring. Coaxial control allows easy OSD menu access for fine-tuning.

What stands out

• 8MP ultra-HD resolution (3840x2160) for exceptional clarity
• Smart IR with up to 50m night vision range
• IP67 weatherproof metal housing for outdoor use
• 4-in-1 video output (CVI/TVI/AHD/CVBS) for flexible integration
• DWDR and 2D/3D DNR for superior image in varied lighting
• Wide operating temperature range (-30°C to 60°C)

Technical details

• Sensor: 1/2.7" CMOS
• Max Resolution: 8MP (3840x2160)
• Frame Rate: 8MP@15fps, 4MP@25/30fps, 2MP@25/30fps
• Lens: 3.6mm fixed, horizontal FOV approx. 87°
• Min Illumination: 0.005 Lux (color), 0 Lux (IR on)
• IR Range: Up to 50m (Smart IR)
• Video Output: CVI/TVI/AHD/CVBS (switchable)
• WDR: Digital WDR
• Noise Reduction: 2D/3D DNR
• Power: DC 12V, max 5.5W
• Ingress Protection: IP67
• Housing: Metal
• Operating Temperature: -30°C to 60°C
• Transmission Distance: Up to 700m (8MP via coax, cable dependent)

Our verdict

The BCS-TA58VSR5-G(2) is a robust and versatile surveillance camera that excels in both image quality and durability. Its 8MP resolution, long-range IR, and multi-format output make it an ideal choice for professional security installations requiring reliable 24/7 monitoring in any environment.
