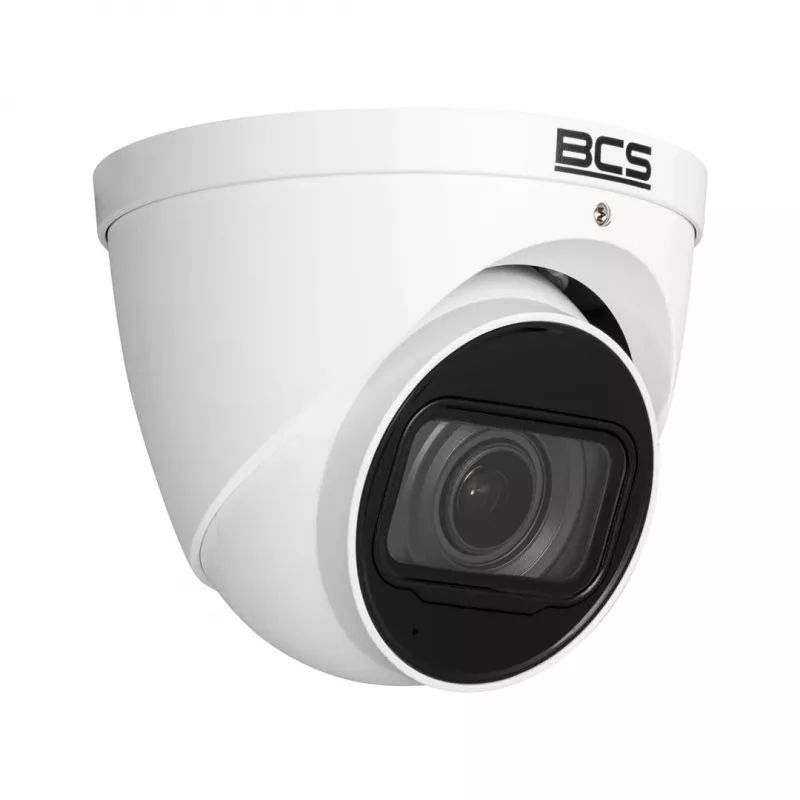

BCS EA48VWR6(2) 8MP analoginen HD-kamera, moottoroitu varifokaali 2.7-13.5mm, IR 60m, IP67, IK10

The BCS EA48VWR6(2) is a high-performance 8 Megapixel Analog HD camera designed for professional surveillance. Featuring a 1/2.7" CMOS sensor, it delivers crisp 3840x2160 resolution at 15fps. The motorized varifocal lens (2.7-13.5mm) provides a wide horizontal angle of view (105°–34°), making it suitable for various monitoring scenarios. With 4-in-1 video output (HDCVI/AHD/HDTVI/CVBS), it offers flexible integration. Smart IR technology ensures clear night vision up to 60 meters. The camera is housed in a durable metal enclosure with IP67 weatherproof and IK10 vandal-resistant ratings, ensuring reliable operation in harsh environments.

Advantages

Exceptional 8MP resolution for detailed imaging; motorized varifocal lens for easy adjustment; long-range IR illumination; robust metal housing with IP67/IK10 protection; versatile 4-in-1 video output compatibility.

Suitable for

• Outdoor surveillance of perimeters, parking lots, and building entrances
• Indoor monitoring in warehouses, factories, and retail spaces
• Critical infrastructure requiring high detail and vandal resistance

Key specifications

• Sensor: 1/2.7" 8MP CMOS
• Resolution: 8MP (3840x2160) @ 15fps
• Lens: Motorized varifocal 2.7-13.5mm
• IR Range: Up to 60m (Smart IR)
• Video Output: 4-in-1 (HDCVI/AHD/HDTVI/CVBS)
• WDR: Digital WDR (DWDR)
• Noise Reduction: 2D/3D DNR
• Power: DC 12V, max 7.7W
• Protection: IP67, IK10
• Operating Temperature: -30°C to +60°C
• Housing Material: Metal

Recommendations

For optimal performance, use a high-quality DC 12V power supply and ensure proper cable connections. The camera supports OSD menu for easy configuration. Compatible with BCS DVRs and other 4-in-1 receivers.
