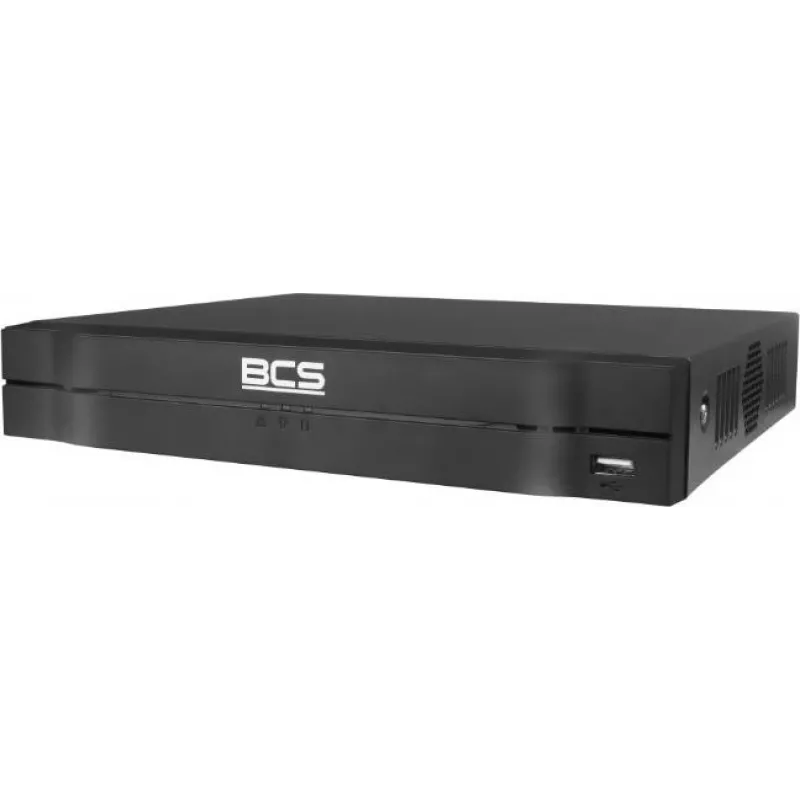

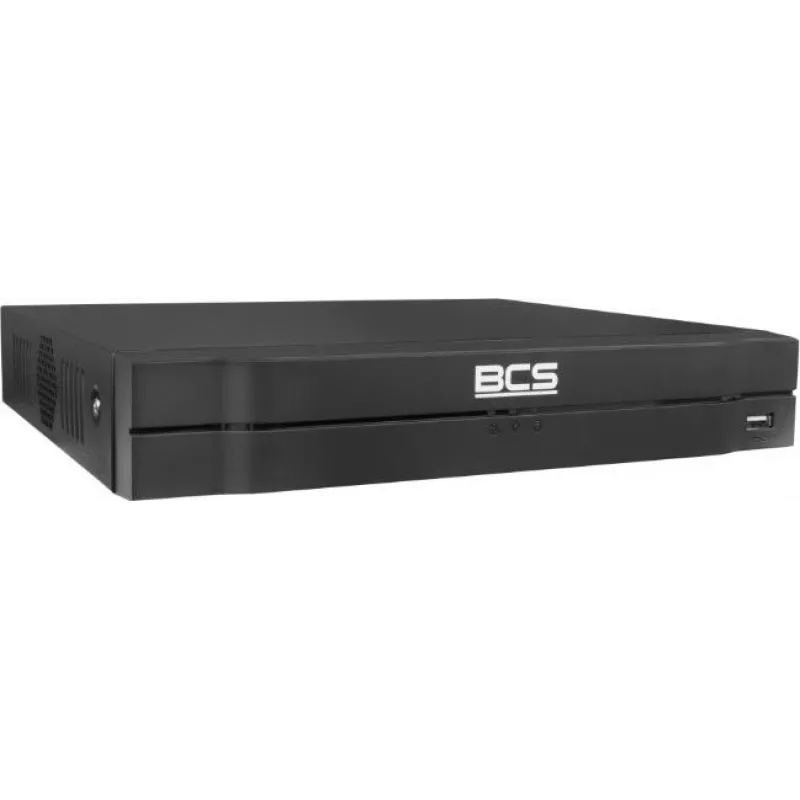

BCS-L-XVR0801-4KE(5) 8-kanavainen 4K Analog HD DVR -tallennin

The BCS-L-XVR0801-4KE(5) is a high-performance 8-channel analog HD DVR recorder that supports up to 8MP (4K) resolution. It combines analog and IP camera inputs for flexible surveillance solutions, featuring H.265+ compression for efficient storage and bandwidth usage. Ideal for small to medium-sized businesses and residential applications, this recorder offers advanced smart functions like tripwire, intrusion detection, and face detection.

Advantages

Supports up to 16 total channels (8 analog + 8 IP) for hybrid setups. 4K HDMI output ensures crisp video display. H.265+ compression reduces storage requirements by up to 50% compared to H.264. Smart IVS analytics enhance security with real-time alerts. Easy mobile access via iOS and Android apps.

Suitable for

• Retail stores and shops
• Office buildings
• Warehouses and logistics centers
• Residential properties
• Educational institutions

Key specifications

• Video Input: 8 BNC (HDCVI/AHD/HDTVI/CVBS) + 8 IP (up to 16 total)
• Max Analog Resolution: 8MP (4K) @ 7fps (4 channels), 5MP @ 12fps, 4MP @ 15fps, 1080P @ 25fps
• Max IP Resolution: 8MP (4K)
• Recording Resolution: 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1
• Video Compression: H.265+/H.265/H.264+/H.264
• Audio: 1 input / 1 output (RCA), two-way audio support
• Video Output: 1x HDMI (up to 3840x2160), 1x VGA
• HDD Support: 1x SATA, up to 10TB
• Network: 1x RJ-45 (10/100 Mbps)
• USB: 2x USB 2.0
• Smart Functions: Tripwire, Intrusion, Object Abandoned/Missing, Face Detection
• Simultaneous Playback: 8 channels
• Power Supply: DC12V/2A
• Operating Temperature: -10°C to +55°C

Recommendations

For optimal performance, pair with BCS 4K analog cameras and use high-quality BNC cables. Ensure the HDD is compatible and properly installed. Regular firmware updates are recommended to maintain security and functionality.
