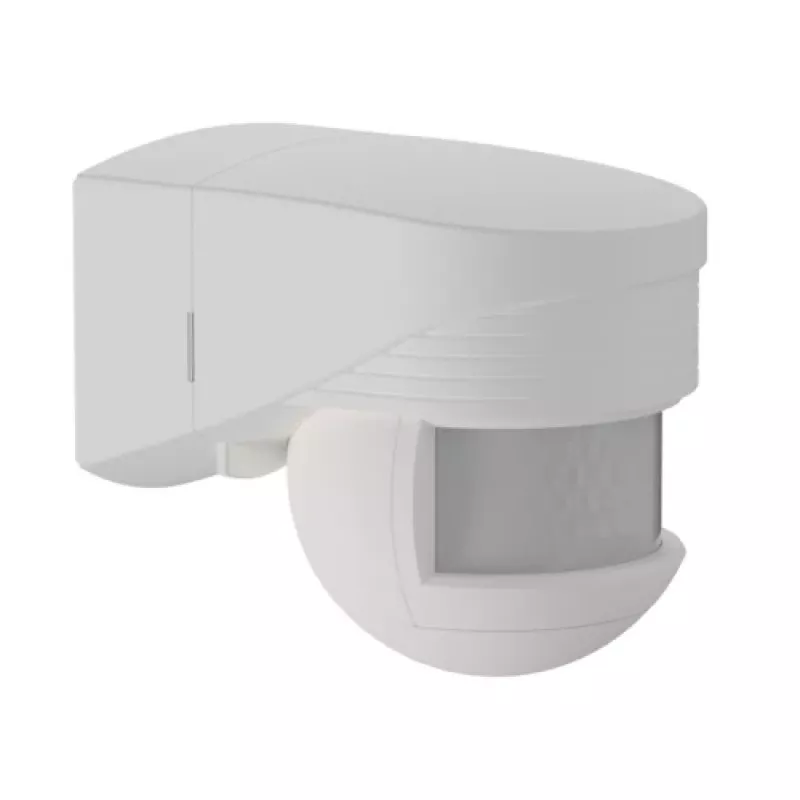

BEG BRCK LUXOMAT LC-Click 200 valkoinen liiketunnistin 91102

Managing lighting in large or awkward spaces can be a constant drain on energy and attention. The BEG BRCK LUXOMAT LC-Click 200 solves this by automatically switching lights on when movement is detected and off after a set delay, combining convenience with significant energy savings. Its wide 200° detection angle and 12 m tangential range make it ideal for corridors, stairwells, garages, and outdoor areas where a broad coverage is essential.

Who is it for

This motion detector is perfect for homeowners, facility managers, and electricians who need a reliable, weather-resistant sensor for wall mounting. Whether you are upgrading an existing lighting system or installing new, the LC-Click 200 offers professional-grade performance in a discreet white housing.

Main features

• Passive infrared (PIR) sensor with a 200° detection angle for wide coverage
• Adjustable time delay from 10 seconds to 30 minutes, plus pulse mode for staircase lighting
• Brightness threshold adjustable from 10 to 2000 lux, so lights only activate when needed
• High switching capacity: up to 2300 W for incandescent/halogen, 500 W for LED, and 1200 VA for fluorescent loads
• IP54 protection against dust and water splashes, suitable for indoor and sheltered outdoor use
• Self-learning brightness function and test mode for easy commissioning
• UV-stabilized polycarbonate housing for long-lasting durability

Specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 200°
• Detection range (tangential): 12 m
• Recommended mounting height: 1.7 - 2.5 m
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity incandescent/halogen: 2300 W
• Max. switching capacity LED: 500 W
• Max. switching capacity fluorescent (uncompensated): 1200 VA
• Time delay setting: 10 sec - 30 min, pulse
• Brightness threshold setting: 10 - 2000 lux
• Protection class: IP54
• Colour: White
• Material: UV-stabilized polycarbonate
• Power consumption (standby): approx. 0.5 W
• Operating temperature range: -25 °C to +50 °C
• Mounting type: Wall
• Number of switching channels: 1 (light)
• Special features: Test mode, self-learning function for brightness

Tips

For optimal performance, mount the LC-Click 200 at a height of 1.7 to 2.5 metres, avoiding direct sunlight and heat sources that could cause false triggers. Use the test mode during installation to verify detection coverage, then adjust the brightness threshold to match ambient light conditions. The pulse mode is ideal for staircase lighting where a fixed on-time is required.
