BEMKO hermeettinen kaapeliliitin IP68 5-napainen

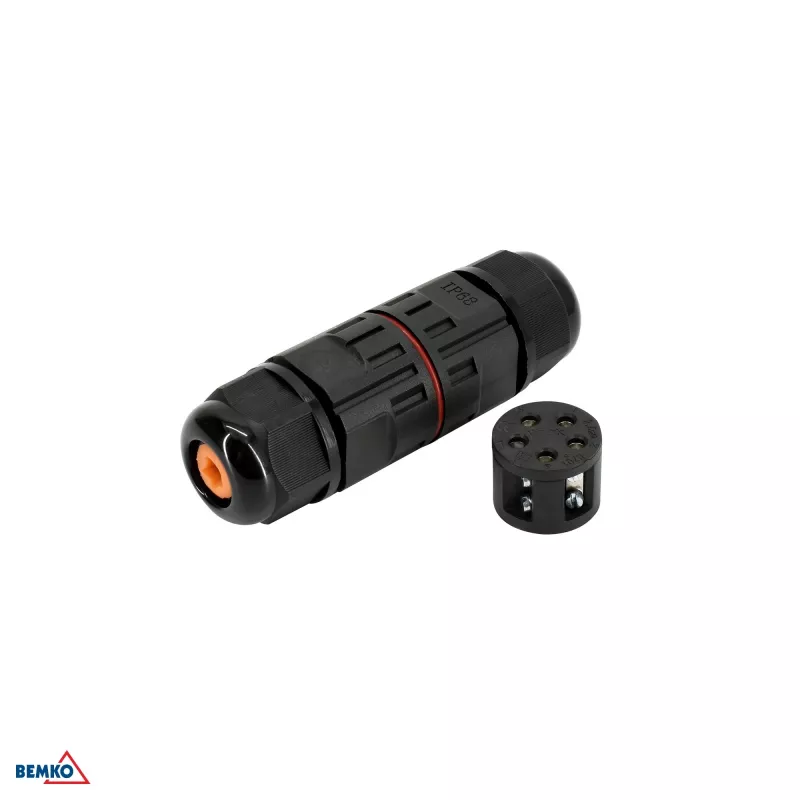

The BEMKO E08-ZK05-IP68 is a high-quality hermetic cable connector designed for reliable outdoor, underground, industrial, marine, and LED lighting applications. With an IP68 protection rating, it offers excellent resistance against dust and water ingress, ensuring long-lasting performance in harsh environments.

Advantages

This 5-pole inline cable connector features a robust PA66 (Nylon) housing with silicone rubber sealing, providing superior durability and weather resistance. The screw terminals ensure secure and easy wiring, while the nickel-plated copper contacts guarantee excellent conductivity and corrosion resistance. The connector is UV-resistant and certified CE and RoHS, making it a safe and reliable choice for demanding installations.

Suitable for

• Outdoor lighting systems
• Underground cable joints
• Industrial machinery connections
• Marine and boat wiring
• LED lighting installations

Key specifications

• Protection Rating: IP68
• Number of Poles: 5-pole
• Rated Voltage: 450V AC
• Rated Current: 24A
• Cable Outer Diameter Compatibility: 4 - 12 mm
• Wire Cross-Section Compatibility: 0.5 - 2.5 mm²
• Connector Type: Inline Cable Connector
• Terminal Type: Screw Terminal
• Housing Material: PA66 (Nylon)
• Contact Material: Copper, Nickel-plated
• Sealing Material: Silicone Rubber
• Operating Temperature Range: -40°C to +105°C
• Flammability Rating: UL94-V0
• Insulation Resistance: >500 MΩ
• Dielectric Strength: 2000V
• UV Resistance: Yes
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure the cable outer diameter is within the specified range (4-12 mm) and use appropriate wire cross-sections (0.5-2.5 mm²). This connector is ideal for permanent outdoor installations where moisture and dust protection are critical.
