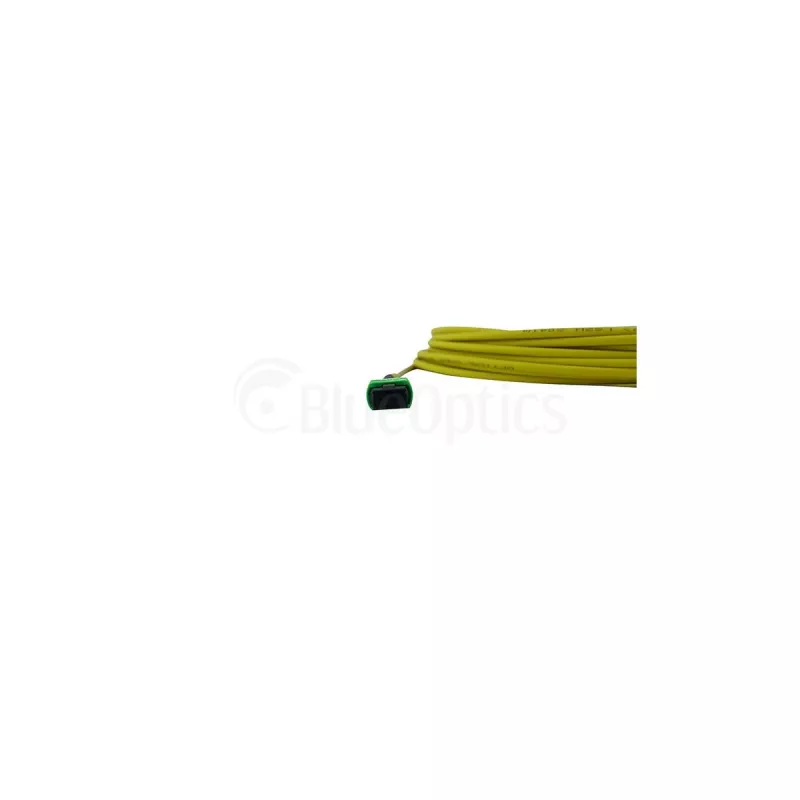

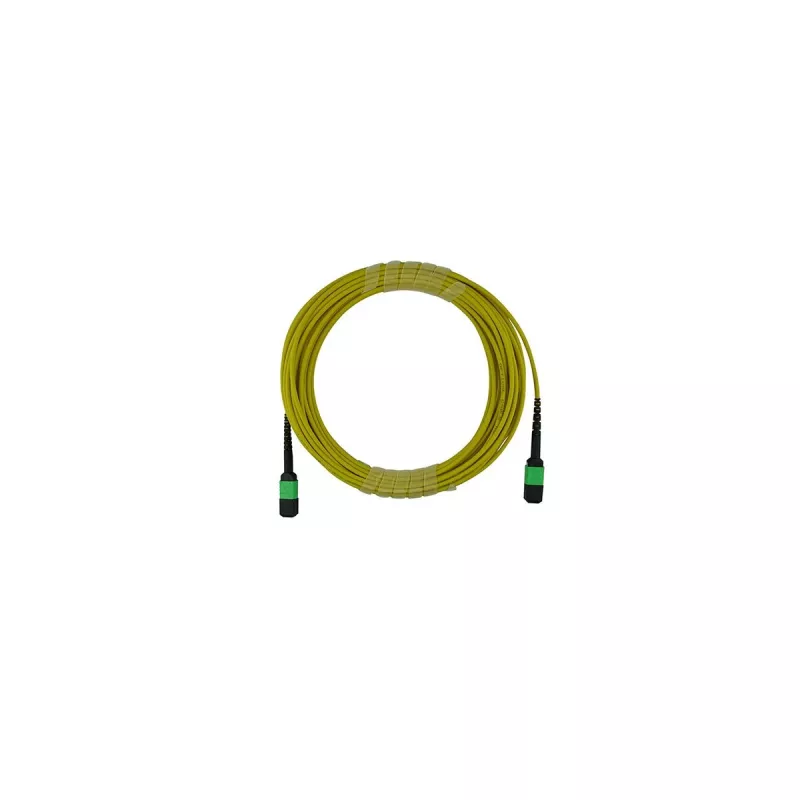

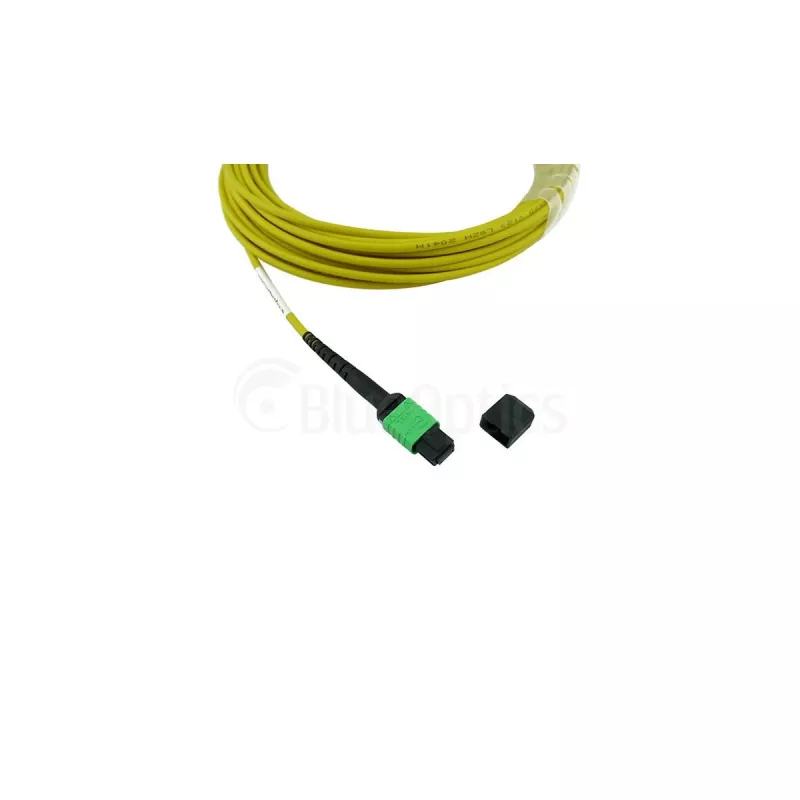

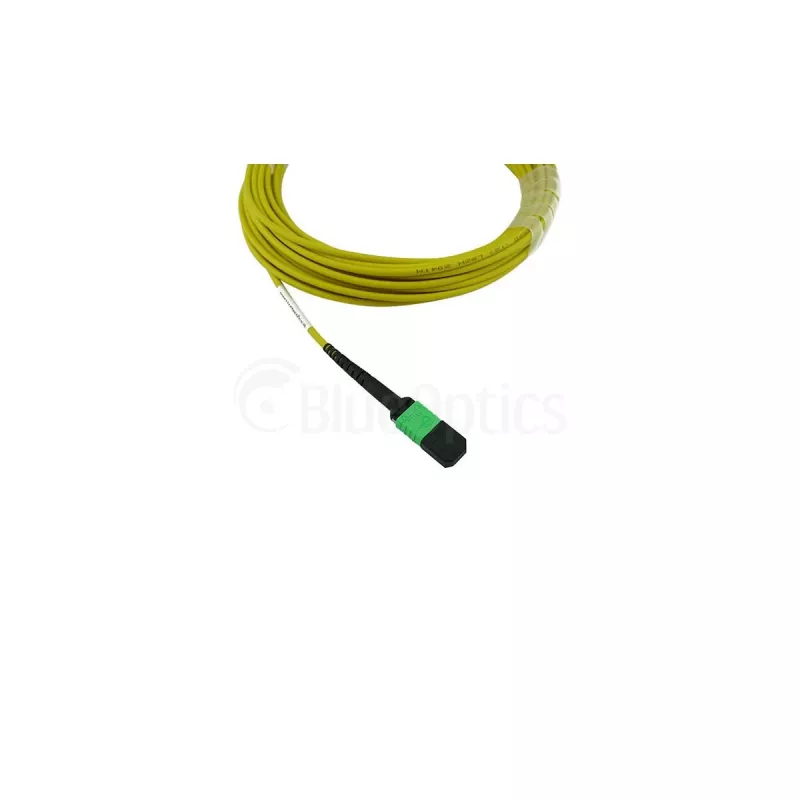

BlueOptics Cisco CB-M12-M12-SMF30M MPO–MPO yksimuotokuitu-liitäntäkaapeli 30m

The BlueOptics Cisco CB-M12-M12-SMF30M is a high-performance MPO to MPO single-mode fiber optic patch cable, designed for reliable and high-speed data transmission in enterprise networks. With a length of 30 meters and 12 fibers, this cable is optimized for Cisco networking equipment and features bend-insensitive G.657.A1 fiber for easy installation in tight spaces.

Advantages

This cable offers low insertion loss (≤0.35 dB) and high return loss (≥60 dB) with APC polish, ensuring excellent signal integrity. The LSZH jacket provides safety in plenum areas, and the yellow color allows for easy identification. It is RoHS and CE compliant, meeting environmental and safety standards.

Suitable for

• Data center interconnects
• High-speed network backbones
• Telecommunications infrastructure
• Cisco networking equipment

Key specifications

• Connector Type: MPO to MPO
• Fiber Mode: Single-Mode (SMF)
• Fiber Standard: ITU-T G.657.A1
• Number of Fibers: 12
• Cable Length: 30 meters
• Jacket Material: LSZH
• Jacket Color: Yellow
• Insertion Loss: ≤0.35 dB
• Return Loss: ≥60 dB (APC)
• Polish Type: APC
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Cable Diameter: 3.0 mm
• Minimum Bend Radius: 10 mm
• Compliance: RoHS, CE

Recommendations

For optimal performance, use with compatible MPO transceivers and ensure proper handling to maintain bend radius. This cable is ideal for high-density fiber environments.
