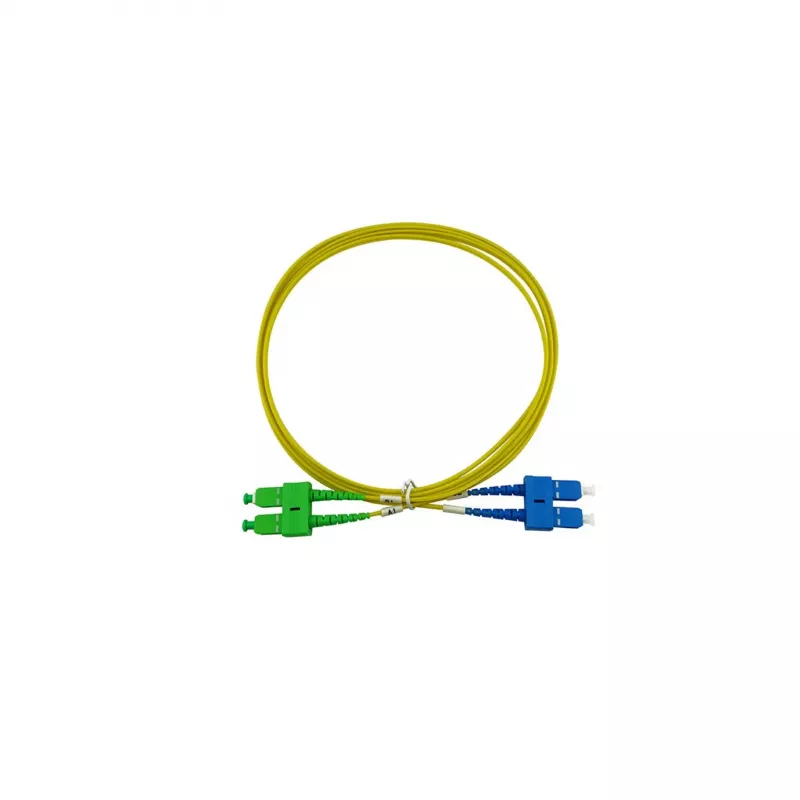

BlueOptics Duplex kuitu-patchkaapeli SC-UPC/SC-APC Singlemode 0,5 m

The BlueOptics Duplex Fibre Optic Patch Cable SC-UPC/SC-APC Singlemode 0.5 Metres is a high-performance fibre optic cable designed for reliable data transmission in indoor environments. With a length of 0.5 metres, it is ideal for short-distance connections in data centres, LAN networks, and FTTx applications.

Advantages

This cable features SC-UPC to SC-APC connectors, ensuring low insertion loss and high return loss for optimal signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, making it suitable for use in confined spaces. Its duplex configuration allows for simultaneous bidirectional communication.

Suitable for

• Data centre patching
• Local Area Networks (LAN)
• Fibre to the x (FTTx) deployments
• Telecommunications rooms

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fibre Mode: Singlemode
• Fibre Class: OS2 (G.657.A1/A2)
• Connector A: SC-UPC
• Connector B: SC-APC
• Cable Configuration: Duplex
• Cable Length: 0.5 Metres
• Jacket Material: LSZH
• Jacket Colour: Yellow
• Core/Cladding Diameter: 9/125 µm
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (UPC): ≥ 50 dB
• Return Loss (APC): ≥ 60 dB
• Attenuation (1310nm): ≤ 0.35 dB/km
• Attenuation (1550nm): ≤ 0.25 dB/km
• Operating Temperature: -20°C to +70°C
• Standards Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC interfaces and is ideal for high-speed data networks requiring low loss.
