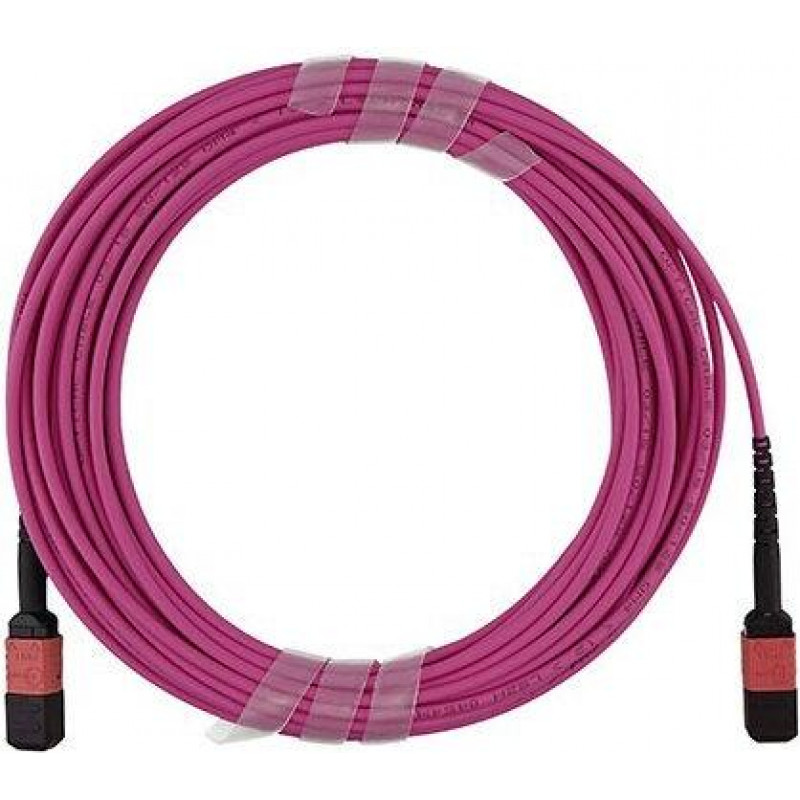

BlueOptics GRD3PBE yhteensopiva MPO-MPO monimuotokuitu OM4 patch-kaapeli 3 metriä

High-density fiber networks demand reliable, low-loss connectivity that can handle ever-increasing bandwidth. The BlueOptics GRD3PBE compatible MPO-MPO multimode OM4 patch cable solves this challenge by providing a robust 12-fiber link optimized for 40G and 100G Ethernet applications. With its 3-meter length and premium OM4 construction, this cable is ideal for patching between MPO-based cassettes, panels, and active equipment in data centers and enterprise backbones.

Who is it for

This patch cable is built for network engineers, data center technicians, and IT professionals who manage high-speed fiber infrastructure. It's perfect for environments where space is at a premium and performance cannot be compromised—think server rooms, colocation facilities, and campus networks migrating to parallel optics.

Main features

• 12-fiber MPO (Male) to MPO (Male) connectors with Type B polarity for straight-through mapping
• OM4 multimode fiber supports 40/100G Ethernet up to 150 meters at 850nm
• Low insertion loss ≤ 0.35 dB and return loss ≥ 20 dB ensure signal integrity
• LSZH (Low Smoke Zero Halogen) aqua jacket for safety in confined spaces
• Bend-insensitive fiber with 7.5 mm minimum bend radius for easy routing
• Compliant with TIA/EIA-568-C.3 and IEC-61754-7 standards

Specifications

• Cable length: 3 meters (9.84 ft)
• Fiber type: Multimode OM4, 50/125 µm core/cladding
• Connectors: MPO (Male) to MPO (Male), 12 fibers
• Polarity: Type B (Standard)
• Jacket material: LSZH, aqua color
• Insertion loss: ≤ 0.35 dB typical
• Return loss: ≥ 20 dB typical
• Effective modal bandwidth: 4700 MHz*km @ 850nm, 500 MHz*km @ 1300nm
• Operating temperature: -10°C to +70°C
• Storage temperature: -20°C to +80°C
• Minimum bend radius: 7.5 mm
• Compliance: RoHS, REACH, TIA/EIA-568-C.3, IEC-61754-7

Tips

For best performance, always inspect and clean MPO connectors before mating. Use a polarity tester to verify Type B orientation if integrating into an existing network. When routing, avoid exceeding the minimum bend radius to prevent signal degradation. This cable is compatible with any standard MPO interface, but verify equipment specifications for optimal link budgets.
