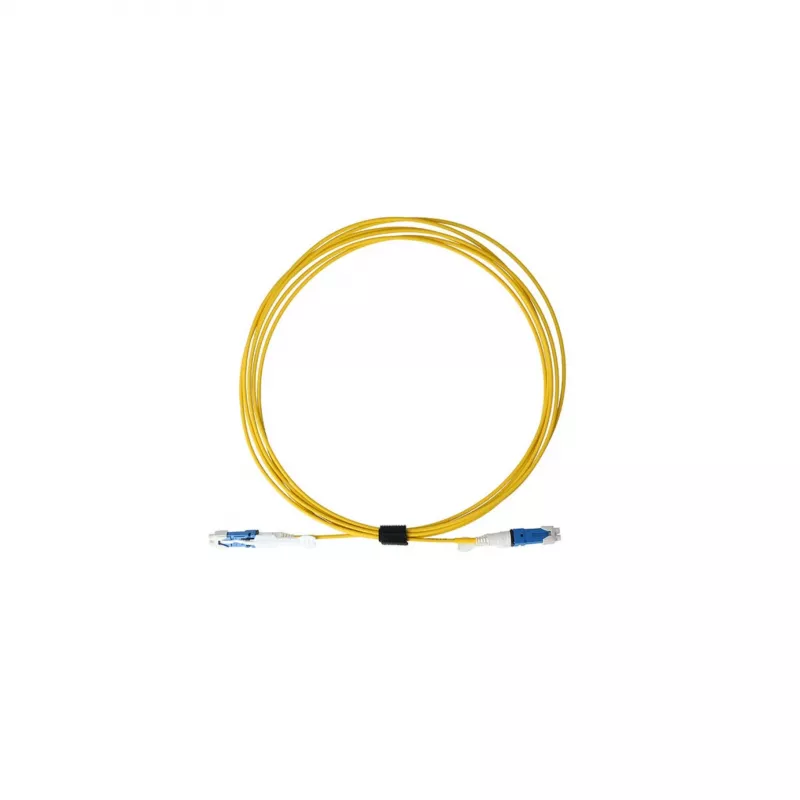

BLUEOPTICS SFP9191BU3MK kuitu-patch-kaapeli 3 m CS LC OS2 keltainen

The BLUEOPTICS SFP9191BU3MK is a high-performance duplex fiber optic patch cable designed for reliable single-mode transmission. With CS to LC connectors and OS2 fiber type, this 3-meter yellow cable ensures low insertion loss and high return loss, making it ideal for data center and enterprise network applications.

Advantages

This cable offers exceptional signal integrity with insertion loss ≤0.2 dB and return loss ≥50 dB (UPC). The LSZH jacket provides safety in enclosed spaces, while the 3.0 mm diameter ensures flexibility and durability. Compliant with RoHS and CE standards.

Suitable for

• Data center interconnects
• Enterprise network patching
• Telecommunications infrastructure
• Fiber-to-the-desk applications

Key specifications

• Connector 1: CS
• Connector 2: LC
• Fiber Mode: Single-Mode (OS2)
• Cable Length: 3 m
• Jacket Color: Yellow
• Fiber Count: Duplex
• Insertion Loss: ≤0.2 dB
• Return Loss: ≥50 dB (UPC)
• Jacket Material: LSZH
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to 70°C
• Minimum Bend Radius: 10 mm (Dynamic), 30 mm (Static)
• Attenuation at 1310nm: ≤0.35 dB/km
• Attenuation at 1550nm: ≤0.25 dB/km
• Connector Polish: UPC
• Standards: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, use with compatible CS and LC single-mode transceivers. Ensure proper cable management to maintain bend radius specifications.
