BlueOptics simplex kuitupatchkaapeli, LC-UPC - LC-APC, yksimuoto OS2, 50 m, keltainen

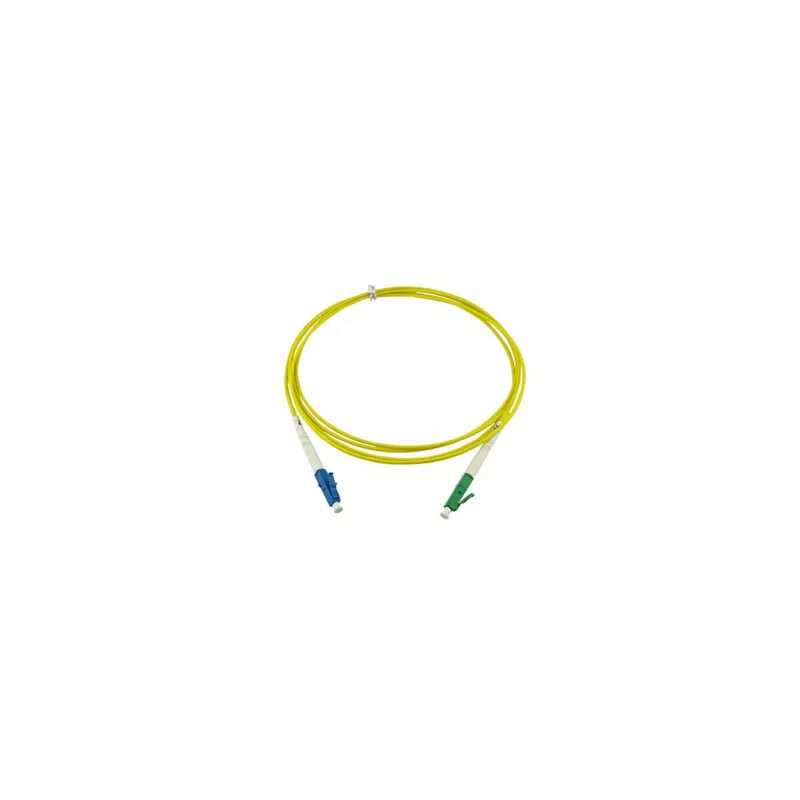

The BlueOptics SFP2121BU50MS is a high-quality simplex fibre optic patch cable designed for reliable single-mode connections. Featuring LC-UPC (blue boot) to LC-APC (green boot) connectors, this 50-metre cable ensures low insertion loss and high return loss, making it ideal for FTTH, telecommunications, and data centre applications. The yellow LSZH jacket provides durability and safety in indoor environments.

Advantages

Low insertion loss (<0.3 dB) and high return loss (UPC >50 dB, APC >60 dB) ensure excellent signal integrity. The LSZH jacket reduces toxic fumes in case of fire, enhancing safety. Simplex design allows for easy point-to-point connections.

Suitable for

• Fibre-to-the-Home (FTTH) installations
• Telecommunications networks
• Data centre patching
• LAN and WAN connections

Key specifications

• Connector A: LC-UPC (blue boot)
• Connector B: LC-APC (green boot)
• Fibre mode: Single Mode OS2
• Core/Cladding: 9/125 µm
• Cable length: 50 metres
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable diameter: 2.0 mm
• Ferrule material: Zirconia Ceramic
• Operating temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate patch panels and splice trays for organised cabling.
