BlueOptics simplex kuitupatchkaapeli SC-UPC/SC-APC yksimuoto 5 metriä

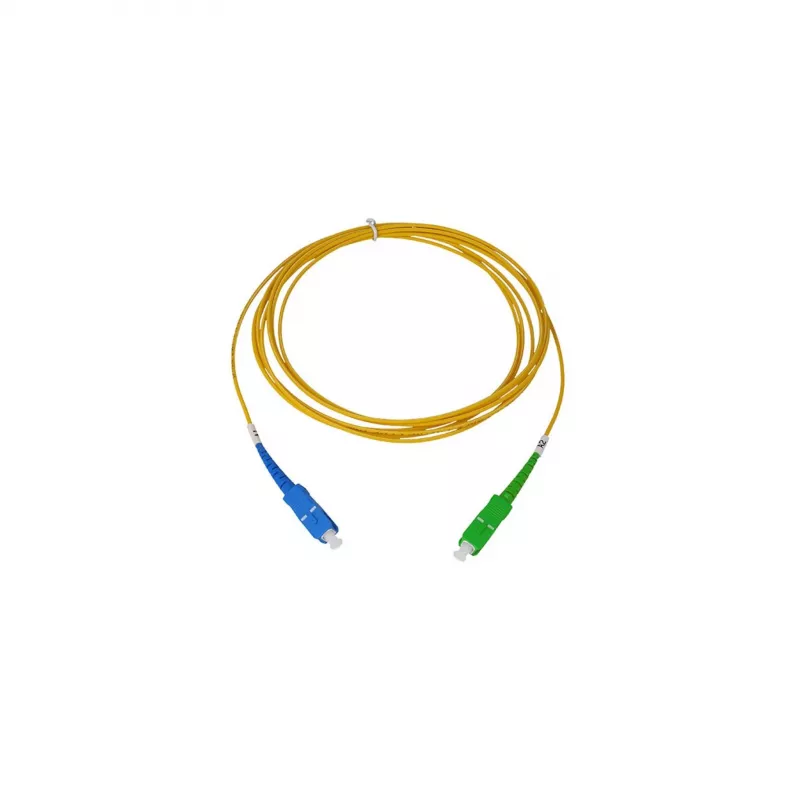

The BlueOptics Simplex Fibre Optic Patch Cable SC-UPC/SC-APC Singlemode 5 Metres is a high-performance fibre optic cable designed for reliable data transmission in demanding network environments. Featuring a simplex design with SC/UPC to SC/APC connectors, this cable ensures low insertion loss and high return loss, making it ideal for applications requiring minimal signal reflection.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss ≤0.3 dB and return loss ≥50 dB (SC/UPC) and ≥60 dB (SC/APC). The LSZH (Low Smoke Zero Halogen) jacket provides safety in enclosed spaces, while the yellow colour ensures easy identification for singlemode fibre. The 2.0 mm cable diameter and minimum bend radius of 20 mm allow for flexible installation without compromising performance.

Suitable for

• Data Centers
• FTTx (Fibre to the x) networks
• Telecommunication Networks
• LAN/WAN infrastructure

Key specifications

• Cable Type: Simplex
• Fibre Type: Singlemode (OS2)
• Connector A: SC/UPC
• Connector B: SC/APC
• Cable Length: 5 Metres
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Cable Diameter: 2.0 mm
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (SC/UPC): ≥ 50 dB
• Return Loss (SC/APC): ≥ 60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Ferrule Material: Zirconia Ceramic
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 61754-4
• Minimum Bend Radius: 10D (20 mm)
• Wavelength: 1310nm / 1550nm

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC ports and is suitable for both indoor and protected outdoor applications. Pair with BlueOptics transceivers for guaranteed compatibility.
