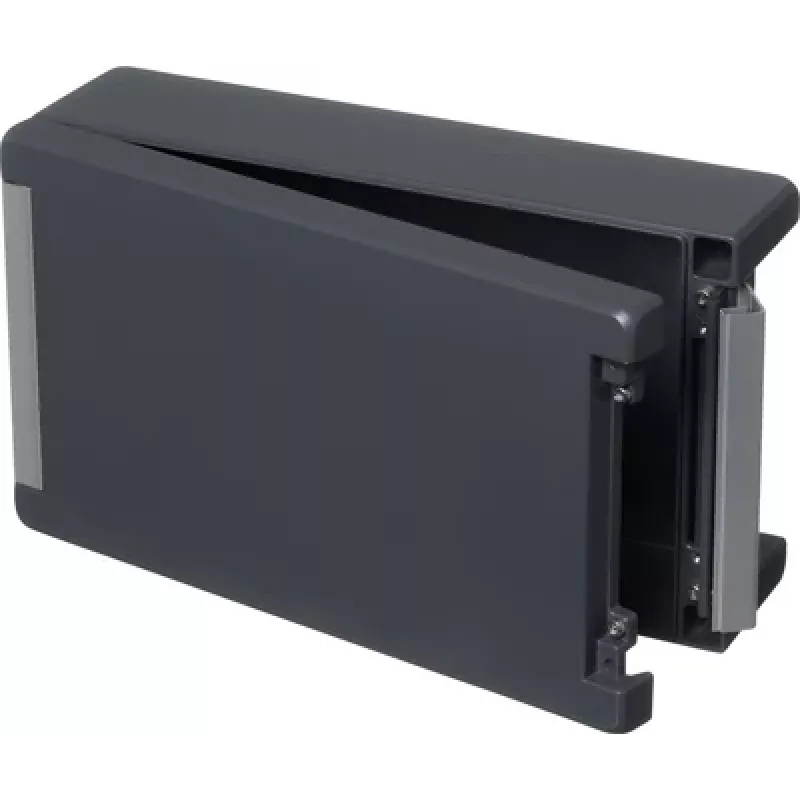

Bopla BA 281709-7024 yleiskotelo 299 x 173 x 90 alumiini grafiitinharmaa RAL 7024 00116334

The Bopla BA 281709-7024 stands out with its rugged die-cast aluminium construction and graphite grey powder-coated finish, offering a durable housing for electronics in demanding environments. Its generous internal space and IP66 protection make it a reliable choice for industrial applications where equipment must withstand dust and water.

Highlights

• Material: Aluminium
• Colour: Graphite Grey (RAL 7024)
• External dimensions: 299 x 173 x 90 mm
• Internal dimensions: 285 x 159 x 80 mm
• Protection class: IP66
• Wall thickness: 3 mm
• Lid type: Screwed lid
• Seal material: PUR (Polyurethane)
• Temperature range: -40 to +100 °C
• Surface finish: Powder-coated
• Mounting type: Wall mounting
• Number of lid screws: 6
• Lid screw type: M4

In daily use

This enclosure provides ample room for custom electronics, with internal dimensions of 285 x 159 x 80 mm allowing for flexible component layout. The screwed lid with PUR seal ensures a tight closure, maintaining the IP66 rating even in wet or dusty conditions. The powder-coated aluminium body resists corrosion and mechanical stress, suitable for both indoor and outdoor installations.

Full specifications

• Product type: Universal Enclosure
• Series: Bocube Aluminium
• External length: 299 mm
• External width: 173 mm
• External height: 90 mm
• Internal length: 285 mm
• Internal width: 159 mm
• Internal height: 80 mm
• Protection class (IP rating): IP66
• Wall thickness: 3 mm
• Lid type: Screwed Lid
• Seal material: PUR (Polyurethane)
• Temperature range: -40 to +100 °C
• Surface finish: Powder-coated
• Mounting type: Wall Mounting
• Number of lid screws: 6
• Lid screw type: M4

Final note

With its robust build and precise dimensions, the Bopla BA 281709-7024 is a dependable enclosure for professional electronics projects.
