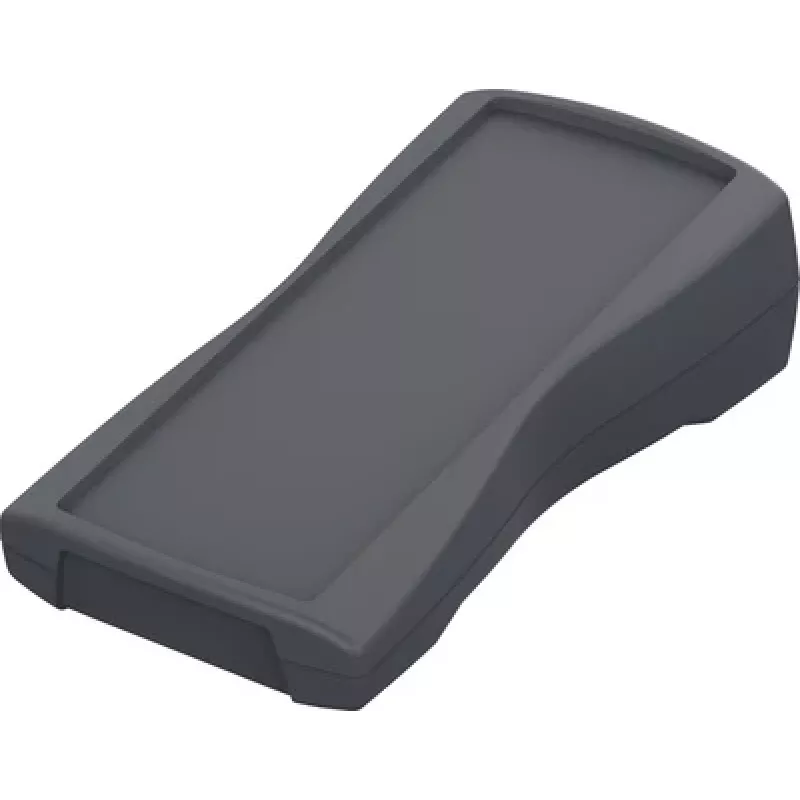

BOPLA BS 500 käsikotelo, 140,3 x 72,9 x 31,3 mm, tummanharmaa, IP40 82500124

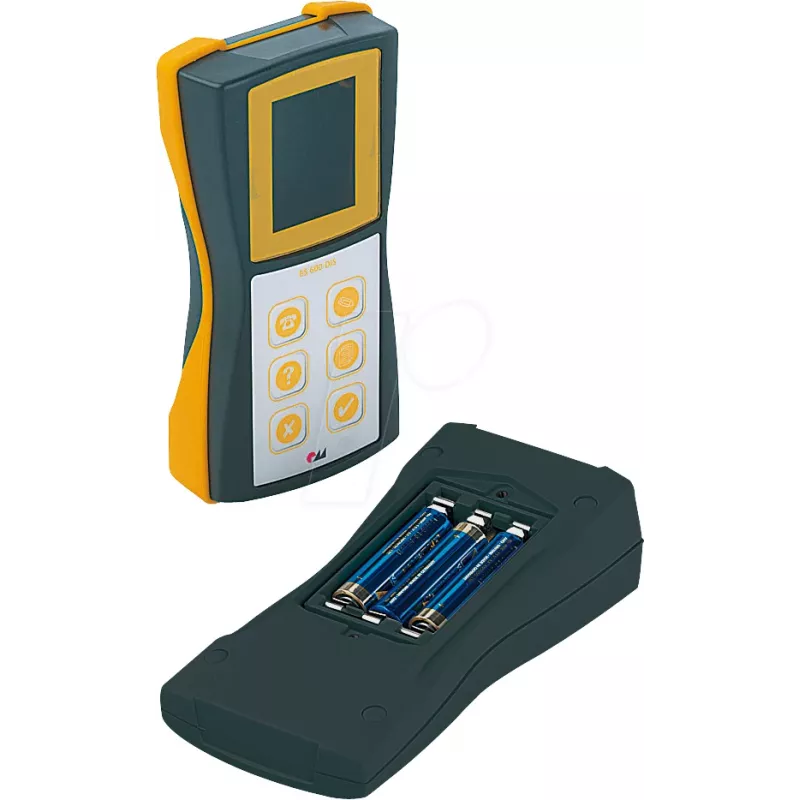

The BOPLA BS 500 is a handheld enclosure from the BS series, offering a practical housing for electronic projects. Its dark grey ABS body provides a sturdy shell with a recessed area for membrane keypads or displays, making it suitable for remote controls, measurement devices, and other portable electronics.

Highlights

• External dimensions: 140.3 mm length, 72.9 mm width, 31.3 mm height
• Material: ABS (UL 94 HB flammability rating)
• Colour: Dark grey (RAL 7016)
• IP40 ingress protection
• Two-part construction with screwed lid
• Internal PCB mounting bosses
• Recessed area for membrane keypads or displays
• Operating temperature: -20 °C to +80 °C

In daily use

The BS 500 provides a comfortable handheld form factor for custom electronics. The screwed lid ensures secure closure, while the internal bosses simplify PCB mounting. The recessed top area allows integration of user interface components, and the ABS material offers durability for everyday handling.

Full specifications

• Product type: Handheld enclosure
• Series: BS
• Material: ABS
• Colour: Dark grey (RAL 7016)
• IP rating: IP40
• External dimensions: 140.3 x 72.9 x 31.3 mm
• Flammability rating: UL 94 HB
• Operating temperature: -20 °C to +80 °C
• Number of parts: 2 (top and base)
• Lid fastening: Screwed
• Internal features: PCB mounting bosses
• Recessed area: Yes, for membrane keypads or displays

Final note

A versatile dark grey enclosure for handheld electronic projects, offering practical features and reliable protection.
