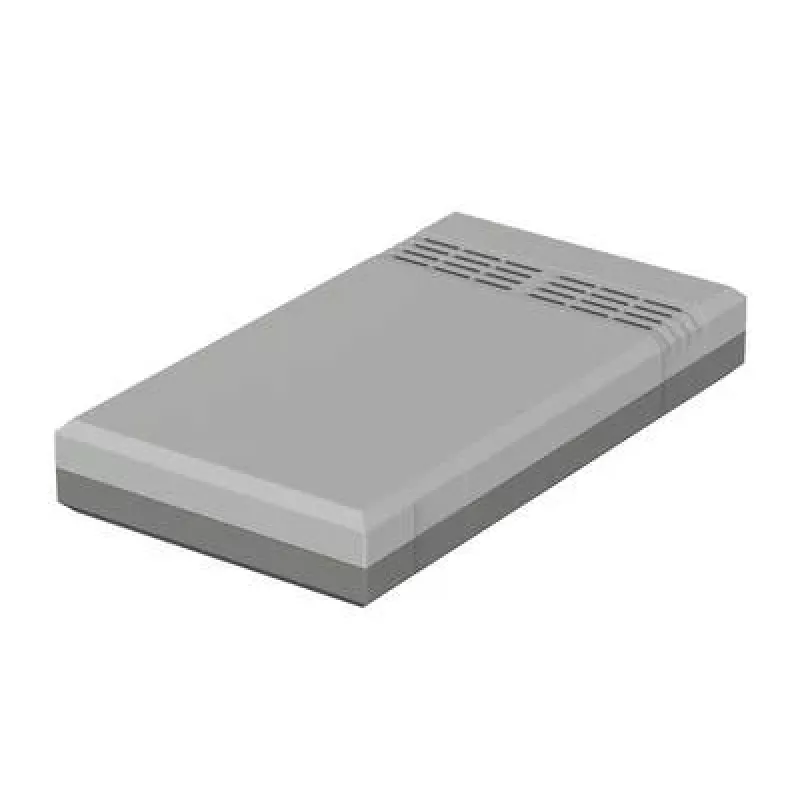

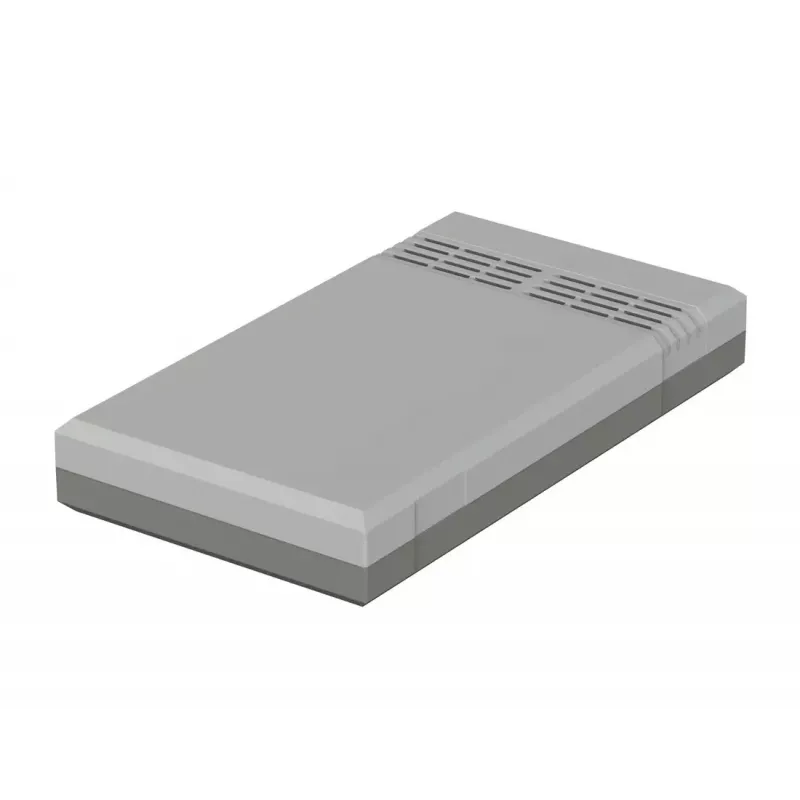

BOPLA EG 2030 L pöytäkotelo 200 x 112 x 30 mm polystyreeni vaaleanharmaa RAL 7035 32203012

For electronics developers and hobbyists building compact table-top devices, the BOPLA EG 2030 L offers a robust polystyrene enclosure in light grey. Its 200 x 112 x 30 mm footprint accommodates small PCBs and user interfaces, with a recessed lid area for membrane keypads or displays.

Key specifications

• Material: Polystyrene (PS)
• Colour: Light grey (RAL 7035)
• External dimensions: 200 x 112 x 30 mm
• Protection class: IP40
• Mounting type: Table-top
• Lid fastening: Screw-on
• Internal mounting: Screw bosses for PCBs
• Recessed area: Yes, for membrane keypads/displays
• Operating temperature: -20 to +60 °C
• Flammability rating: UL 94 HB
• Number of components: 2 (base, lid)
• Surface finish: Matte

Why choose it

Polystyrene provides a lightweight yet sturdy housing, and the recessed lid simplifies integrating custom control panels. The screw-on lid ensures secure closure for repeated access.

Ideal use cases

• Desktop controllers and interface modules
• Test and measurement instruments
• Prototyping and small-series production

Good to know

The enclosure is supplied as a base and lid, with screw bosses for PCB mounting. No additional accessories are included.
