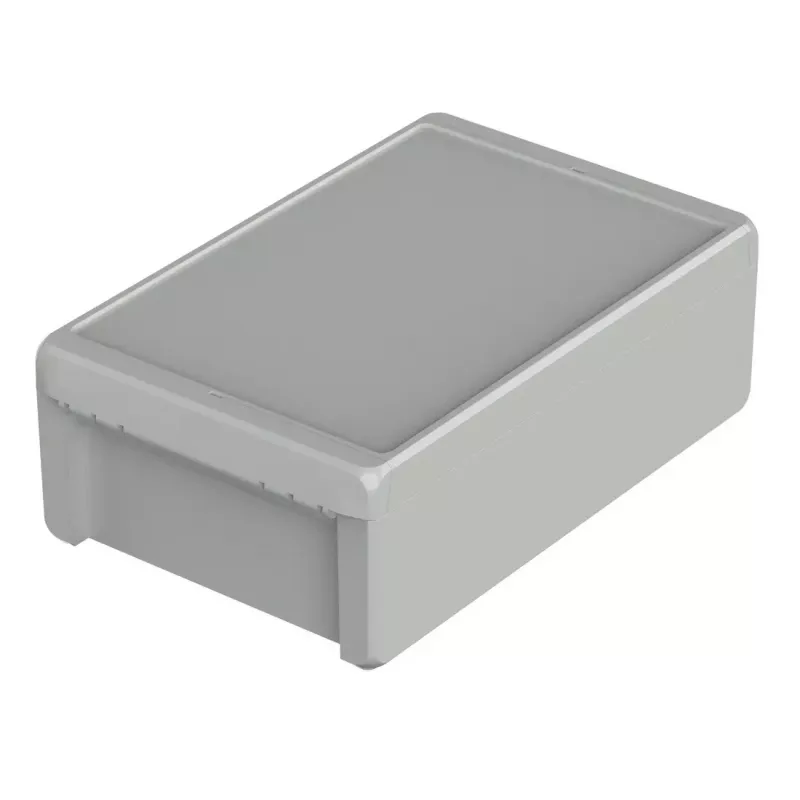

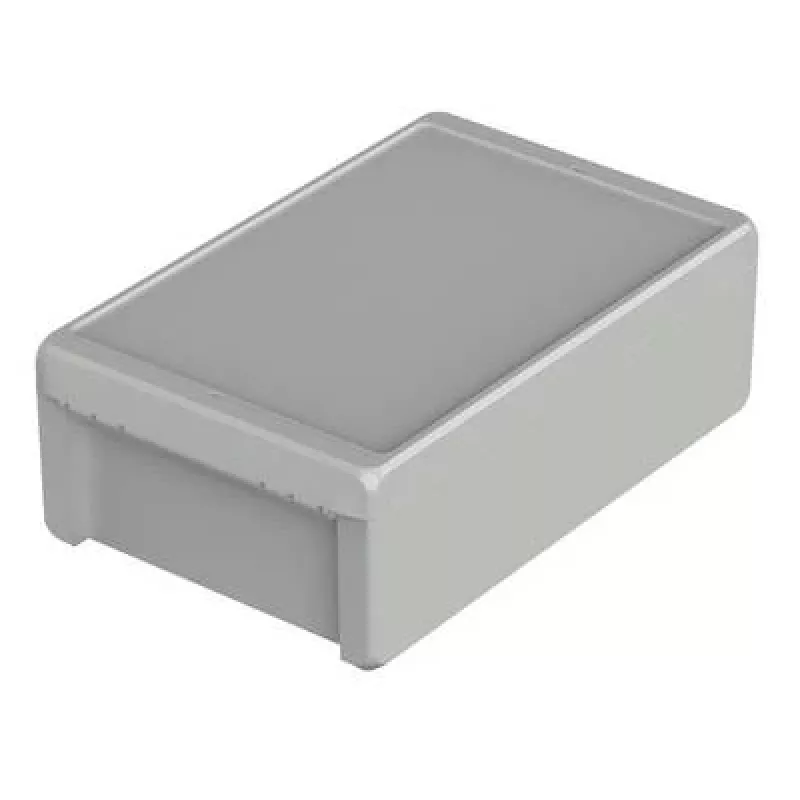

BOPLA EUROMAS II seinäkotelo, polykarbonaatti, vaaleanharmaa (RAL 7035), 170 x 271 x 90 mm 96016335

Wall-mount enclosure made of polycarbonate in light grey (RAL 7035), offering a robust housing for electrical and electronic components. Its polycarbonate construction provides good impact resistance and UV stability, making it suitable for demanding environments.

Advantages

Polycarbonate material ensures high impact resistance (IK07) and good chemical resistance to oils and greases. The enclosure is halogen-free and has a flammability rating of UL 94 V-0, enhancing safety in fire-sensitive applications. Integrated mounting bosses simplify internal component installation.

Suitable for

• Industrial control systems
• Outdoor electrical installations
• Automation and sensor housings
• Junction boxes in harsh environments

Key specifications

• External dimensions: 170 mm width, 271 mm height, 90 mm depth
• Material: Polycarbonate, light grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK07
• Operating temperature: -40°C to +80°C
• Flammability rating: UL 94 V-0
• Lid fastening: Stainless steel screws
• Gasket material: Polyurethane (PU) foam

Recommendations

Ideal for applications requiring a durable, UV-stable enclosure with high protection against dust and water jets.
