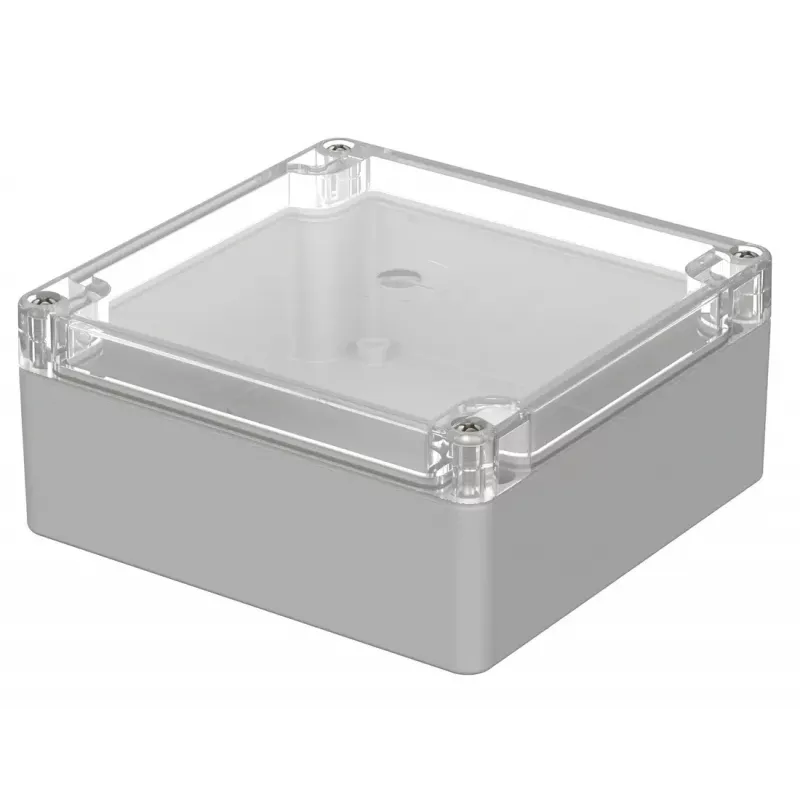

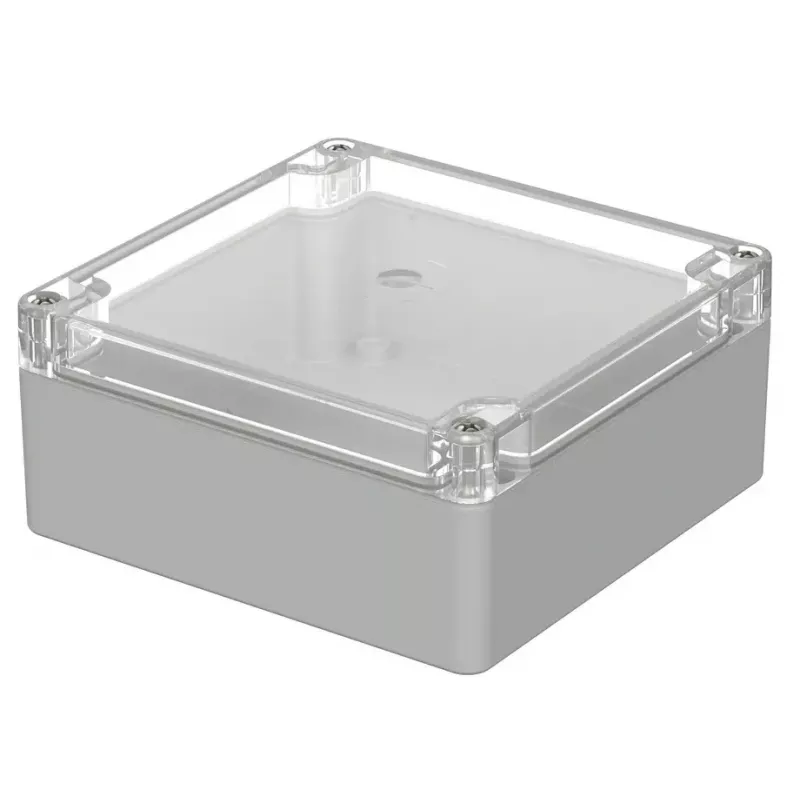

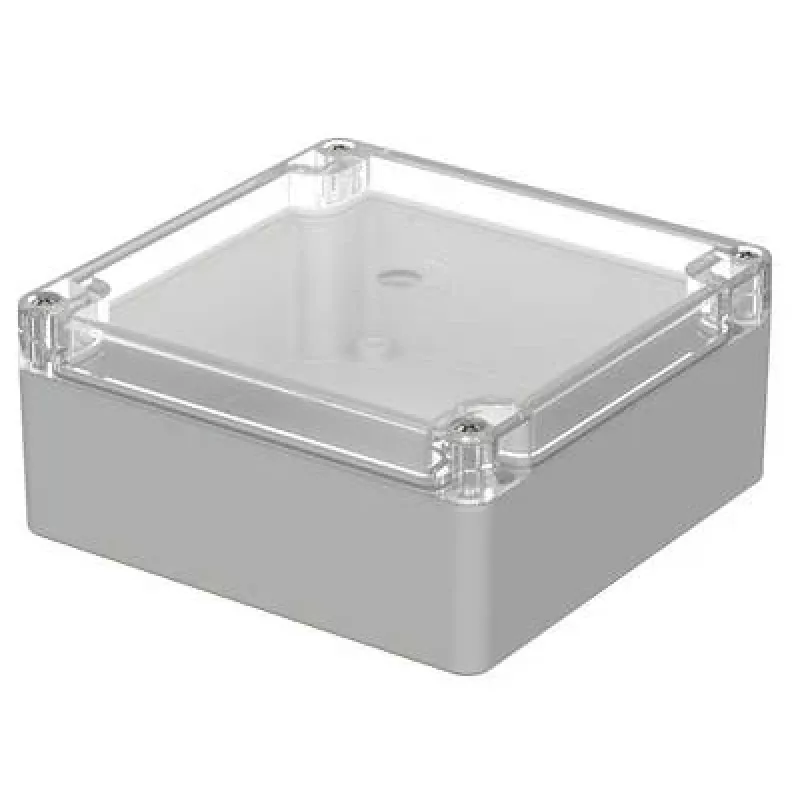

Bopla EUROMAS M 217 G yleiskotelo 122 x 120 x 55 mm polykarbonaatti vaaleanharmaa IP65 02217200

With an IP65 ingress protection rating, this Bopla EUROMAS M 217 G universal enclosure is built to shield electronics from dust and low-pressure water jets. Its polycarbonate body in light grey (RAL 7035) combines impact resistance (IK07) with a wide operating range from -40 °C to +80 °C.

Overview

The EUROMAS M series offers a robust housing solution for industrial and outdoor applications. Measuring 122 x 120 x 55 mm, this enclosure provides ample space for PCBs, terminals, and other components. The polycarbonate material is halogen-free and offers good UV resistance, ensuring long-term durability even in exposed environments.

What stands out

• IP65 protection against dust and water jets
• Impact resistance rated IK07
• Wide temperature range: -40 °C to +80 °C
• Halogen-free polycarbonate with good UV resistance
• Captive stainless steel lid screws for secure closure

Technical details

• External dimensions: 122 mm (L) x 120 mm (W) x 55 mm (H)
• Material: Polycarbonate (PC), light grey RAL 7035
• Flammability rating: UL 94 V-2
• Gasket material: Polyurethane (PU) foam
• Mounting: Wall mountable, internal mounting bosses
• Series: EUROMAS M

Our verdict

A dependable universal enclosure for demanding environments, offering a balance of protection, temperature resilience, and chemical resistance in a compact footprint.
