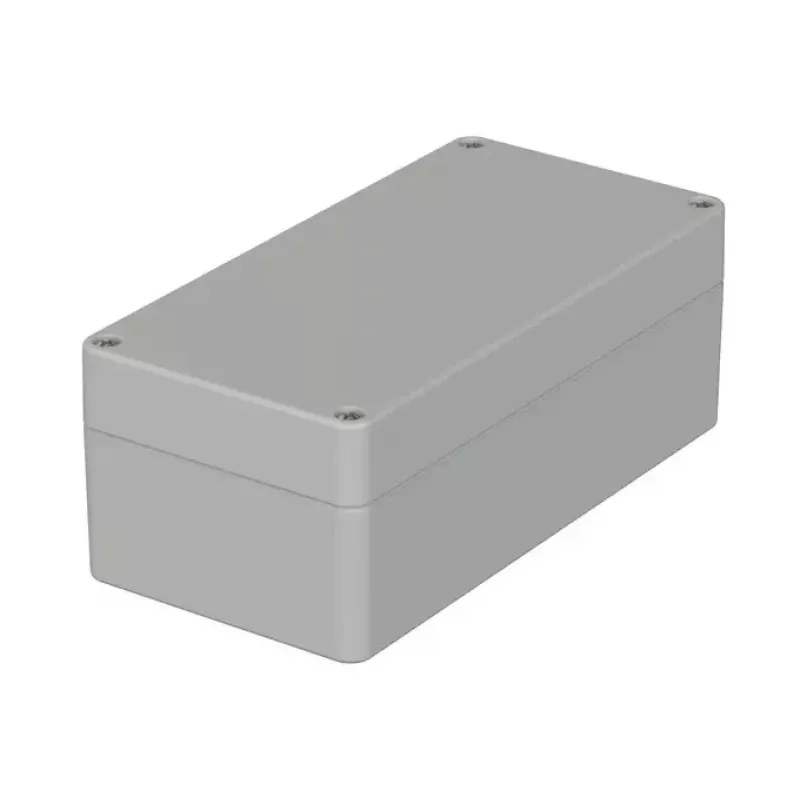

Bopla Euromas M 219 yleiskotelo 160 x 80 x 60 mm polykarbonaatti vaaleanharmaa 02219000

For control and automation engineers building compact wall-mounted systems, the Bopla Euromas M 219 provides a robust, light grey polycarbonate housing with external dimensions of 160 x 80 x 60 mm. The enclosure accepts internal mounting bosses for PCBs or mounting plates, and the opaque lid is secured with four stainless steel screws.

Key specifications

• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• External dimensions: 160 mm (L) x 80 mm (W) x 60 mm (H)
• Protection class: IP65
• Impact resistance: IK07
• Operating temperature: -40 °C to +80 °C
• Flammability rating: UL 94 V-2
• Lid fastening: Stainless steel screws (4 pcs)
• Gasket material: Polyurethane (PUR)
• Halogen-free: Yes
• RoHS compliant: Yes

Why choose it

The Euromas M 219 combines a wide operating temperature range with high impact resistance, making it suitable for demanding industrial environments. The polycarbonate material is halogen-free, and the polyurethane gasket ensures a reliable seal for IP65 protection.

Ideal use cases

• Housing for control electronics in factory automation
• Wall-mounted sensor or actuator enclosures
• Junction boxes in outdoor or washdown areas

Good to know

The enclosure is part of the Euromas series and can be mounted on walls. Internal mounting bosses allow direct attachment of PCBs or mounting plates without additional drilling.
