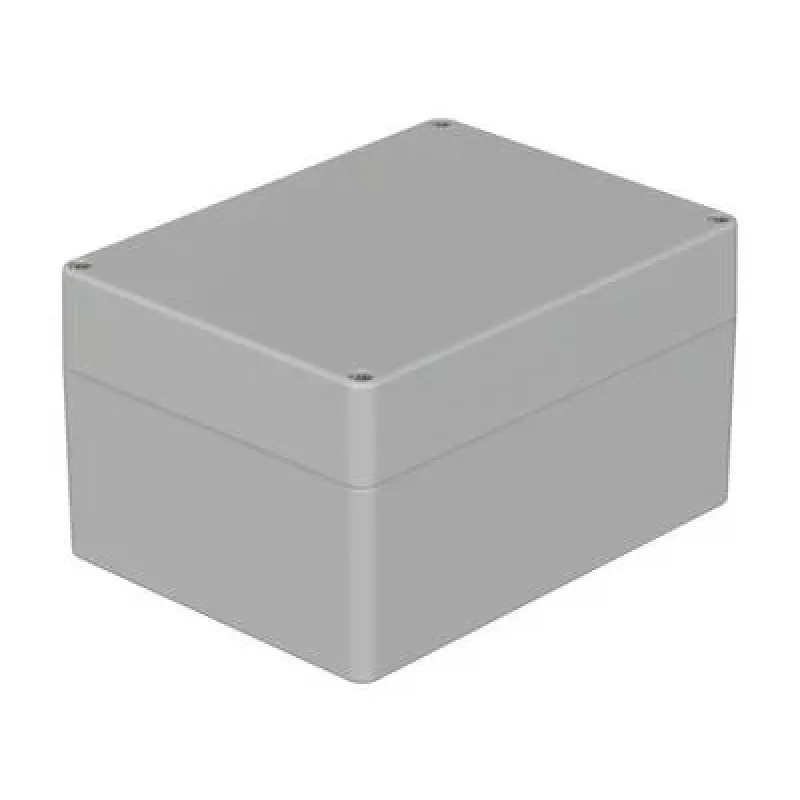

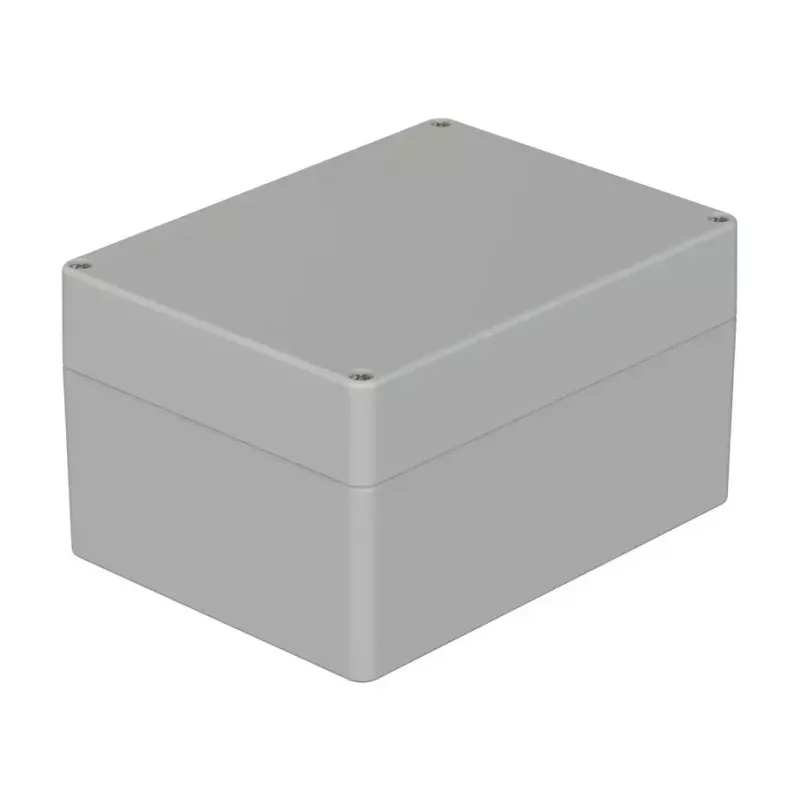

Bopla EUROMAS M 238 VO yleiskotelo 160 x 120 x 90 mm polykarbonaatti vaaleanharmaa 02238094

In industrial control panels and outdoor equipment housings, the Bopla EUROMAS M 238 VO provides a robust, light grey polycarbonate enclosure measuring 160 x 120 x 90 mm. Its UL 94 V-0 flame retardancy and IP65 protection make it suitable for demanding environments.

Key specifications

• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• External dimensions: 160 x 120 x 90 mm
• Internal dimensions: approx. 152 x 112 x 80 mm
• Protection class: IP65
• Flame retardancy: UL 94 V-0
• Impact resistance: IK07
• Operating temperature: -40 to +100 °C
• Gasket material: Polyurethane (PU) foam
• Lid fastening: Stainless steel captive screws
• Mounting: Wall mountable
• Halogen-free: Yes
• UV resistance: Yes
• Series: EUROMAS M

Why choose it

The EUROMAS M 238 VO combines a screw-on lid with a polyurethane foam gasket to maintain a reliable seal. Its polycarbonate body withstands impacts and UV exposure, while the light grey finish suits a range of installations.

Ideal use cases

• Industrial control units
• Outdoor electrical junctions
• Automation system enclosures

Good to know

Stainless steel captive screws are included on the lid, and the enclosure can be mounted via screw channels or optional brackets.
