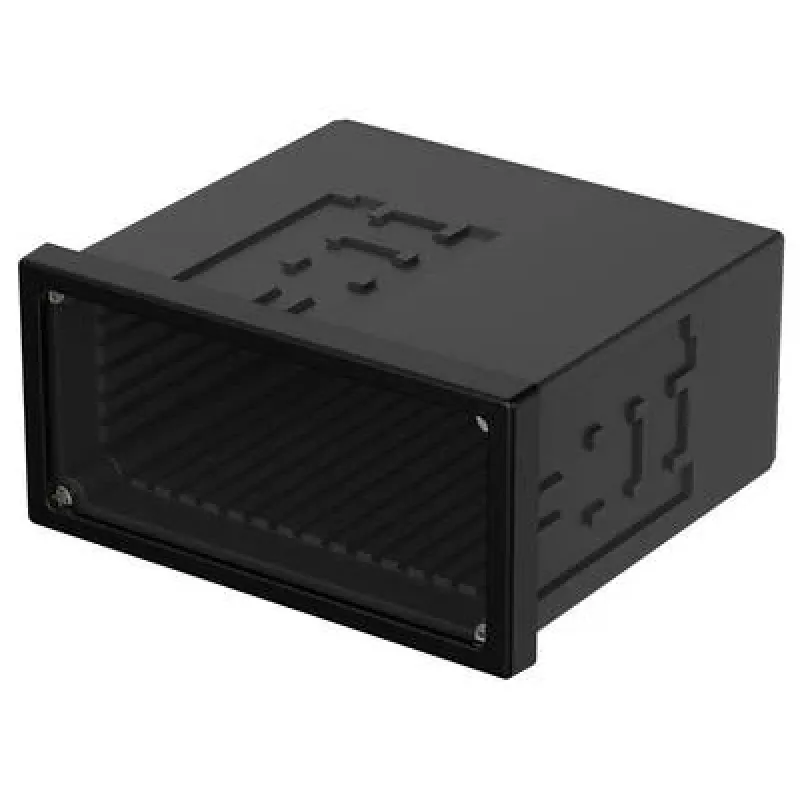

Bopla NGS 9408 UNINORM asennuskotelo, 96 x 48 x 85 mm, musta RAL 9005 17940801.MT1

The Bopla NGS 9408 UNINORM plug-in housing offers a practical solution for panel-mounted electronics, combining a compact 1/8 DIN footprint with a clean, jet-black finish. Its two-part design—a base and a front frame—simplifies assembly and provides a secure enclosure for your components.

Highlights

• External dimensions: 96 x 48 x 85 mm (W x H x D)
• Front panel cut-out: 92 x 44 mm, per DIN 43700
• Material: ABS, UL 94 V-0 flammability rated
• Colour: Black (RAL 9005)
• Protection class: IP40
• Operating temperature: -20 to +80 °C

In daily use

With a usable internal depth of 80 mm, this housing accommodates a variety of PCBs and components. The smooth surface finish is easy to clean and integrates well into control panels and instrumentation. Its built-in mounting style allows for straightforward installation into standard cut-outs.

Full specifications

• Product type: UNINORM plug-in housing
• Series: NGS
• Mounting type: Built-in / panel mount
• Size standard: 1/8 DIN
• Number of housing parts: 2 (base and front frame)
• Surface finish: Smooth
• Standard compliance: DIN 43700

Final note

A reliable choice for industrial and electronic applications requiring a standardised, flame-retardant enclosure.
