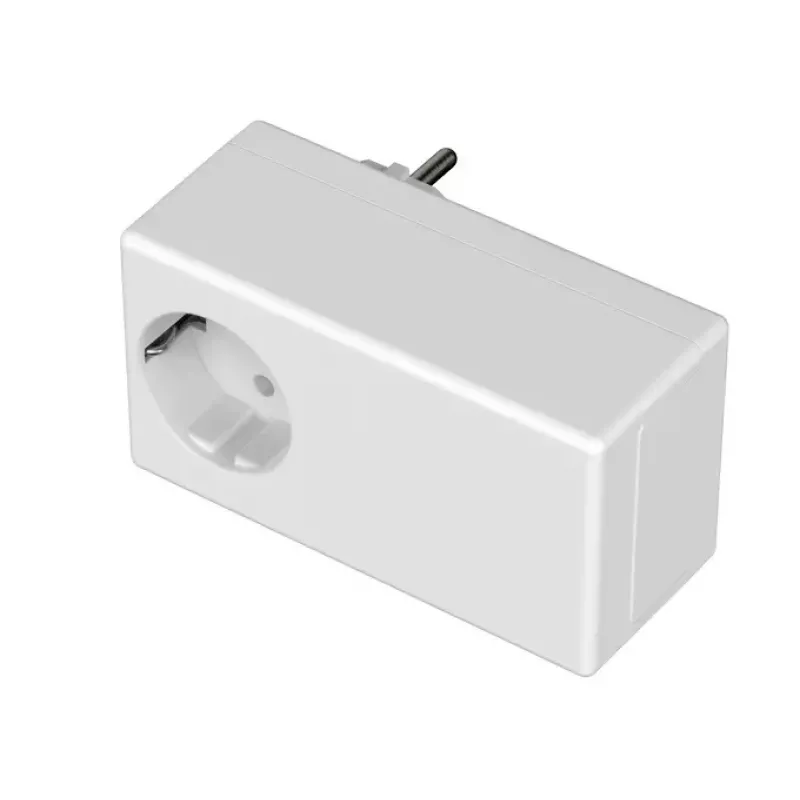

Bopla SE 432 DE - 9016 pistokekotelo 120 x 65 x 50 mm PC valkoinen 43432509

Protect electronic components in a robust, versatile enclosure. The Bopla SE 432 DE is a plug-in enclosure made of polycarbonate in traffic white (RAL 9016), offering a clean look and reliable protection for PCBs and other electronics.

Who is it for

Engineers and hobbyists needing a durable housing for electronic projects, control units, or IoT devices. Its compact size and integrated PCB guides make assembly straightforward.

Main features

• Material: Polycarbonate (PC) with smooth surface
• Colour: Traffic white (RAL 9016)
• External dimensions: 120 mm length, 65 mm width, 50 mm height
• Two-part design: base and screw-on lid
• Integrated guide grooves for PCB mounting
• Recessed front panel for connectors or displays
• Operating temperature: -40 to +80 °C
• Flammability rating: UL 94 V-2
• Impact resistance: IK07

Specifications

• Enclosure type: Plug-in enclosure
• Material: Polycarbonate (PC)
• Colour: Traffic white (RAL 9016)
• External length: 120 mm
• External width: 65 mm
• External height: 50 mm
• Protection class: IP40
• Operating temperature range: -40 to +80 °C
• Flammability rating: UL 94 V-2
• Lid fastening type: Screw-on
• Number of enclosure parts: 2 (base and lid)
• Design features: Recessed front panel, integrated guide grooves for PCBs
• Mounting options: Desktop, wall mounting (with accessories), DIN rail mounting (with accessories)
• RoHS compliant: Yes
• Halogen-free: Yes
• Impact resistance: IK07
• Gasket: No
• Surface finish: Smooth
• Application: Electronic components, power supplies, control units, IoT devices

Tips

For wall or DIN rail mounting, use compatible accessories from Bopla. Ensure the lid is securely screwed to maintain IP40 protection.
