Bopla yleiskotelo 75 x 75 x 40 polystyreeni (PS) harmaa-musta U 75 06075000

IP65-rated universal enclosure with impact-resistant polystyrene housing in grey-black, ideal for industrial electronics.

Overview

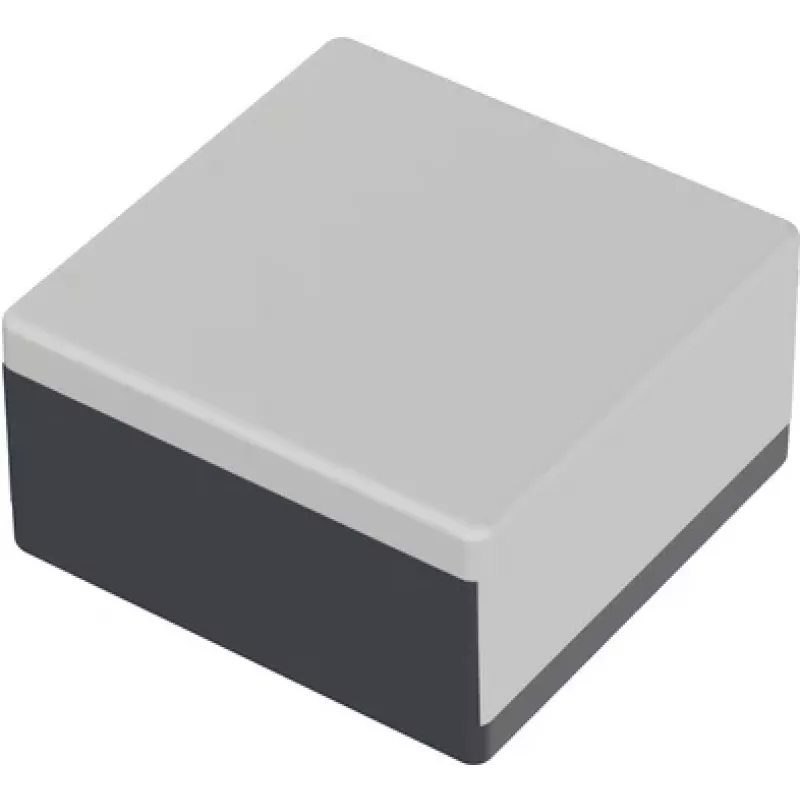

The Bopla U 75 universal enclosure offers a compact 75 x 75 x 40 mm footprint with solid walls and a smooth surface. Its screw-on lid with four screws and integrated PUR gasket ensures a dust-tight, water-jet-protected seal. Internal mounting bosses allow direct PCB or mounting plate installation.

What stands out

• IP65 protection: dust-tight and protected against water jets
• Impact-resistant, halogen-free polystyrene (PS) housing
• Integrated mounting bosses for PCBs or mounting plates
• Wide operating temperature range: -40 to +70 °C
• UL 94 HB flammability rating

Technical details

• External dimensions (L x W x H): 75 x 75 x 40 mm
• Material: Polystyrene (PS)
• Colour: Grey-black
• Lid fastening: 4 screws
• Gasket material: Polyurethane (PUR)
• Operating temperature: -40 to +70 °C
• Flammability rating: UL 94 HB
• RoHS compliant

Our verdict

A reliable, compact enclosure for control systems and measurement technology in demanding environments.
