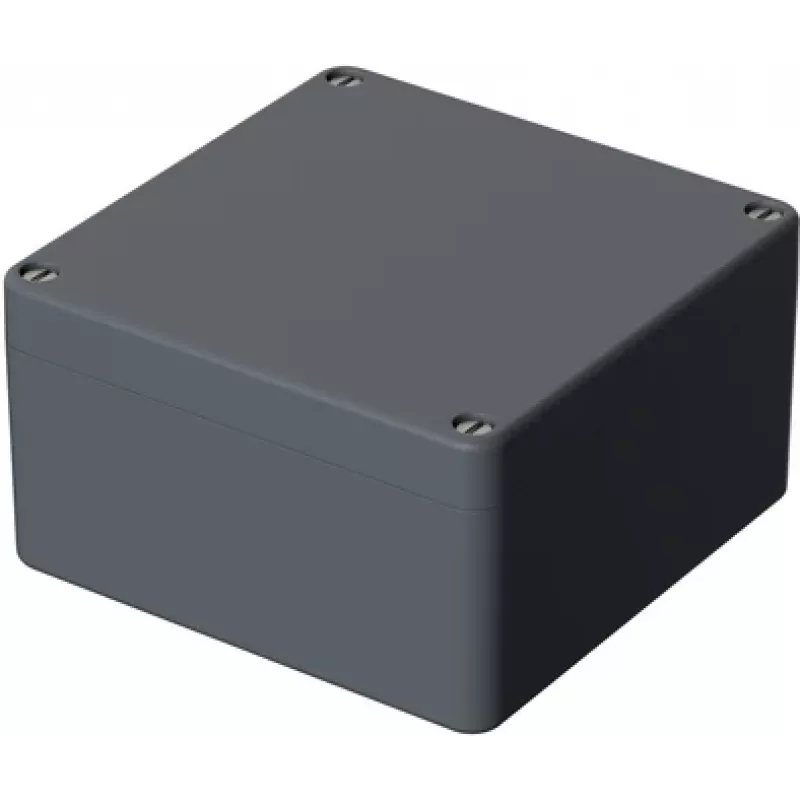

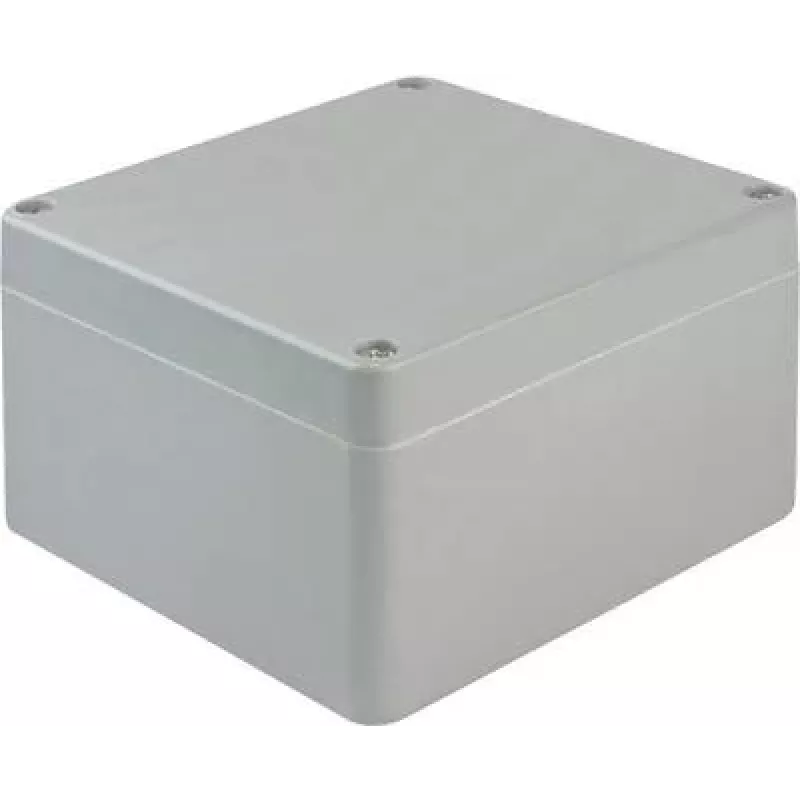

BOPLA yleiskotelo polyesteri hopeanharmaa (RAL 7001) 160 x 160 x 91 P 330 04330000.MTC

This BOPLA universal enclosure stands out with its robust glass-reinforced polyester construction, offering a durable housing solution for demanding environments. The silver grey finish (RAL 7001) provides a professional appearance suitable for a wide range of applications.

Highlights

• Material: Glass Reinforced Polyester (GRP) for high strength and corrosion resistance
• External dimensions: 160 mm width x 160 mm length x 91 mm height
• Colour: Silver Grey (RAL 7001)
• Ingress protection: IP66 rated for dust-tight and powerful water jet protection
• Impact resistance: IK08 rated for protection against mechanical impacts
• Wide operating temperature range: -40 to +100 °C
• Flammability rating: UL 94 V-0 for enhanced fire safety
• Lid fastening: Screw-on lid with captive stainless steel screws
• Gasket material: Polyurethane (PU) for reliable sealing
• Mounting options: Internal mounting bosses for DIN rails or PCBs
• UV resistant and halogen-free
• Good chemical resistance against many acids, alkalis, and oils

In daily use

This enclosure is ideal for housing electrical and electronic components in industrial settings. Its screw-on lid with captive stainless steel screws ensures secure closure while allowing easy access for maintenance. The internal mounting bosses provide flexibility for installing DIN rails or PCBs, making it suitable for control systems, junction boxes, and other applications requiring a robust, weatherproof housing.

Full specifications

• Enclosure Type: Universal Enclosure
• Material: Glass Reinforced Polyester (GRP)
• Colour: Silver Grey
• RAL Colour Code: RAL 7001
• External Length: 160 mm
• External Width: 160 mm
• External Height: 91 mm
• Ingress Protection (IP) Rating: IP66
• Impact Resistance (IK) Rating: IK08
• Operating Temperature Range: -40 to +100 °C
• Flammability Rating: UL 94 V-0
• Lid Fastening: Screw-on lid
• Lid Screws Material: Stainless Steel
• Lid Screws Type: Captive
• Gasket Material: Polyurethane (PU)
• Mounting Options: Internal mounting bosses for DIN rails/PCBs
• UV Resistance: Yes
• Halogen-Free: Yes
• Chemical Resistance: Good against many acids, alkalis, oils

Final note

With its combination of durability, sealing, and chemical resistance, this BOPLA enclosure is a reliable choice for protecting sensitive electronics in harsh conditions.
