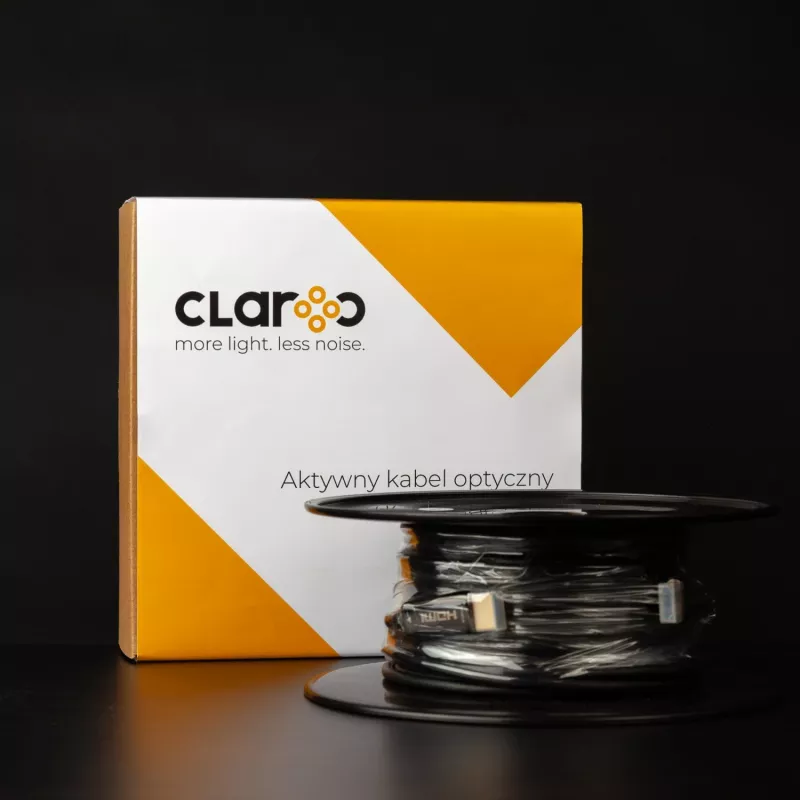

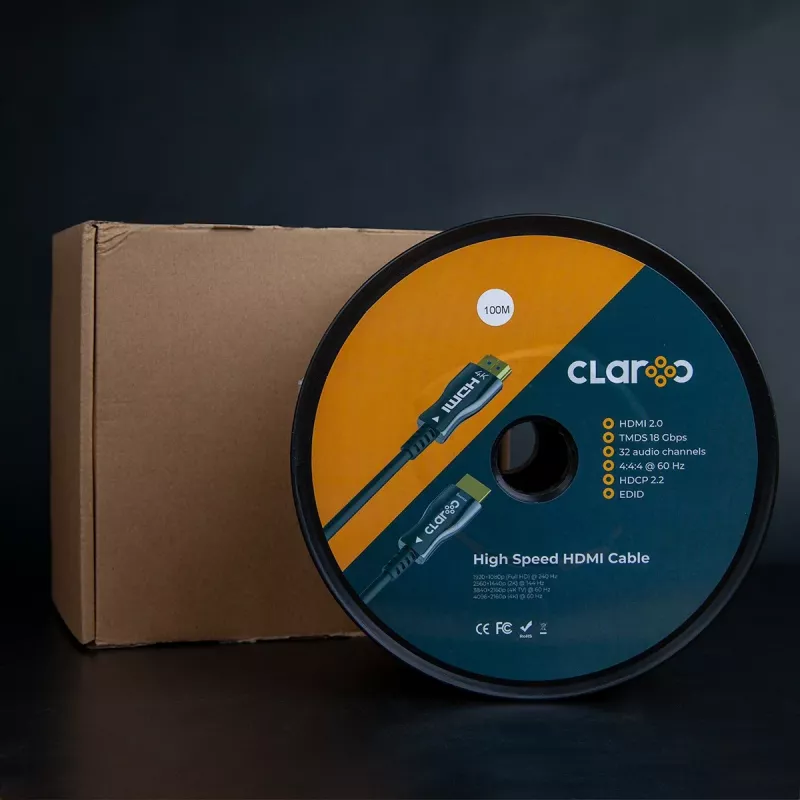

Claroc HDMI 2.0 AOC 4K@60Hz 50 m aktiivinen optinen kaapeli

The Claroc HDMI 2.0 AOC 4K@60Hz 50 m is a high-performance active optical HDMI cable designed for long-distance transmission of 4K Ultra HD video and multi-channel audio. With a length of 50 meters, it is ideal for professional AV installations, home theaters, gaming setups, and digital signage applications. The cable supports HDMI 2.0 standards, delivering up to 18 Gbps bandwidth, HDR10, HLG, Dolby Vision, and HDCP 2.2 compliance. Its active optical technology ensures reliable signal integrity over long distances without degradation.

Advantages

Active optical design eliminates signal loss over 50 meters, supporting 4K@60Hz with 4:4:4 chroma subsampling. The cable is bus-powered, requiring no external power supply, and features gold-plated connectors for corrosion resistance. It supports ARC, Dolby TrueHD, DTS-HD Master Audio, and LPCM 7.1 audio formats.

Suitable for

• Home theater systems requiring long cable runs
• Professional AV installations in conference rooms or auditoriums
• Gaming setups with 4K consoles or PCs
• Digital signage displays in retail or public spaces

Key specifications

• Cable Type: Active Optical Cable (AOC)
• HDMI Standard: HDMI 2.0

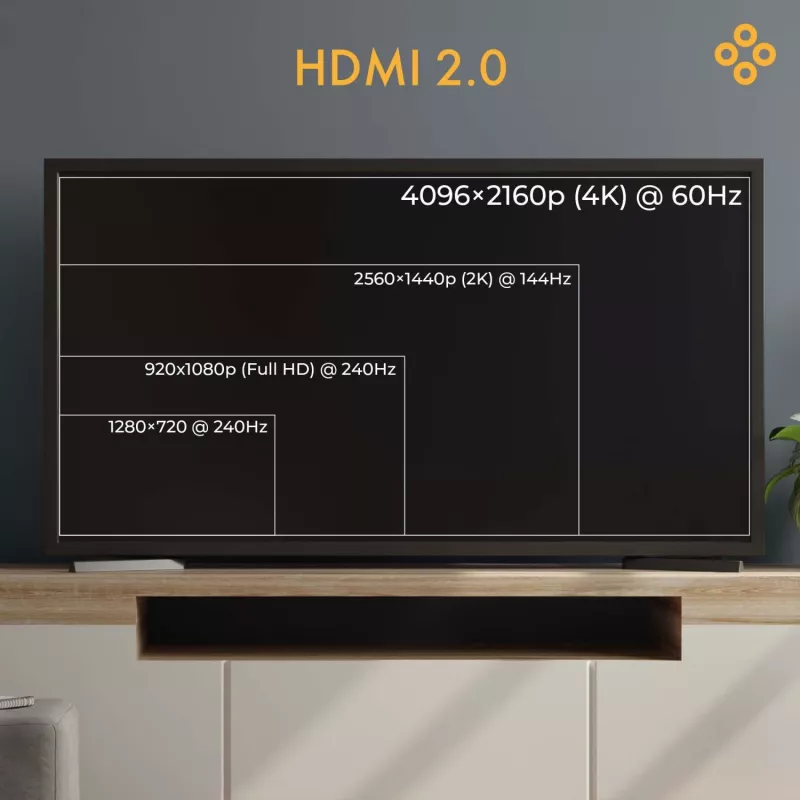

• Max Resolution: 4K Ultra HD (3840 x 2160) @ 60Hz
• Data Bandwidth: 18 Gbps
• Cable Length: 50 meters

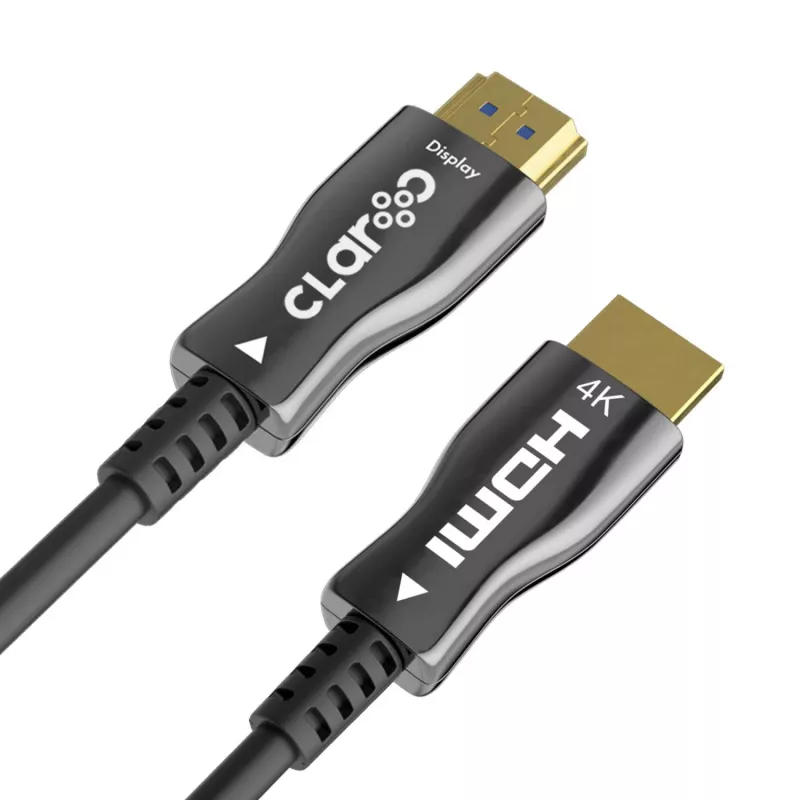

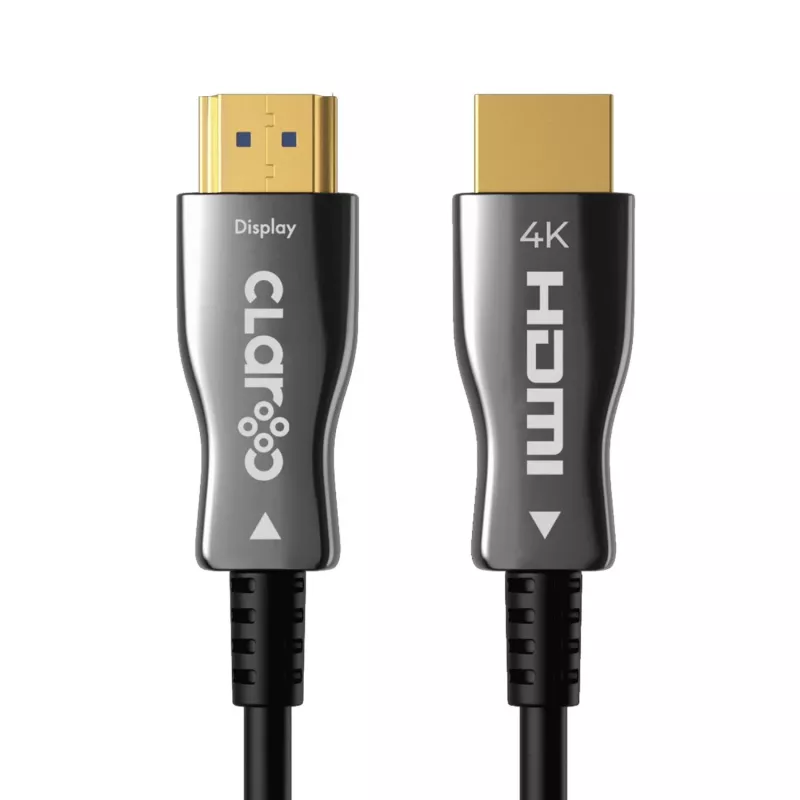

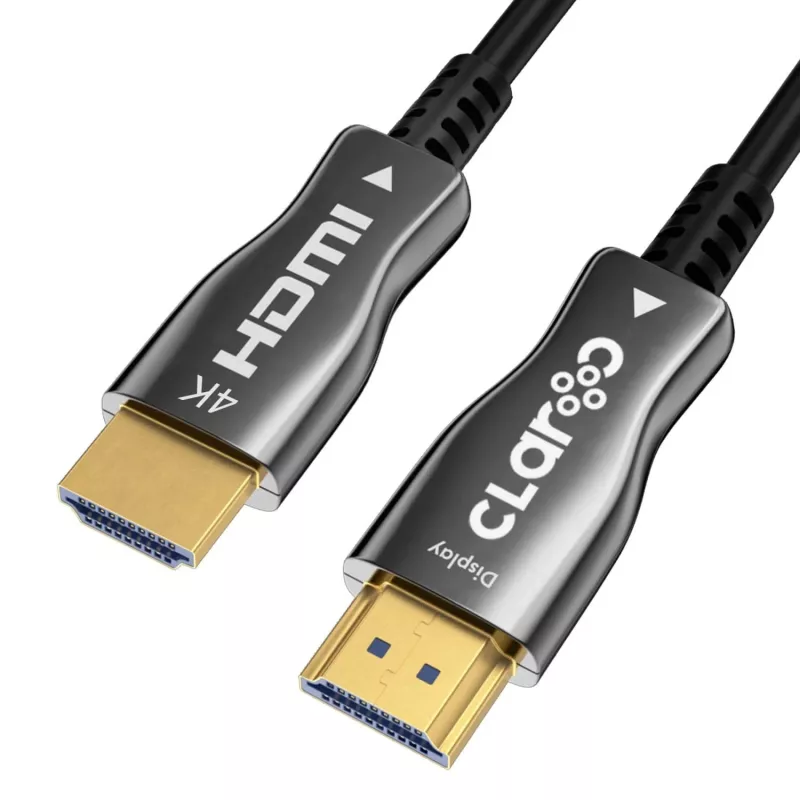

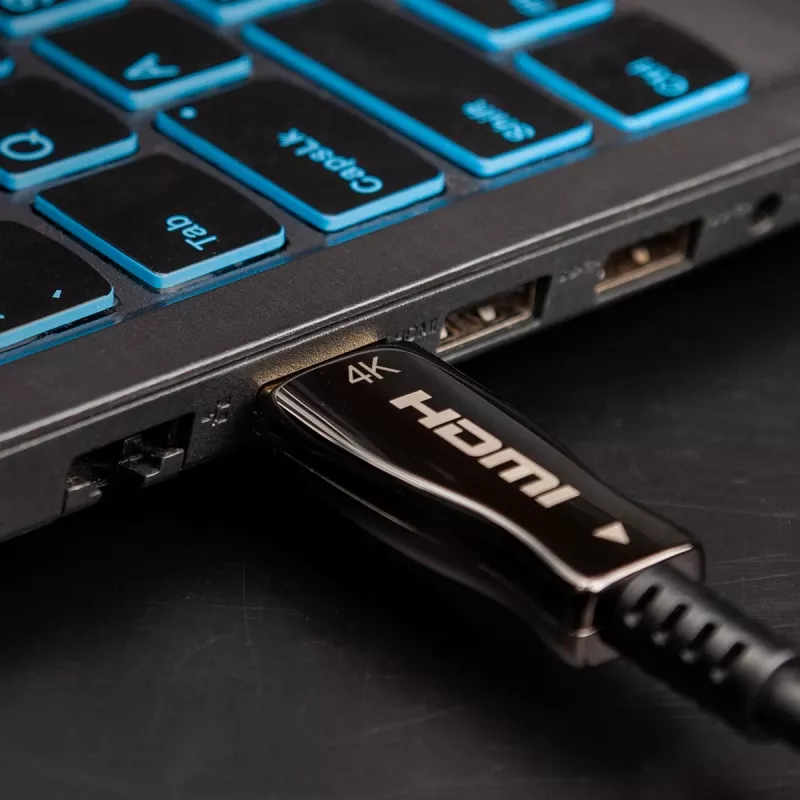

• Connector Type: HDMI Type A Male to HDMI Type A Male

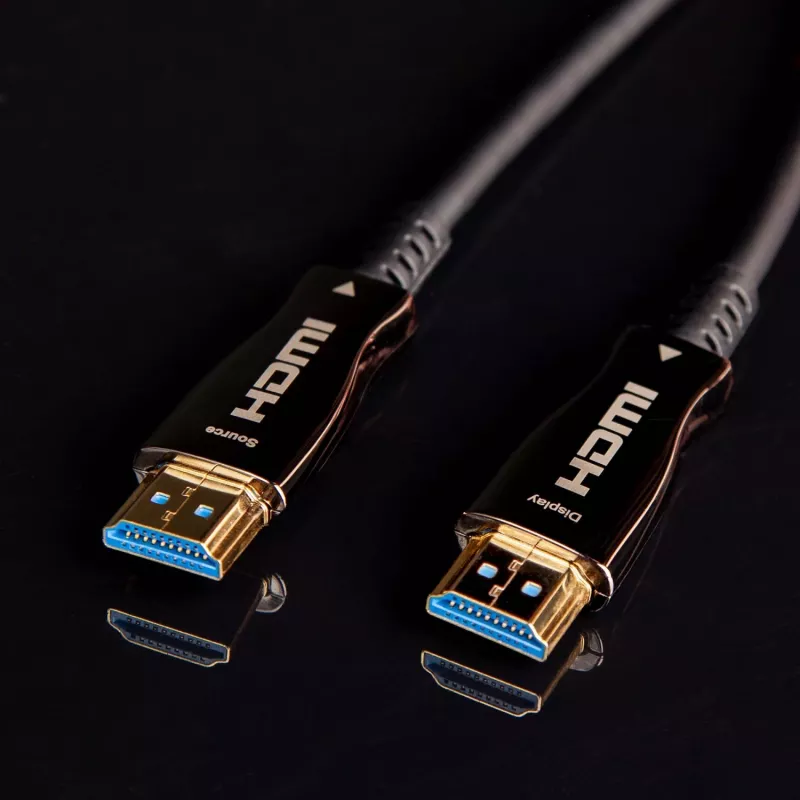

• Directional: Yes (Source/Display marked)
• HDCP Support: HDCP 2.2
• HDR Support: HDR10, HLG, Dolby Vision
• Audio Return Channel (ARC): Yes
• Supported Audio Formats: Dolby TrueHD, DTS-HD Master Audio, LPCM 7.1
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• Power Supply: Bus-powered (from HDMI port)
• Jacket Material: PVC

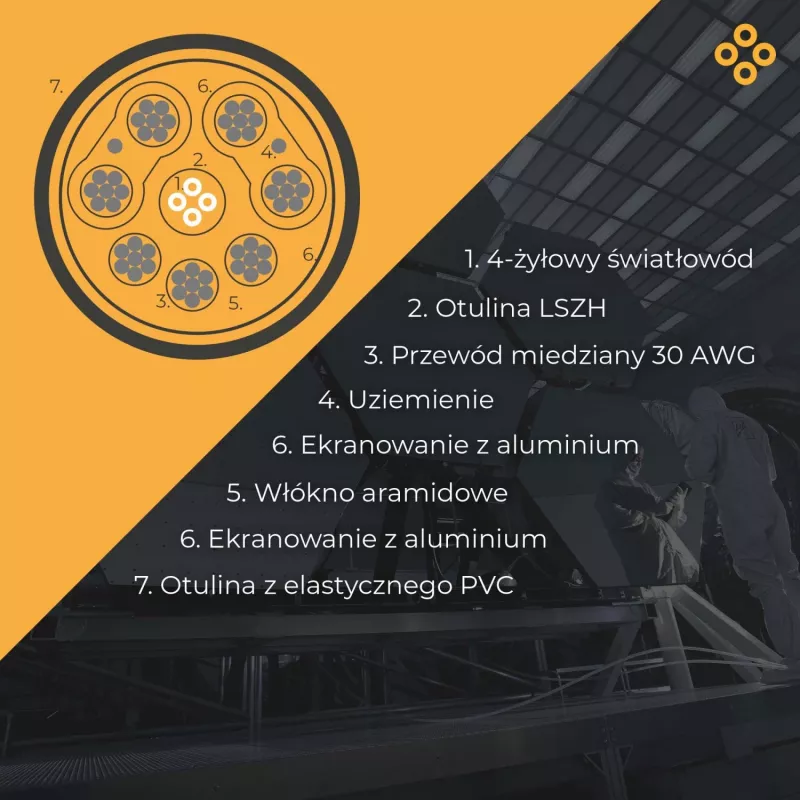

• Conductor Material: Fiber Optic (data), Tinned Copper (power)
• Connector Plating: Gold-plated
• Compliance: CE, FCC, RoHS

Recommendations

For optimal performance, ensure the source and display devices support HDMI 2.0 and HDCP 2.2. The cable is directional; connect the source end to the transmitting device and the display end to the monitor or projector. Avoid sharp bends or kinks to protect the fiber optic core.
