D-Type-moduuli 3,5 mm 3-napainen stereoliitäntä naaras - liitinrima DeLOCK 86732

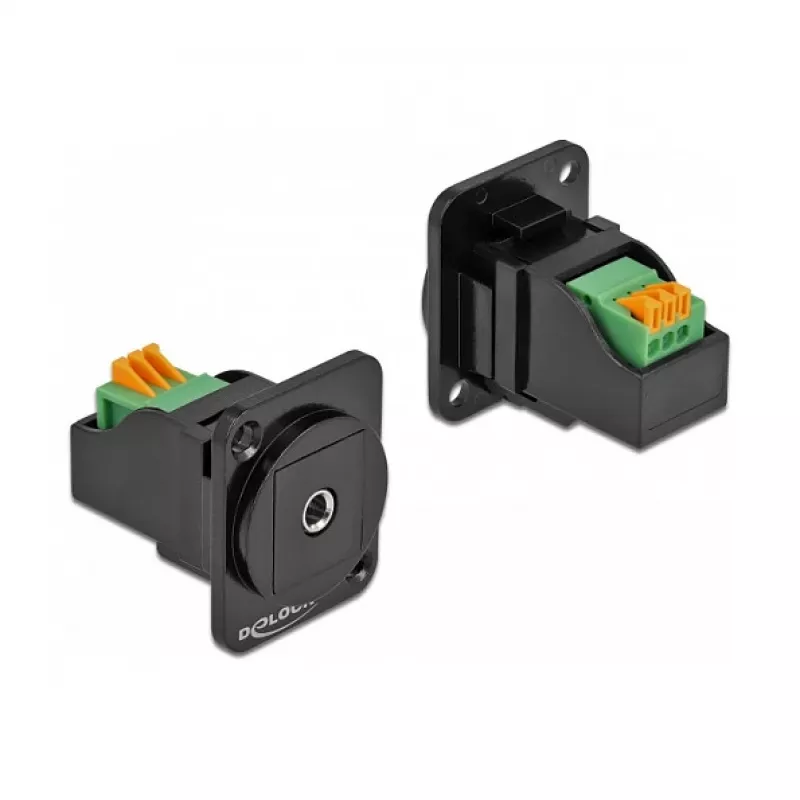

The DeLOCK D-Type module provides a 3.5 mm 3-pin stereo jack female to terminal block connection in a flat, black housing designed for mounting into panels or cases with D-type openings for XLR jacks. Its compact dimensions (31 × 34 × 25.8 mm) and single-piece packaging make it suitable for integrating analogue audio equipment into professional systems, allowing straightforward wiring between a stereo 3.5 mm jack and a terminal block.

Advantages

The module offers a compact and flat design that fits D-type openings intended for XLR jacks, a 3.5 mm 3-pin stereo jack female interface for common analogue audio sources, and a terminal block for secure, tool-accessible wiring. Its black housing is suitable for professional installations and the component is supplied as a single unit for easy replacement or integration.

Suitable for

• Integrating portable audio sources into professional audio racks
• Custom panel builds or cases that use D-type openings for XLR jacks
• Connecting stereo 3.5 mm outputs to screw-terminal wiring

Key specifications

• Brand: DELOCK
• Model / MPN: 86732
• EAN: 4043619867325
• Connector 1: 3.5 mm 3-pin stereo jack (female)
• Connector 2: Terminal block
• Product colour: Black
• Dimensions (W × D × H): 31 × 34 × 25.8 mm
• Quantity: 1 piece
• Country of origin: China

How to use

Mount the module into a panel or case opening compatible with D-type/XLR-style cutouts. Route the wiring to the terminal block and secure conductors under the terminal screws according to the required channel assignment (left, right, ground). Insert the 3.5 mm plug into the female stereo jack to establish the audio connection. Ensure terminals are tightened and the module is properly fastened to prevent movement.

Recommendations

The device is intended for analogue audio signals and panel installations; avoid exposing the module to moisture or excessive mechanical stress and verify wiring polarity before powering connected equipment.
