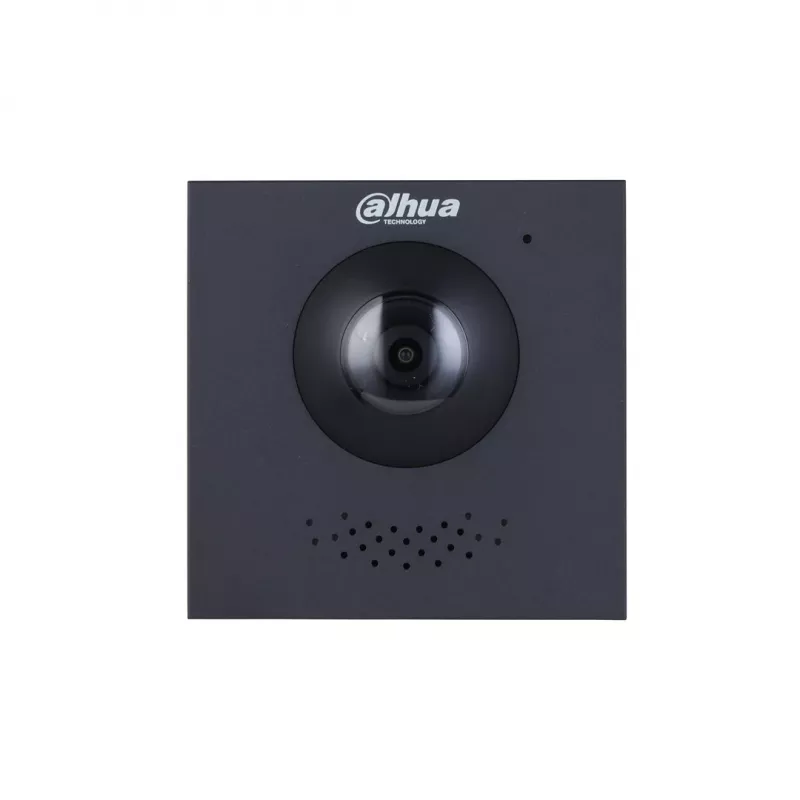

Dahua VTO4202FB-P-S3 kameramoduuli

The Dahua VTO4202FB-P-S3 Camera Module is a high-performance modular outdoor station camera designed for the VTO4202F Series. It delivers crisp 2MP 1080P video with a wide 110° horizontal field of view, ensuring clear identification of visitors. Equipped with IR night vision, a built-in omnidirectional microphone, and a speaker, it supports two-way audio communication. The module is IP65-rated for weather resistance and IK07-rated for vandal resistance, making it suitable for demanding outdoor environments. Power can be supplied via 12V DC or PoE (802.3af) for flexible installation.

Advantages

High-definition 2MP CMOS sensor provides sharp 1080P video. Wide 110° FOV covers more area. IR LEDs enable clear night vision. Built-in mic and speaker allow hands-free communication. IP65 and IK07 ratings ensure durability against weather and vandalism. PoE support simplifies cabling.

Suitable for

• Residential video doorbell systems
• Office building entrance intercom
• Apartment complex access control
• Secure facility entry points

Key specifications

• Sensor: 1/2.8" 2MP CMOS
• Resolution: 1920 x 1080 @ 25/30fps
• FOV: H: 110°, V: 62°, D: 130°
• Night Vision: IR LED
• Audio: Built-in mic and speaker
• Audio Compression: G.711a, G.711Mu, G.726
• Network: 1x RJ45 10/100M Ethernet
• Power: 12V DC or PoE (802.3af)
• Power Consumption: ≤7W
• Ingress Protection: IP65 (front panel)
• Vandal Resistance: IK07 (front panel)
• Operating Temperature: -30°C to +60°C
• Material: Aluminum alloy (front), PC+ABS (rear)
• Compatibility: Dahua VTO4202F Series modular stations

Recommendations

For a complete outdoor station, pair this camera module with a compatible Dahua VTO4202F series frame and back box. Ensure proper sealing for optimal weather protection.
