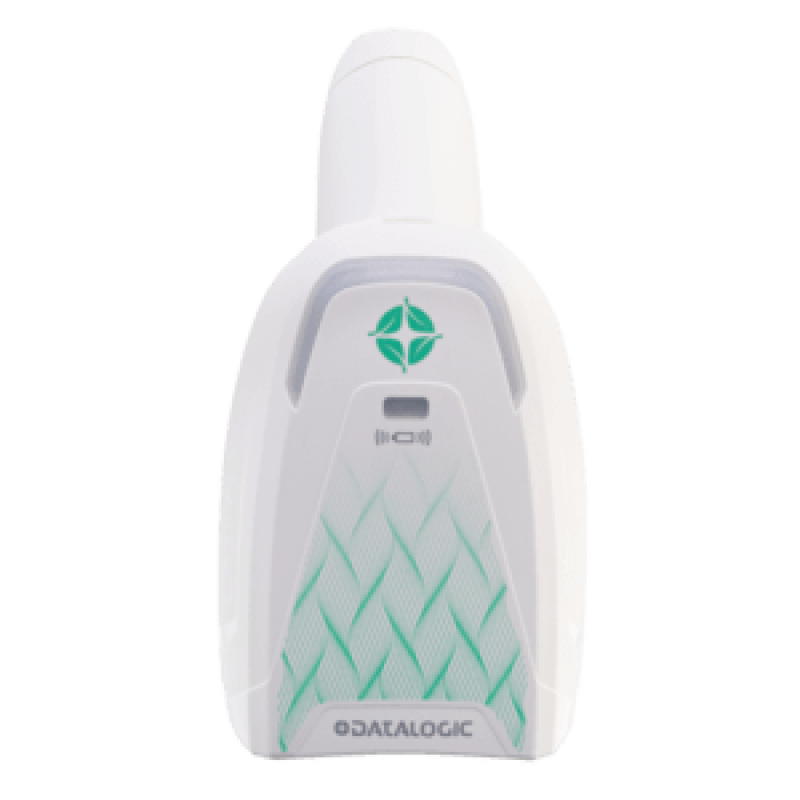

Datalogic Gryphon 4600 - viivakoodilukija - käsikäyttöinen

Healthcare professionals in clinics and hospitals rely on the Datalogic Gryphon 4600 HC for fast, accurate barcode scanning at the point of care. This corded handheld scanner reads 1D, 2D, and postal barcodes from patient wristbands, medication labels, and documents, even when they are damaged or poorly printed. Its 2D area imager captures barcodes in any orientation, while the 4-dot aimer with center cross ensures precise targeting. The scanner's motion tolerance of up to 400 ips allows quick swipes, and the white LED illumination provides clear visibility. With an IP52 rating and 1.8 m drop resistance, it withstands daily use in busy environments. The Gryphon 4600 HC connects via USB, RS-232, or keyboard wedge, integrating easily with existing systems. Datalogic's 'Green Spot' technology confirms successful reads with a green light, reducing errors and improving workflow efficiency.

Key specifications

• Scanning technology: 2D area imager
• Connectivity: Corded (USB, RS-232, Keyboard Wedge)
• Decode capability: 1D, 2D, Postal, Digimarc barcodes
• Motion tolerance: Up to 400 ips (10 m/s)
• Print contrast ratio: Minimum 25%
• Light source: White LED illumination
• Field of view: 42° H x 28° V
• Resolution: 1280 x 800 pixels
• Drop resistance: 1.8 m (6.0 ft) onto concrete
• IP rating: IP52
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Indicators: Beeper, Good Read LED, Datalogic's 'Green Spot' technology
• Colour: Black
• Power source: Host powered (via interface cable)
• Reading angles: Pitch ±65°, Roll ±360°, Skew ±65°
• Aiming system: 4-Dot aimer with center cross
• Image capture: Yes (optional, for document/signature capture)

Why choose it

The Gryphon 4600 HC delivers exceptional scanning performance in healthcare settings. Its high motion tolerance and omnidirectional reading capability speed up patient identification and medication administration, reducing wait times and improving safety. The durable design and IP52 rating ensure reliable operation even after drops and exposure to dust and moisture. The 'Green Spot' visual confirmation helps staff scan confidently without looking at a screen, enhancing productivity. With multiple interface options, it is easy to integrate into existing hospital information systems.

Ideal use cases

• Patient wristband scanning for positive identification
• Medication barcode verification at point of care
• Laboratory specimen tracking
• Document and record scanning in healthcare offices
• Retail pharmacy prescription processing

Good to know

The scanner is host-powered, so no external power supply is needed—just connect the appropriate interface cable. It supports optional image capture for document or signature capture, adding versatility. The Gryphon 4600 HC is part of Datalogic's healthcare series, designed with disinfectant-ready housing to withstand regular cleaning. For optimal performance, ensure the barcode is within the field of view and the print contrast ratio is at least 25%.
