DEHN saumapidike 365039 NIRO 0,7-8 mm saumoille, ruostumaton teräs V2A, pyöreä johdin 8-10 mm

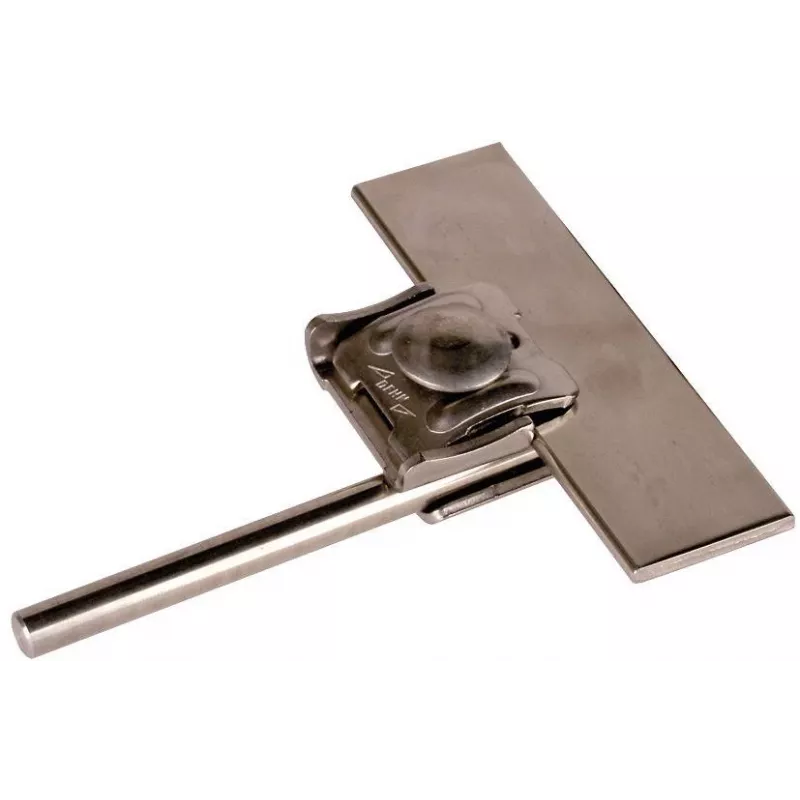

Seam clamp for lightning protection and equipotential bonding on standing seam metal roofs. Clamps securely to seam thicknesses of 0.7 to 8 mm with high corrosion resistance from stainless steel V2A (1.4301).

Advantages

High corrosion resistance for long-term outdoor use. Suitable for round conductors with a diameter of 8 to 10 mm. Fast installation with M8 screw connection.

Suitable for

• Standing seam metal roofs
• Lightning protection systems
• Equipotential bonding and earthing

Key specifications

• Material: Stainless steel V2A (1.4301)
• Clamping range: 0.7 - 8 mm seam thickness
• Conductor diameter: 8 - 10 mm
• Connection bolt: M8

Recommendations

Verify seam profile and conductor diameter before ordering. Follow applicable lightning protection standards during installation.
