DeLOCK D-tyypin moduuli HDMI 8K 60Hz liitäntä liitäntään ruuveilla musta

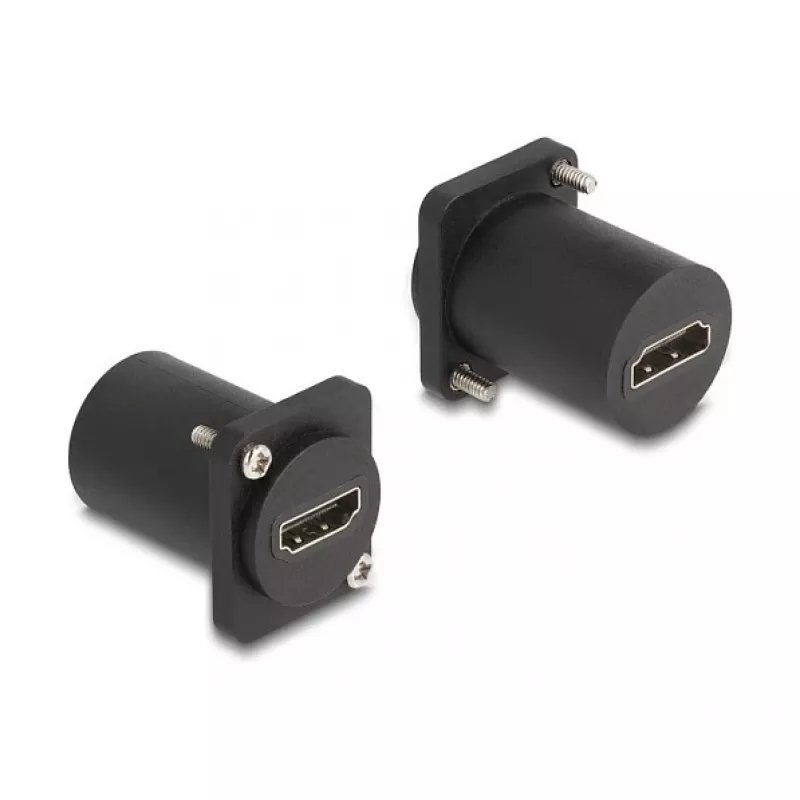

The DeLOCK D-Type Module HDMI 8K 60Hz jack to jack is a compact, flat black module designed to be mounted in panels or cases with D-type openings for XLR jacks. It features HDMI-to-HDMI connectivity and supports high-resolution video transmission up to 8K at 60 Hz. With a low-profile form factor and screw mounting, it is intended for integration of digital video equipment into professional AV and monitoring systems.

Advantages

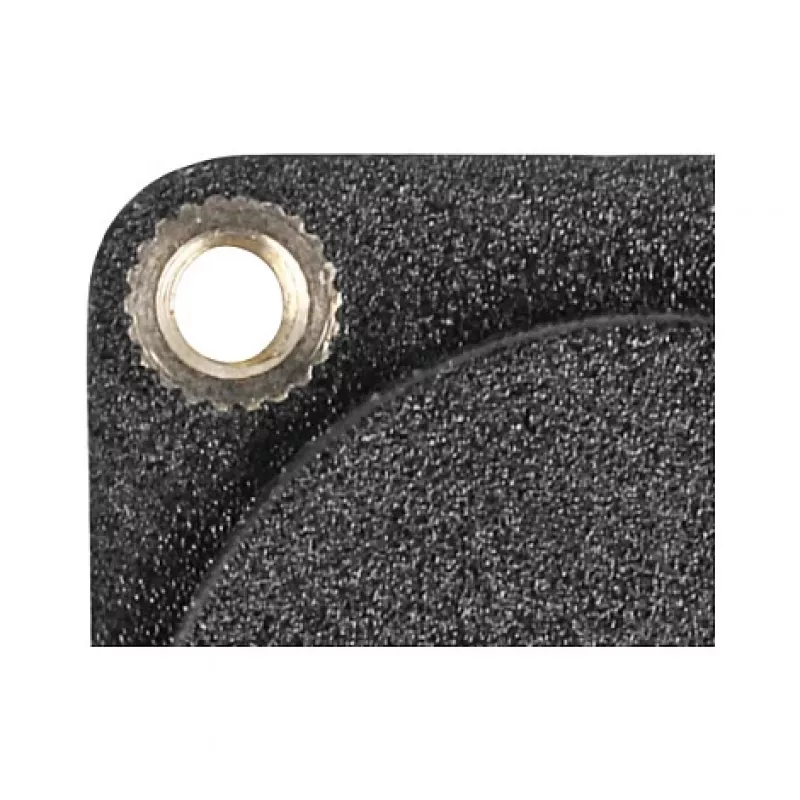

This D-Type module provides a standardized, space-saving HDMI jack-to-jack interface for panel mounting. Its flat construction and black finish allow discreet installation in racks, panels or enclosures. The unit supports HDMI connections suitable for high-resolution signals and includes screw mounting points for secure fixation.

Suitable for

Key specifications

How to use

Install the module into a compatible panel or enclosure by aligning it with the D-type opening and securing it with the provided screws. Connect an HDMI cable to each side of the jack-to-jack module to establish a pass-through connection. Use with HDMI-equipped source and display devices following standard HDMI cabling practices and signal routing.

Recommendations

For reliable 8K/60 Hz performance, use certified high-speed HDMI cables and keep cable runs within specified length limits for the cable type. Ensure the panel cut-out matches D-type dimensions for XLR jack openings and tighten mounting screws securely without over-torquing.
