DeLOCK M.2 Key A+E - PCIe x1 NVMe -adapteri taivutettu 20 cm kaapeli

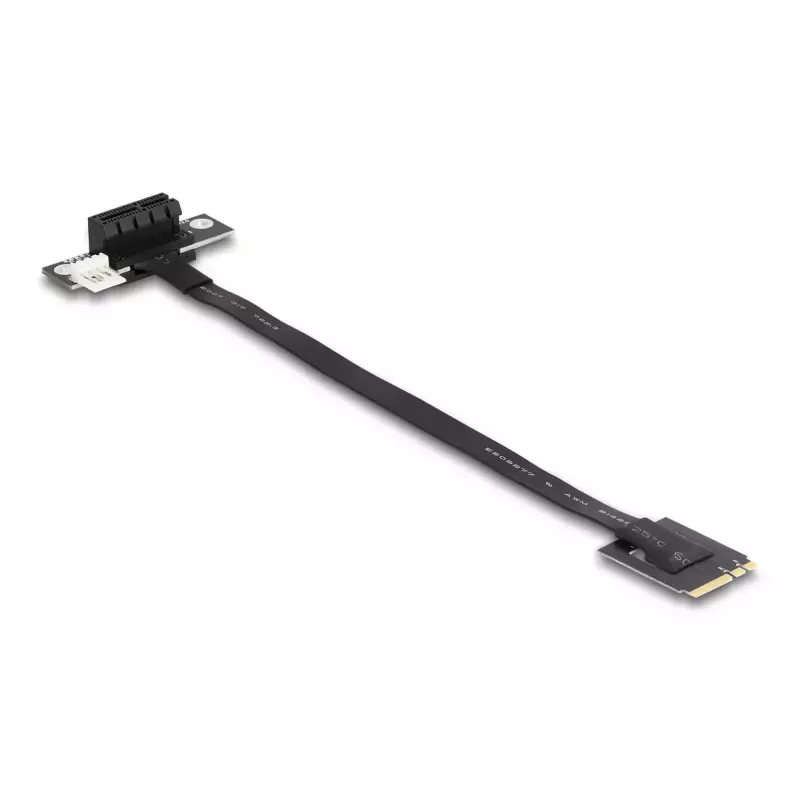

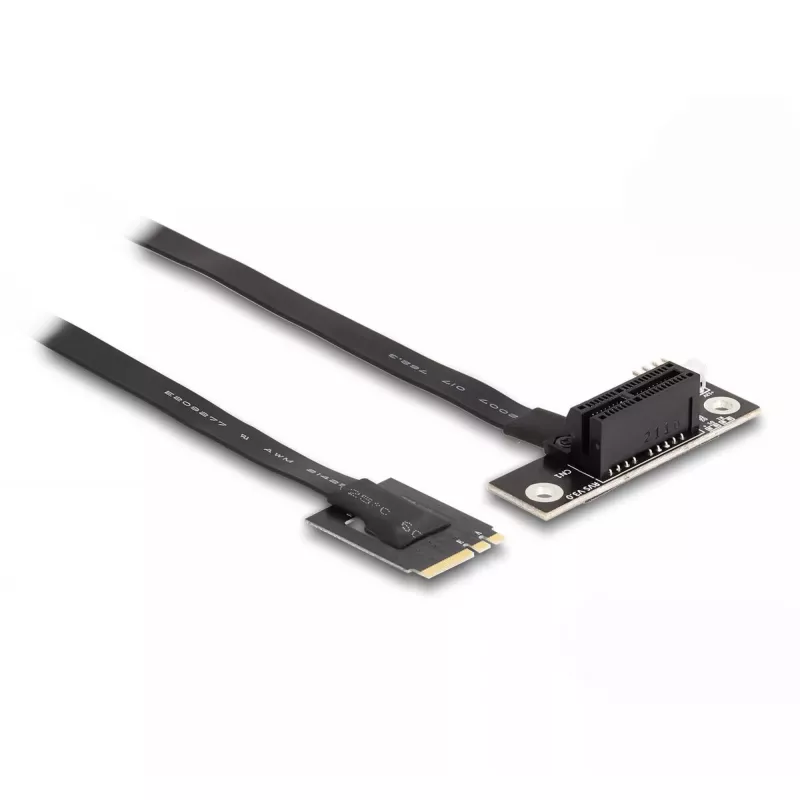

The DeLOCK M.2 Key A+E to PCIe x1 NVMe Adapter with a 20 cm angled cable enables connection of a PCI Express card to an M.2 Key A+E slot. The adapter provides a male M.2 host interface and a female PCIe x1 output, allowing installation inside compact computer cases while supporting UEFI 2.3 for system compatibility.

Advantages

The flexible 20 cm angled cable permits space-saving routing and placement of the PCIe card within the chassis. The adapter supports NVMe devices via a PCIe x1 interface and includes an additional 12 V power connector to supply cards that require external power. Its internal M.2 host interface and compact design make it suitable for small form-factor systems.

Suitable for

• Connecting a PCIe x1 expansion card to an M.2 Key A+E slot
• Installing expansion cards in compact or slim PC cases
• Systems requiring UEFI 2.3 compatibility

Key specifications

• Brand: DELOCK
• Model / MPN: 64217
• EAN: 4043619642175
• Host interface: M.2 (Key A+E), male
• Output interface: PCIe x1, female
• Cable length: 20 cm, angled
• Internal: Yes
• UEFI support: UEFI 2.3

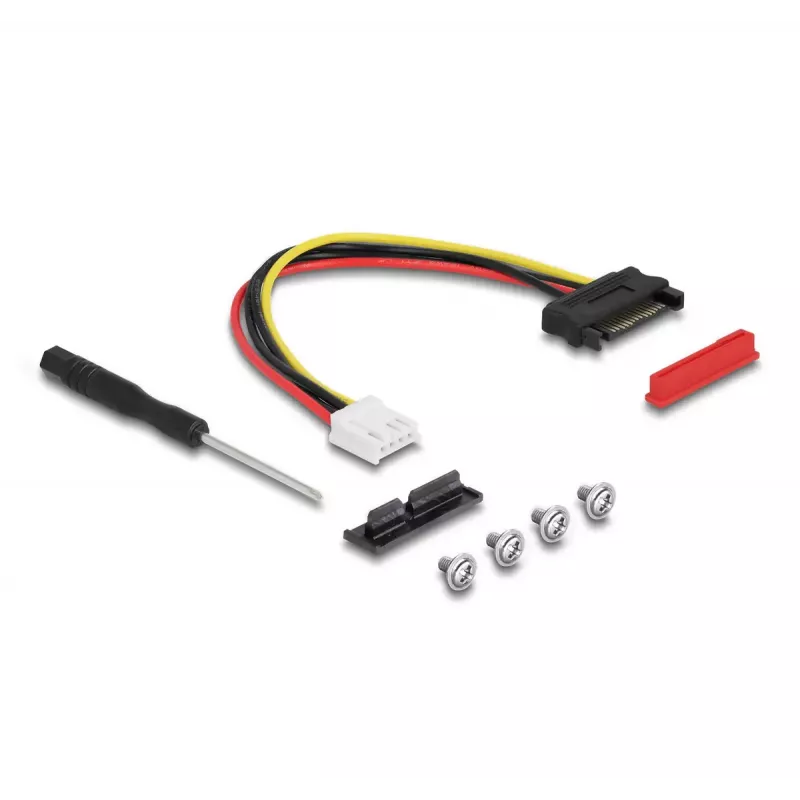

• Additional power: 12 V connector (for cards requiring external power)

How to use

Insert the adapter's M.2 Key A+E connector into the corresponding M.2 slot on the motherboard. Route the 20 cm angled cable to the desired internal location and secure the PCIe card into the adapter's female PCIe x1 slot. If the installed PCIe card requires external power, connect the 12 V power connector to an appropriate power source before powering on the system. Verify UEFI settings if necessary to ensure device recognition.

Recommendations

Use this adapter inside the computer case only. Ensure the M.2 slot supports Key A+E and verify the PCIe card's power requirements. Avoid excessive bending of the flexible cable and secure the card to prevent movement during operation.
