Donau Elektronik 105-4-100 kytkentäjohto 0,20 mm² vihreä 100 m

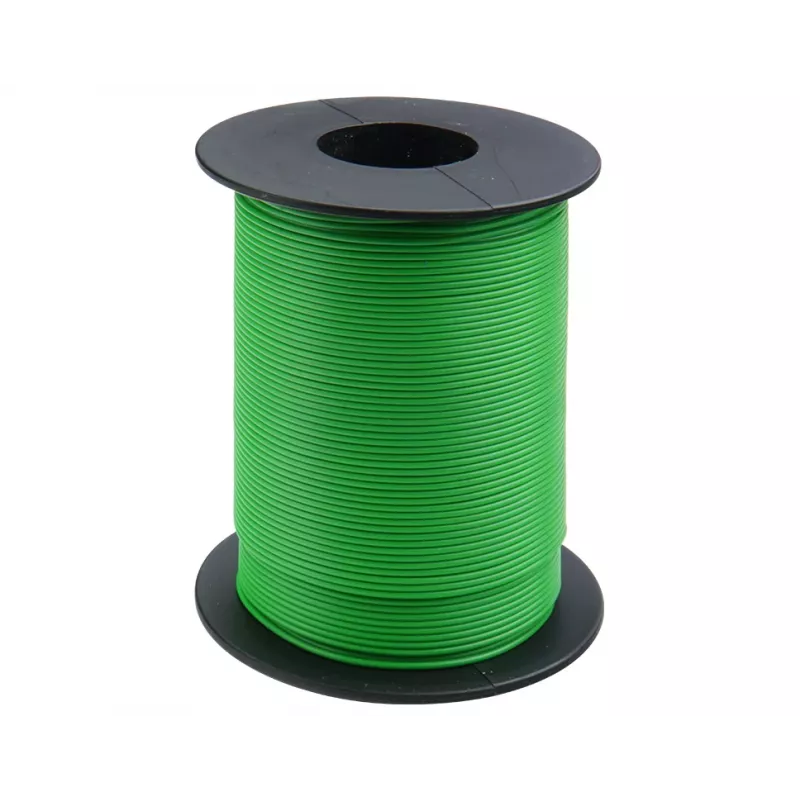

Solid copper conductor with 0.20 mm² cross-section and green PVC insulation, supplied on a 100 m spool.

Overview

The Donau Elektronik 105-4-100 is a single-core hook-up wire with a solid copper conductor and PVC insulation. It is intended for internal wiring, prototyping, breadboarding, and model building. The wire has a rated voltage of 300 V and operates within a temperature range of -20 °C to +80 °C.

What stands out

• Solid copper conductor for reliable connections
• Green PVC insulation for easy identification
• 100 m spool for extended use
• Rated voltage: 300 V
• Temperature range: -20 °C to +80 °C

Technical details

• Conductor cross-section: 0.20 mm²
• Number of cores: 1
• Conductor material: Copper
• Conductor type: Solid
• Insulation material: PVC
• Wire colour: Green
• Length: 100 m
• Outer diameter: 1.2 mm

Our verdict

A dependable hook-up wire for electronics projects, offering solid copper construction and a generous 100 m length.
