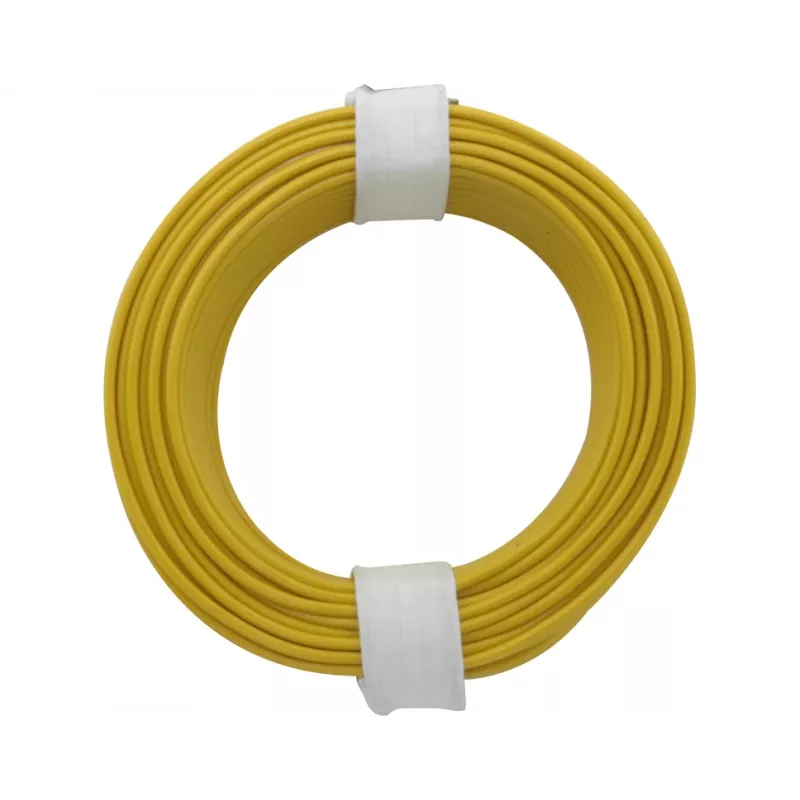

Donau Elektronik 118-3 johdin 1 x 0,14 mm² keltainen 10 m

With a conductor cross-section of just 0.14 mm² and a fine 19-strand tinned copper core, this yellow hook-up wire delivers exceptional flexibility and reliable signal integrity for delicate electronics work. Rated for 300 V and temperatures from -20°C to +80°C, it handles demanding internal wiring tasks with ease.

Overview

The Donau Elektronik 118-3 is a single-core stranded wire supplied on a convenient 10-metre spool. Its PVC insulation provides robust protection while remaining easy to strip, and the tinned copper conductor resists corrosion, ensuring long-term performance. The wire meets UL VW-1 and IEC 60332-1 flammability standards and is RoHS compliant.

What stands out

• Ultra-fine 19 × 0.1 mm stranding for maximum flexibility
• Tinned copper conductor prevents oxidation and simplifies soldering
• Wide operating temperature range (-20°C to +80°C)
• Flame-retardant PVC insulation (UL VW-1 / IEC 60332-1)
• RoHS compliant and suitable for internal wiring, model building, and electronics projects

Technical details

• Conductor cross-section: 0.14 mm² (approx. 26 AWG)
• Number of cores: 1
• Conductor material: tinned copper
• Insulation: PVC
• Nominal voltage: 300 V
• Rated current: approx. 1 A
• Conductor resistance: approx. 130 Ω/km
• Outer diameter: approx. 1.2 mm
• Length: 10 m
• Colour: yellow

Our verdict

An excellent choice for hobbyists and professionals alike, this stranded wire combines flexibility, safety, and reliable electrical performance in a convenient spool format.
