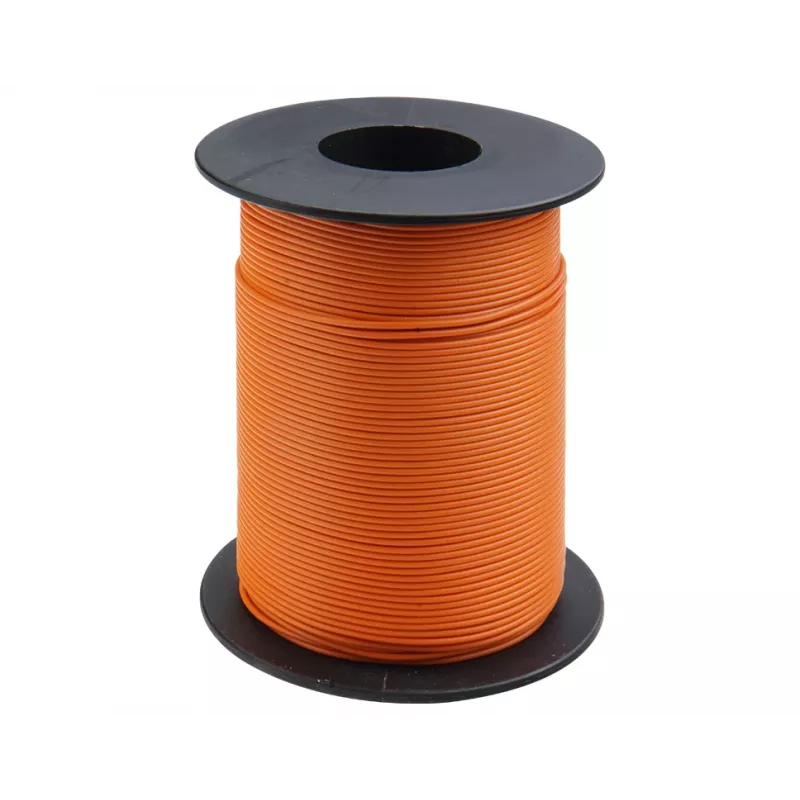

Donau Elektronik 119-17 johdin 1 x 0,14 mm² oranssi 100 m

For projects where a single-core wire would eventually fatigue and snap, this stranded conductor from Donau Elektronik brings the flexibility needed for tight routing, vibration-prone enclosures, and repeated handling. The 119-17 is a 100-metre spool of orange PVC-insulated hook-up wire with a tinned copper core, sized at 0.14 mm² (26 AWG) and built from seven individual strands. That construction keeps the wire supple while maintaining a clean, easy-to-strip profile for prototyping, repairs, and low-voltage signal wiring.

Highlights

• Stranded tinned copper conductor: 7 × 0.16 mm for excellent flexibility and solderability.
• Compact 0.14 mm² cross-section (26 AWG) suits fine electronics work without adding bulk.
• Bright orange PVC insulation stands out in dense wiring looms and aids quick identification.
• Supplied on a 100 m spool, so you always have enough for breadboarding, harnesses, or production runs.
• Rated for 300 V and temperatures from -20 °C to +80 °C, covering most indoor electronics environments.

In daily use

The 119-17 behaves like a true workshop staple. It strips cleanly with standard wire strippers, tins quickly thanks to the tinned strands, and routes neatly around corners without springing back. At roughly 1.2 mm outer diameter, it fits through small grommets and tight connector hoods, while the PVC jacket resists abrasion from normal handling. Current capacity is approximately 1.5 A, making it ideal for sensor lines, LED circuits, control signals, and low-power connections rather than mains or high-current loads.

Full specifications

• Conductor: tinned copper, 7 × 0.16 mm strands
• Cross-sectional area: 0.14 mm² (26 AWG)
• Insulation: PVC, orange
• Outer diameter: approx. 1.2 mm
• Length: 100 m
• Rated voltage: 300 V
• Temperature range: -20 °C to +80 °C
• Max. current rating: approx. 1.5 A
• Conductor resistance: approx. 135 Ω/km
• Compliance: RoHS

Final note

When a solid-core wire is too rigid and a thicker stranded wire is overkill, the Donau Elektronik 119-17 hits the sweet spot. The generous 100-metre length and high-visibility orange jacket make it a practical choice for anyone who regularly builds or repairs electronic devices.
