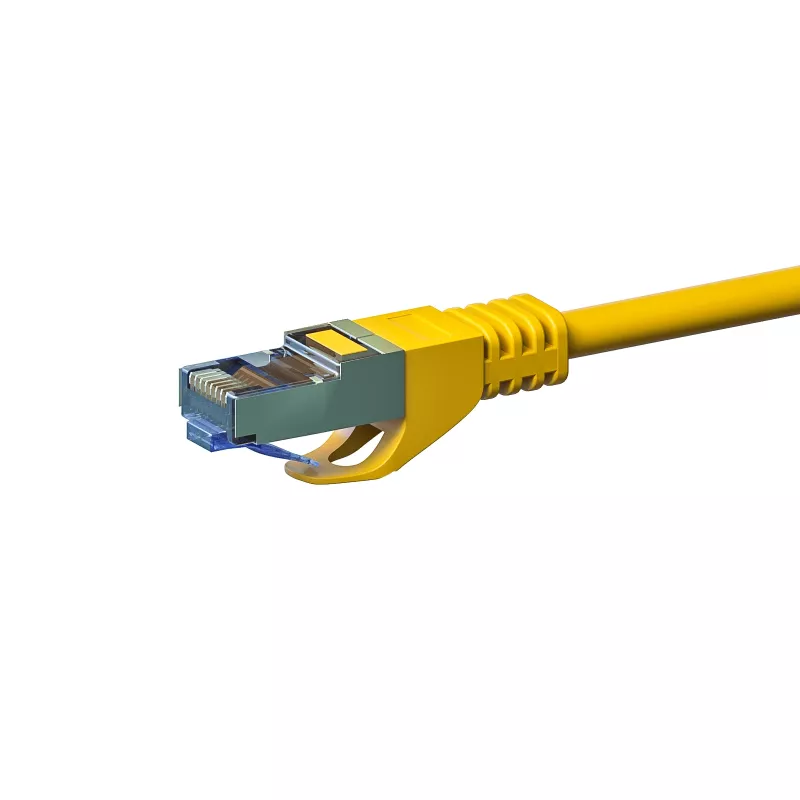

DSIT CAT 6a S/FTP LSOH -verkkopatchkaapeli, 0,25 m, keltainen

10 Gigabit Ethernet over 500 MHz bandwidth in a compact 0.25 m link — this DSIT CAT 6a S/FTP LSOH patch cable delivers maximum performance in tight spaces.

Overview

Engineered for high-density network environments, this 0.25 m yellow patch cable meets Category 6a (Class EA) specifications, supporting data rates up to 10 Gbps. The S/FTP construction with individually foil-shielded pairs (PiMF) and an overall braided screen provides superior immunity to electromagnetic interference, ensuring reliable signal integrity even in noisy installations. The LSOH (Low Smoke Zero Halogen) jacket enhances safety by emitting minimal smoke and toxic fumes in the event of fire, making it suitable for use in public buildings, offices, and data centers where fire safety regulations are strict.

What stands out

• Short 0.25 m length ideal for patching between adjacent ports or within racks
• S/FTP shielding (PiMF) for excellent crosstalk and EMI resistance
• LSOH jacket for low smoke and halogen-free safety
• Gold-plated RJ45 connectors for reliable, corrosion-resistant contacts
• Supports 10GBASE-T and backward compatible with lower speeds
• Stranded copper conductors for flexibility and durability

Technical details

• Cable type: CAT 6a S/FTP network patch cable
• Length: 0.25 m
• Colour: Yellow
• Shielding: S/FTP (PiMF)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Bandwidth: Up to 500 MHz
• Data transfer rate: Up to 10 Gbps
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper, stranded
• Conductor gauge: 26 AWG
• Wiring standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Connector plating: Gold-plated contacts
• Application: LAN, Ethernet, network

Our verdict

When space is at a premium and performance cannot be compromised, this DSIT 0.25 m CAT 6a cable is the perfect solution. Its robust shielding and safety-rated jacket make it a reliable choice for professional installations.
