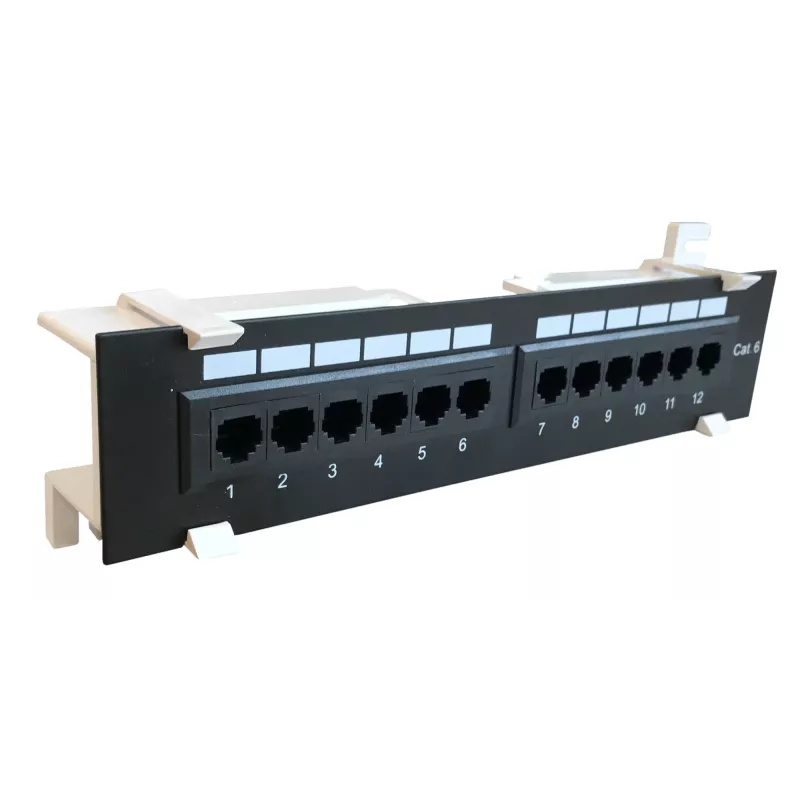

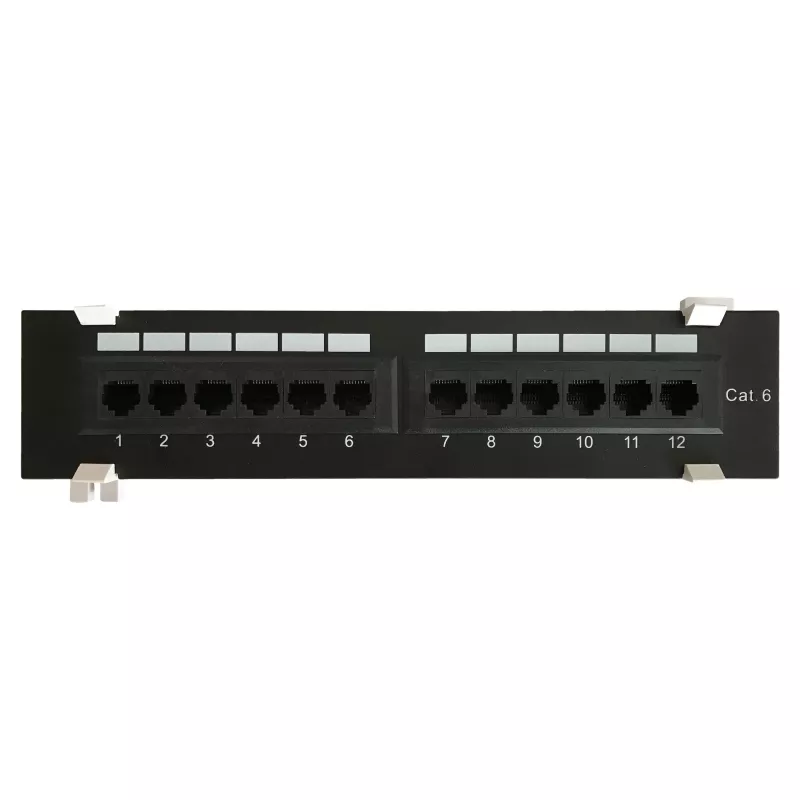

DS-IT CAT 6 seinä-patchpaneeli, 12-porttinen UTP (DS-Patch6-12UTP-WM)

This 12-port Cat 6 wall-mount patch panel provides a reliable, high-performance termination point for unshielded twisted-pair cabling in compact network installations. Its sturdy metal housing and LSA/IDC punch-down terminations ensure secure, long-lasting connections for Gigabit Ethernet and beyond.

Advantages

With support for frequencies up to 250 MHz and data rates up to 1 Gbps, this panel delivers consistent performance for demanding network environments. The wall-mount design saves valuable rack space, making it ideal for small offices, classrooms, or residential enclosures. Gold-plated phosphor bronze contacts resist corrosion and maintain signal integrity over time. Colour-coded TIA/EIA 568A/B wiring labels simplify installation, while the included cable ties and mounting screws allow for quick, tidy setup.

Suitable for

• Small to medium business networks requiring a compact, wall-mounted patching solution
• Educational facilities, retail outlets, and healthcare offices with limited rack space
• Home networks and smart building installations needing a professional termination point
• Technicians looking for a durable, easy-to-install panel compatible with Cat5e and Cat6 cabling

Key specifications

• Category: Cat 6, unshielded (UTP)
• Ports: 12 x RJ45, front-facing

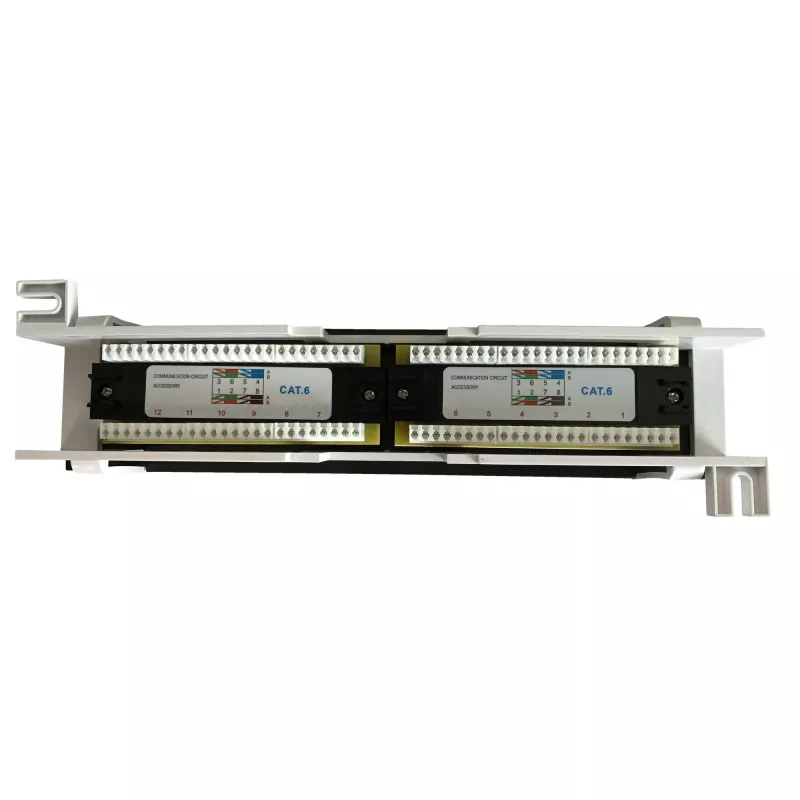

• Rear termination: LSA/IDC, accepts 22–26 AWG solid or stranded conductors
• Wiring scheme: TIA/EIA 568A/B
• Bandwidth: up to 250 MHz
• Data rate: up to 1 Gigabit Ethernet
• Housing: robust metal, wall-mount with screw holes
• Contact material: phosphor bronze with gold plating
• Compatibility: Cat5e and Cat6 cables
• Installation: requires LSA/IDC punch-down tool (not included)

Recommendations

For best results, use with solid-core Cat6 UTP cable and a quality punch-down tool. Ensure proper cable strain relief and maintain bend radius as per industry standards. This panel is an excellent choice for structured cabling projects where a wall-mounted, space-saving solution is required.
