EasyLan EL fixLink -alapaneeli Consolidation Point 12 porttia CKVPL0121E

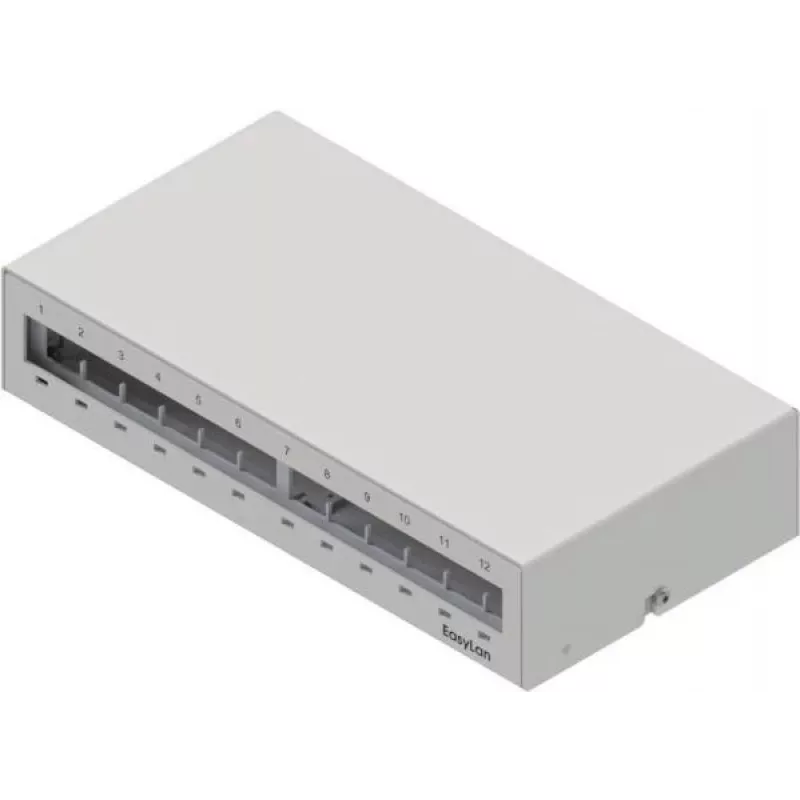

The EasyLan EL fixLink Unterbaupanel Consolidation Point 12 Port (CKVPL0121E) is a high-performance shielded consolidation point designed for flexible office and zone cabling. It provides a reliable and organized connection point for up to 12 RJ45 ports, supporting Cat.6A (Class EA) performance for 10 Gigabit Ethernet. The panel is constructed from sheet steel with a light grey (RAL 7035) finish and features LSA+ (IDC) termination for AWG 24-22 cables. It includes a grounding bolt and 360° shielding contact for optimal electromagnetic compatibility.

Advantages

This consolidation point simplifies cable management and reduces installation time. Its unterbaupanel design allows for under-desk, wall, or floor box mounting, making it ideal for modern office environments. The shielded design ensures minimal crosstalk and interference, supporting PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt) for powering devices directly through the network.

Suitable for

• Flexible office cabling and zone cabling
• Under-desk, wall, or floor box installations
• High-speed data networks requiring 10 Gigabit Ethernet
• Power over Ethernet applications (PoE, PoE+, 4PPoE)

Key specifications

• Product Type: Consolidation Point (CP)
• Number of Ports: 12
• Port Type: RJ45
• Performance Category: Cat.6A (Class EA)
• Shielding: Shielded (FTP/STP)
• Termination Type: LSA+ (IDC)
• Supported Wire Gauge: AWG 24-22
• Mounting Type: Unterbaupanel (Under-desk, Wall, Floor Box)
• Housing Material: Sheet Steel
• Housing Color: Light Grey (RAL 7035)
• Standards Compliance: ISO/IEC 11801-2 Amd.1, EN 50173-2
• Grounding Connection: M6 Grounding Bolt
• Cable Entry Direction: Rear
• Shielding Contact: 360°
• Integrated Strain Relief: Yes
• Maximum Transmission Speed: 10 Gigabit Ethernet
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Application: Flexible Office Cabling, Zone Cabling

Recommendations

For optimal performance, use with Cat.6A shielded patch cables and ensure proper grounding. This consolidation point is ideal for structured cabling systems requiring high reliability and future-proof 10 GbE support.
