Equip 25-porttinen Cat.3 RJ45 ISDN -patchpanel, vaaleanharmaa

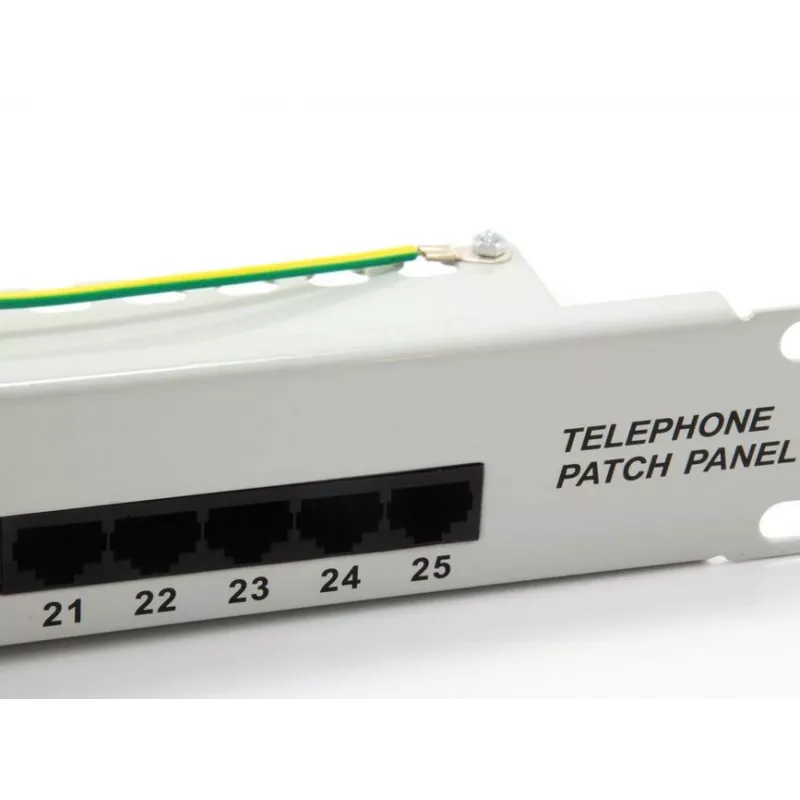

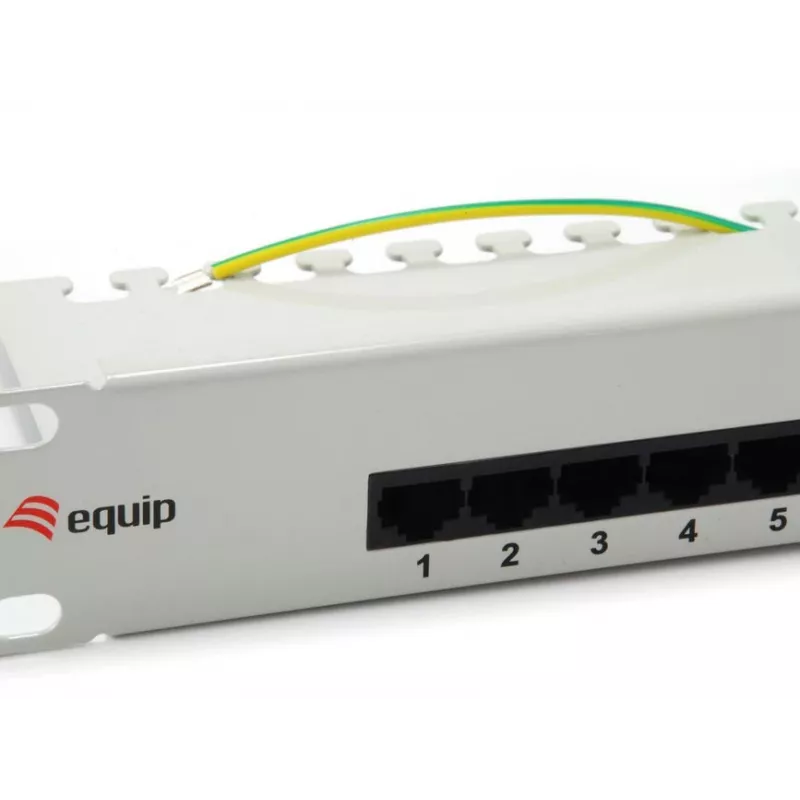

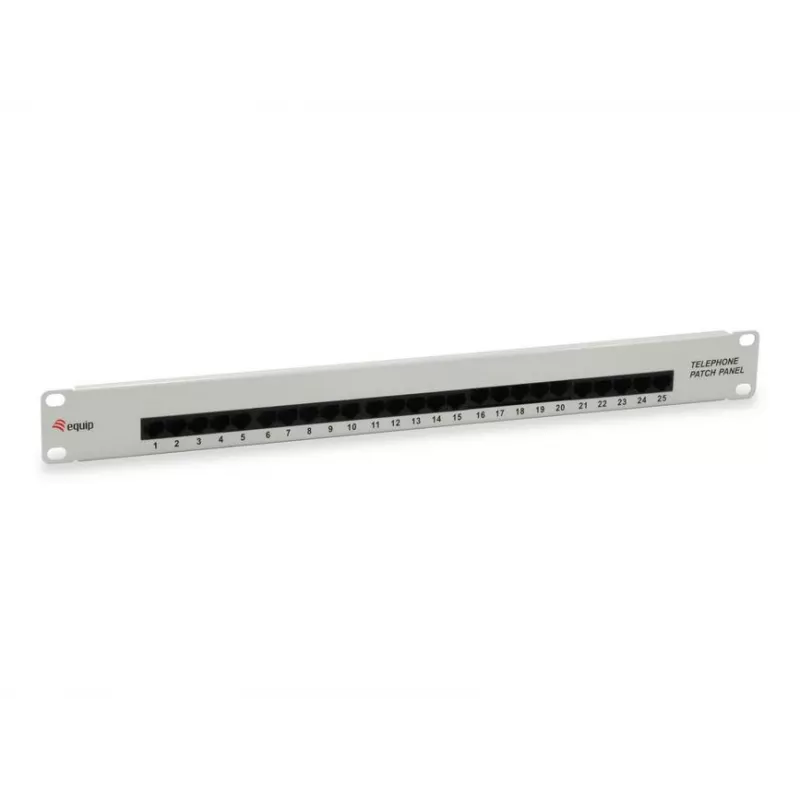

The Equip 25-Port Cat.3 RJ45 ISDN Patch Panel is a 19" 1U metal telephone distribution unit designed for rack mounting. It provides 25 RJ45 ports compatible with Cat3 wiring and supports both LSA and 110 termination standards. The panel integrates a cable management system for improved routing and strain relief, and each port is clearly marked with its port number. Dimensions: 483 mm × 100 mm × 44.5 mm; weight: 1.05 kg; colour: light grey.

Advantages

The patch panel offers a compact 1U design for standard racks, a durable metal construction, and clear port numbering for easy identification. Built-in cable management supports orderly cable routing and reduces strain on terminated connections. Compatibility with LSA and 110 standards ensures flexibility in installation and wiring practices, while RoHS compliance meets environmental requirements.

Suitable for

• Telephone and ISDN distribution in small to medium communications racks
• Wiring closets requiring Cat3 RJ45 terminations
• Installations needing organized cable routing and port identification

Key specifications

• Brand: EQUIP
• Model / MPN: 125296
• EAN: 4015867207482
• Ports: 25 RJ45 (Cat3)
• Mounting: 19" rack, 1U
• Termination standards: LSA and 110
• Material: Metal
• Colour: Light grey
• Dimensions (W×H×D): 483 × 100 × 44.5 mm
• Weight: 1.05 kg
• RoHS compliant

How to use

Mount the patch panel in a standard 19" rack occupying 1U of space. Terminate incoming Cat3 cables to the rear LSA or 110 punch-down blocks according to the wiring scheme being used; follow the printed port numbering to match each termination to the corresponding front RJ45 jack. Use the integrated cable management features to guide and secure cables, reducing strain on terminations and maintaining an organized rack.

Recommendations

For reliable performance, use Cat3-rated cabling and appropriate punch-down tools for LSA or 110 terminations. Label both ends of patched connections and avoid excessive cable tension; place the panel within a properly ventilated rack environment.
