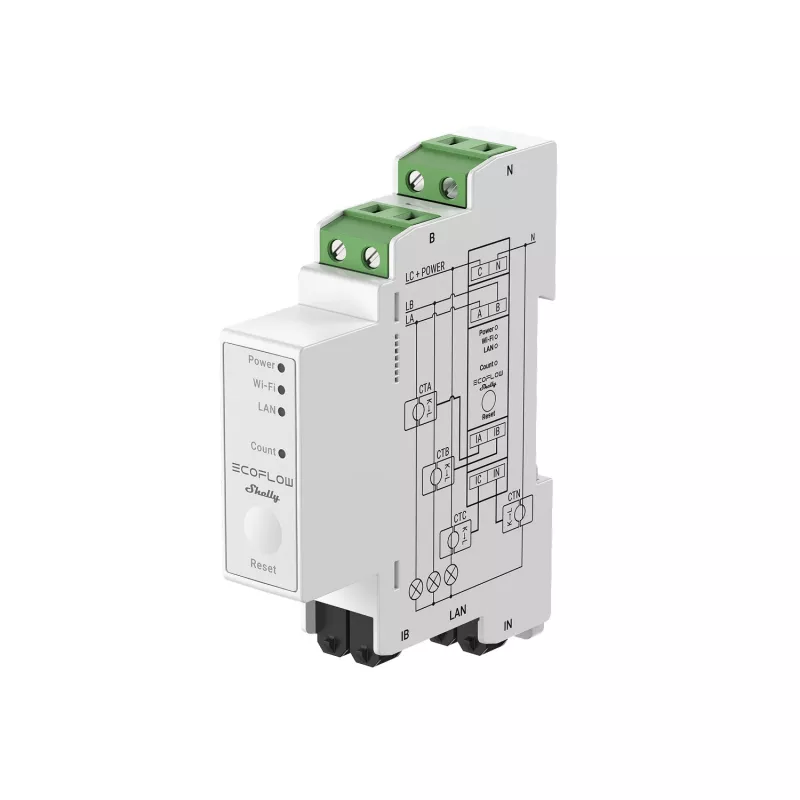

EcoFlow x Shelly älymittari (EF-OS-SM003-SMSHEL)

The EcoFlow x Shelly Smart Meter stands out by combining EcoFlow's energy ecosystem with Shelly's proven metering technology, enabling precise single-phase monitoring for solar self-consumption optimization. Unlike generic energy monitors, it integrates directly with the EcoFlow PowerStream Microinverter, providing real-time data to balance generation and consumption.

Highlights

• Non-invasive installation with two 120A clamp-on current transformers
• Measures voltage, current, active/reactive power, power factor, and energy (kWh)
• Wireless Wi-Fi connectivity (2.4 GHz) with EcoFlow and Shelly app support
• DIN rail mountable main unit with low power consumption (<1W)
• Operating temperature range from -20°C to 40°C

In daily use

Monitor your home's energy flow in real time and access historical data to optimize self-consumption. The meter works with the EcoFlow PowerStream Microinverter, helping you use more solar power directly and reduce grid dependence. Setup is straightforward: clamp the CTs around the phase conductor, connect to Wi-Fi, and manage everything from the EcoFlow or Shelly app.

Full specifications

• Measurement type: Single-phase
• Maximum current rating: 120A per phase
• Voltage range: 100-240V AC
• Communication protocol: Wi-Fi 802.11 b/g/n (2.4 GHz)
• Current transformers: 2x 120A clamp-on CTs included
• Measured parameters: Voltage, current, active power, reactive power, power factor, energy (kWh)
• Compatibility: EcoFlow PowerStream Microinverter
• App integration: EcoFlow App, Shelly App
• Installation method: Non-invasive (CTs), DIN rail mountable (main unit)
• Operating temperature: -20°C to 40°C
• Power consumption: <1W
• Energy monitoring: Real-time and historical data
• Connectivity: Wireless
• Data logging: Yes

Final note

Designed for seamless integration with EcoFlow PowerStream, this smart meter is a key component for efficient home energy management.
