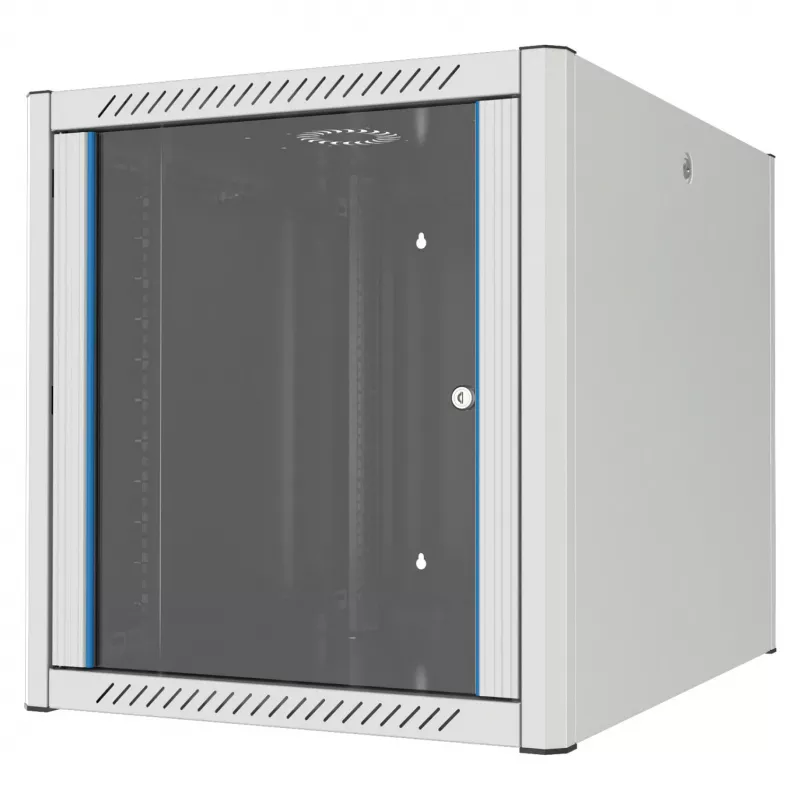

EFB Elektronik 19" seinäkotelo 16U syvyys 800mm esikoottu RAL7035 (691916GR.80)

The EFB Elektronik 19" Wall-mounted Enclosure 16U Depth 800mm Pre-assembled RAL7035 is a robust and secure housing solution for your 19-inch rack-mountable equipment. Designed for wall mounting, this enclosure offers a space-saving and organized way to install network, audio, or industrial components. With 16 rack units of height and a depth of 800mm, it provides ample space for servers, switches, patch panels, and other devices. The enclosure is pre-assembled for quick deployment and features a light grey (RAL 7035) steel sheet construction with a safety glass front door.

Advantages

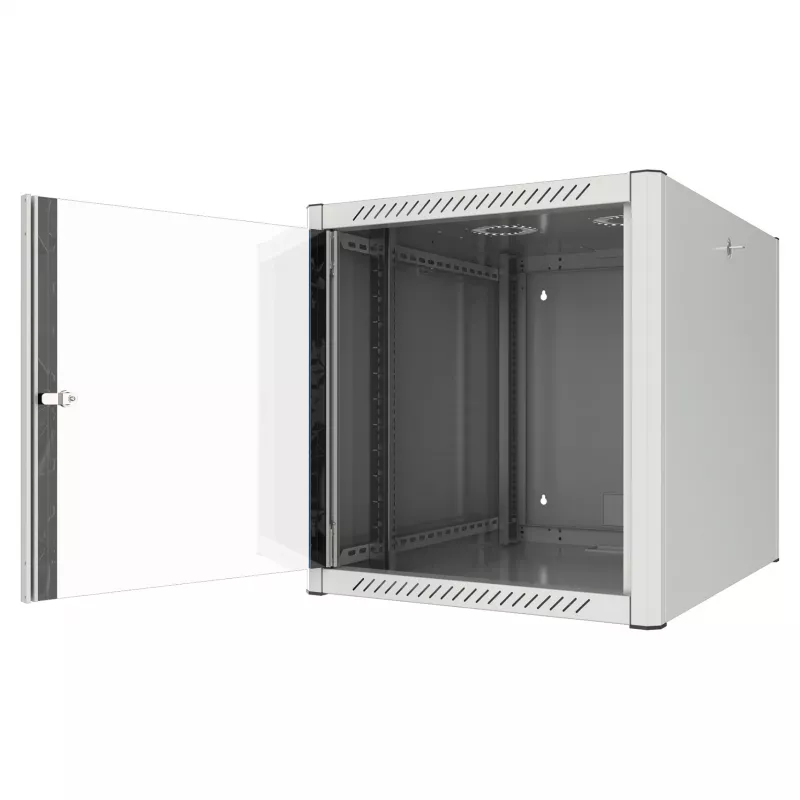

Pre-assembled design saves installation time and effort. The lockable safety glass door with a swing handle and profile half cylinder provides security while allowing visibility of equipment. Removable and lockable side panels offer easy access for cable management and maintenance. Cable entry points at the top and bottom with brush strips keep cables organized and dust-free. Depth-adjustable mounting rails accommodate various equipment depths.

Suitable for

• Network cabinets for IT and telecommunications equipment
• Audio/video installations
• Industrial control systems
• Server rooms and data centers
• Any environment requiring secure wall-mounted 19" rack storage

Key specifications

• Rack Units: 16U
• Mounting Standard: 19 inch
• External Dimensions (WxHxD): 600 x 820 x 800 mm
• Usable Depth: approx. 750 mm
• Colour: Light Grey (RAL 7035)
• Material: Steel sheet
• Front Door: Safety glass with lock
• Door Opening Angle: 180°
• Side Panels: Removable and lockable
• Cable Entry: Top and bottom with brush strips
• Load Capacity: 60 kg
• Protection Class: IP20
• Assembly Status: Pre-assembled
• Mounting Rails: 2 pairs, depth-adjustable
• Ventilation: Passive, prepared for fan unit installation
• Mounting Type: Wall mount
• Included Accessories: 2 keys, 20 cage nuts, 20 screws, 20 washers

Recommendations

For optimal cable management, use the included brush strips and consider additional cable ties. Ensure the wall mounting surface can support the total weight of the enclosure and equipment. For active cooling, install a fan unit in the prepared ventilation slots.
