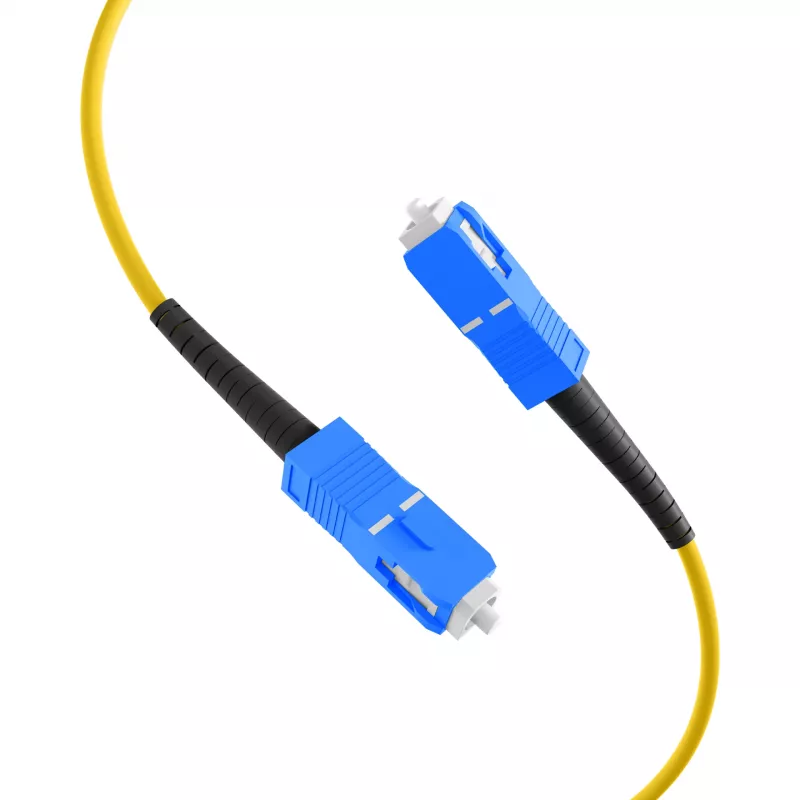

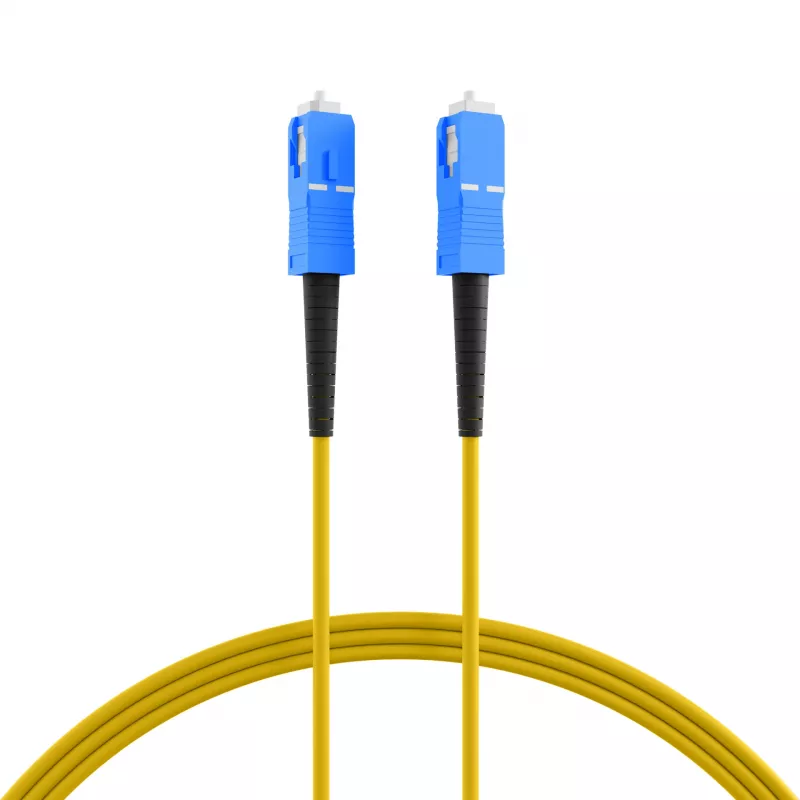

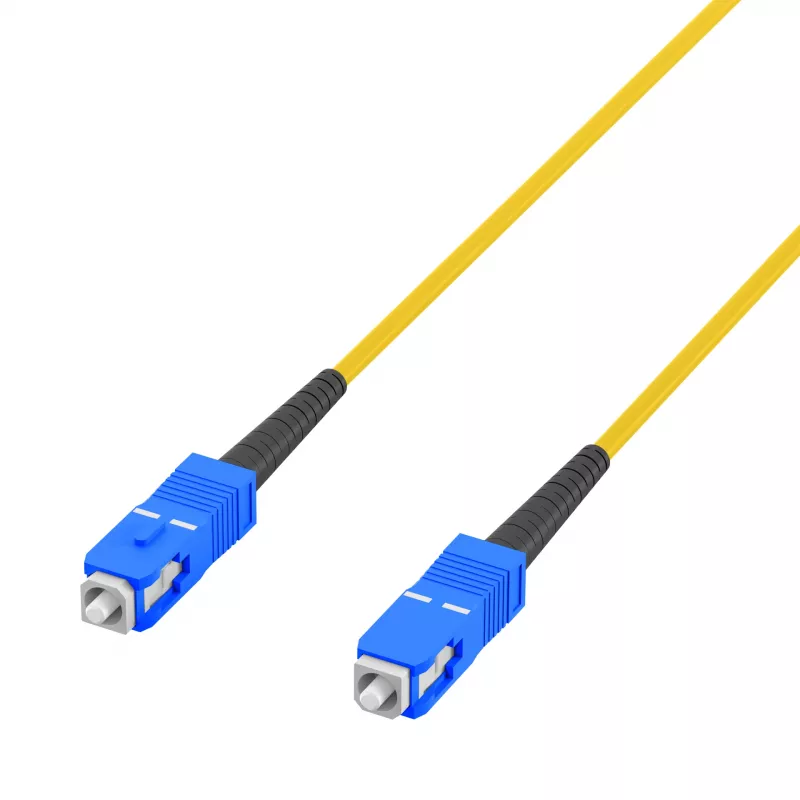

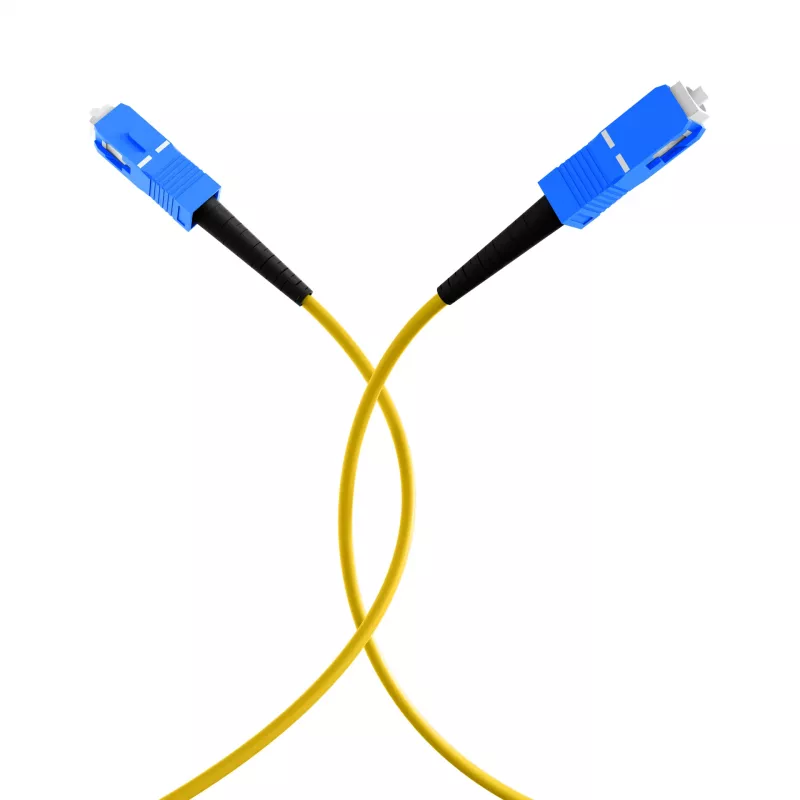

EFB-Elektronik Simplex-kuitujohto SC-SC G657.A2 5 m 3,0 mm keltainen 9/125 µm

The EFB-Elektronik Simplex LWL Patchkabel SC-SC is a high-quality single-mode fiber optic patch cable designed for reliable data transmission in telecommunications and data center environments. With a length of 5 meters and a 3.0 mm diameter, this cable features SC connectors on both ends and is compliant with ITU-T G.657.A2 standard, offering enhanced bend insensitivity for flexible installation.

Advantages

This fiber optic patch cable provides low insertion loss and high return loss, ensuring excellent signal integrity. The bend-insensitive design allows for tight bends without compromising performance, making it ideal for space-constrained installations. The yellow jacket provides easy identification for single-mode applications.

Suitable for

• Telecommunications networks
• Data centers
• FTTx (Fiber to the x) deployments
• Local area networks (LANs) requiring single-mode fiber

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode
• Fiber Count: Simplex (1 Fiber)
• Connector Type: SC to SC
• Fiber Standard: ITU-T G.657.A2
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Cable Length: 5 m
• Cable Diameter: 3.0 mm
• Jacket Color: Yellow
• Connector Polish Type: UPC
• Bend Insensitivity: Yes
• Minimum Bend Radius: 7.5 mm
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (Min): ≥ 50 dB
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.20 dB/km

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with standard SC fiber optic interfaces.
