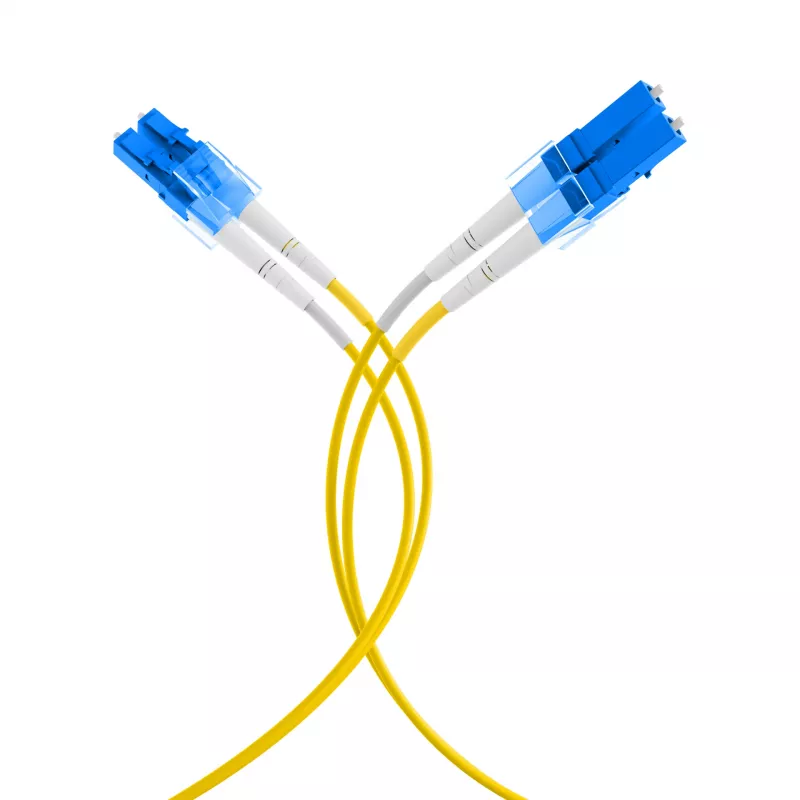

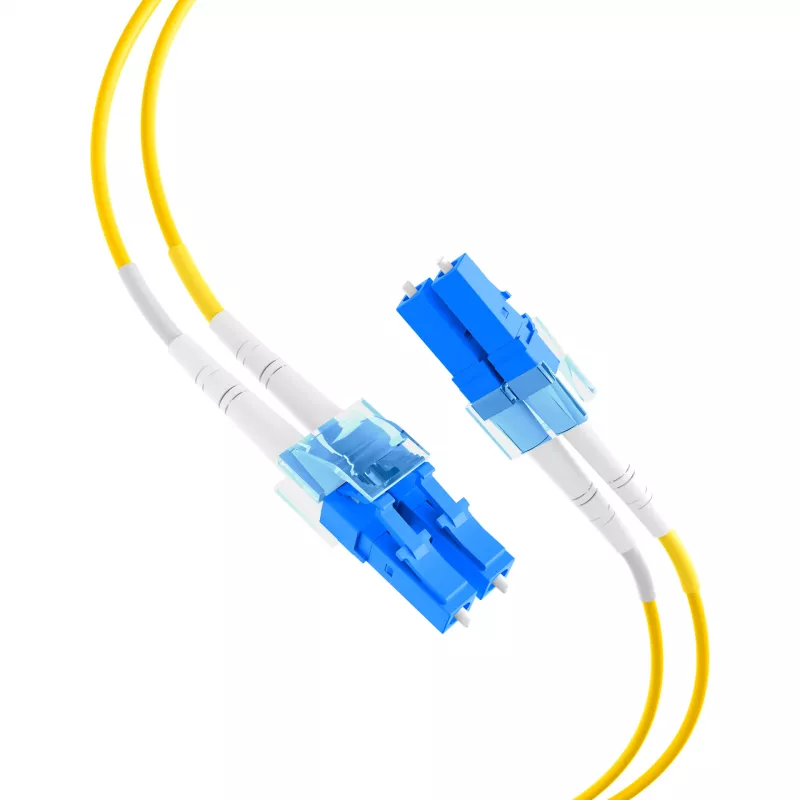

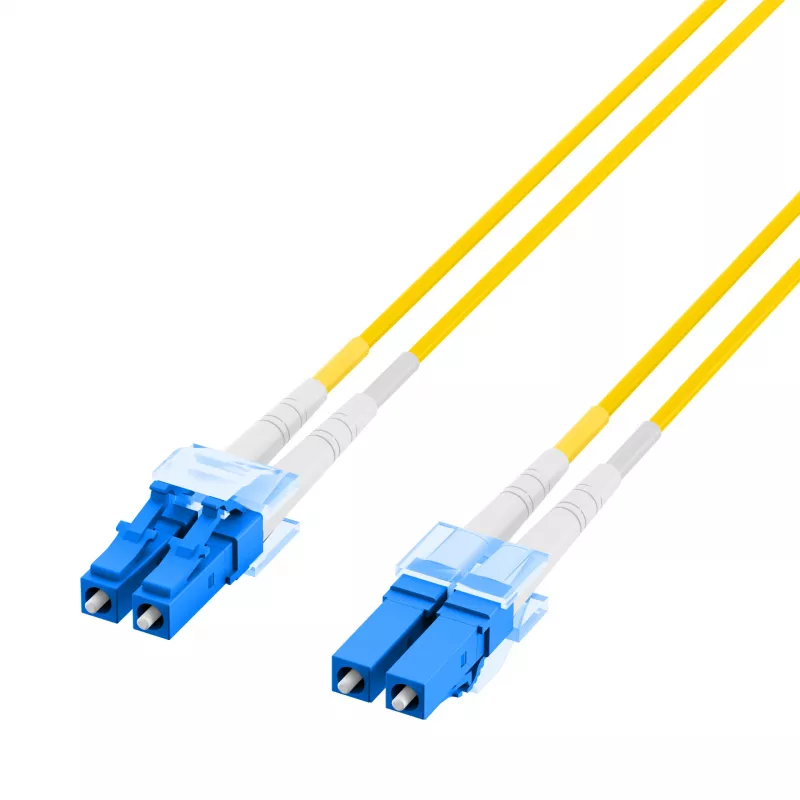

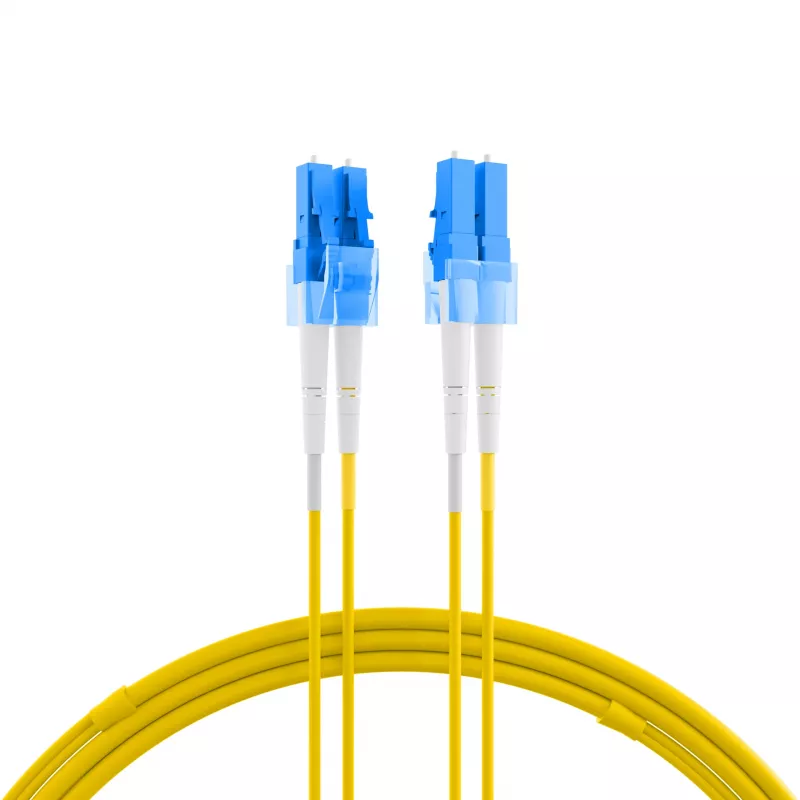

EFB Elektronik IPL-DF-LCULCU-2-0300 - 3 m - OS2 - LC - LC Duplex kuitu-patchkaapeli

The EFB Elektronik IPL-DF-LCULCU-2-0300 is a high-quality duplex fiber optic patch cable designed for reliable single-mode transmission. With a length of 3 meters and OS2 classification, this cable is ideal for data centers, telecommunications, and local area networks. It features LC/UPC connectors on both ends, ensuring low insertion loss and high return loss for optimal performance.

Advantages

This patch cable offers exceptional signal integrity with insertion loss ≤0.3 dB and return loss ≥50 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, reducing toxic fumes and smoke in case of fire. The yellow color ensures easy identification for single-mode applications.

Suitable for

• Data centers requiring high-density cabling
• Telecommunications infrastructure
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• FTTx deployments

Key specifications

• Fiber Mode: Single-mode (OS2)
• Connectors: 2x LC/UPC duplex
• Core/Cladding: 9/125 µm
• Cable Diameter: 3.0 mm
• Jacket Material: LSZH
• Polarity: A-B (Crossed)
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC interfaces and supports high-speed data transmission up to 10 Gbps and beyond.
