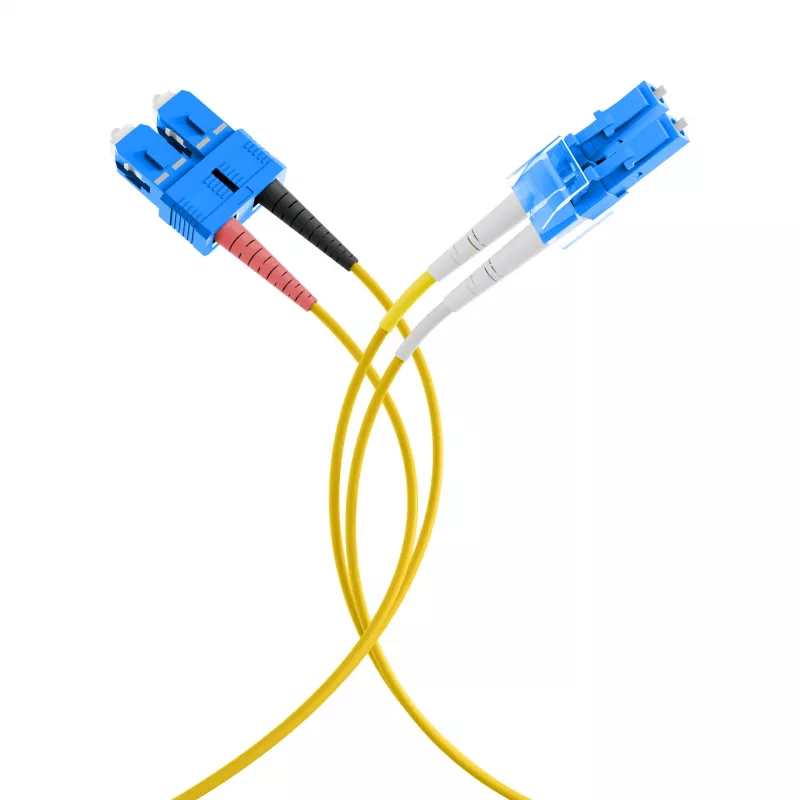

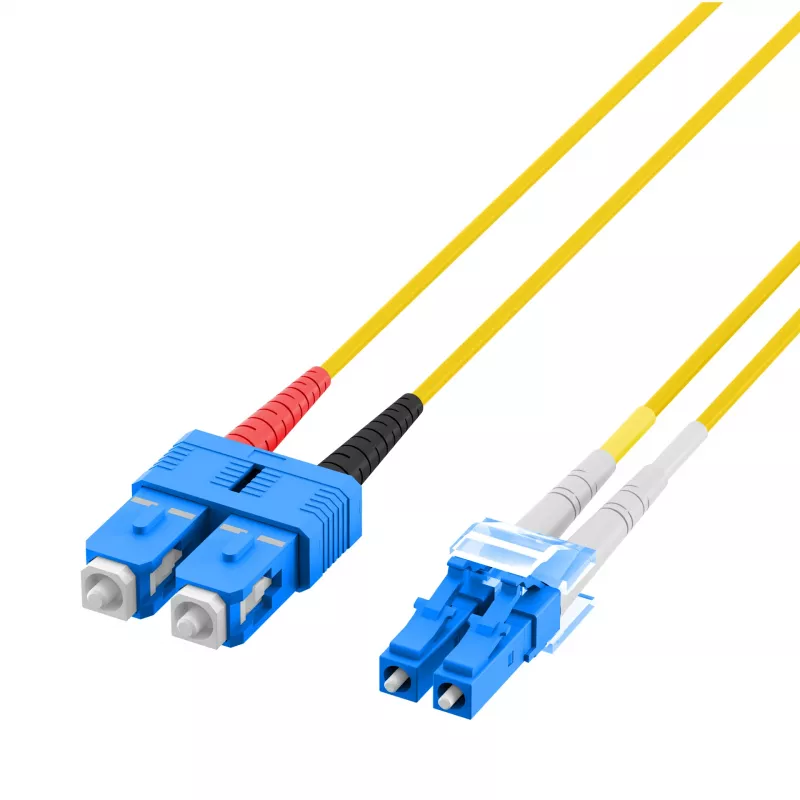

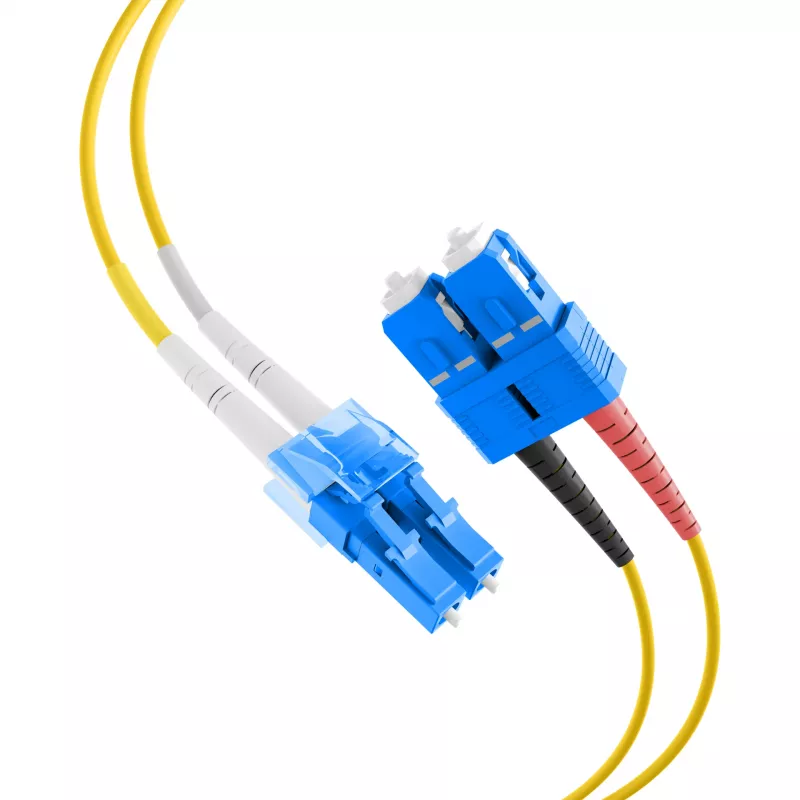

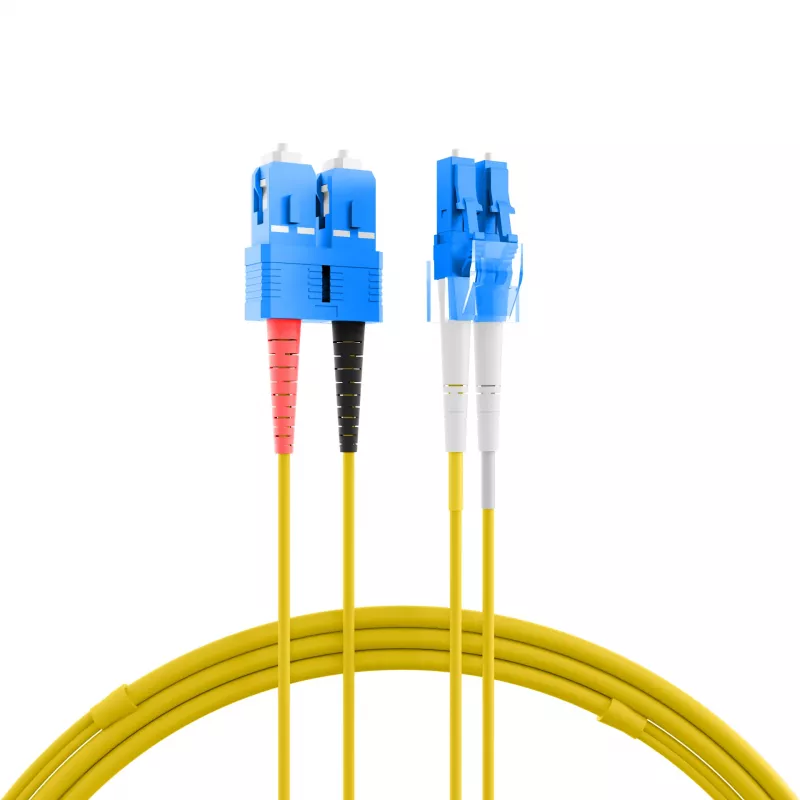

EFB Elektronik IPL-DF-LCUSCU-2-1000 kuitu-patchkaapeli, OS2, 10 m, LC/SC, Duplex, LSZH, keltainen

The EFB Elektronik IPL-DF-LCUSCU-2-1000 is a high-quality fiber optic patch cable designed for reliable single-mode data transmission. With a length of 10 meters and duplex configuration, this cable is ideal for connecting network devices in data centers, telecommunications rooms, and enterprise networks. It features LC/UPC to SC/UPC connectors, OS2 fiber class, and a durable LSZH jacket for safety and performance.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring excellent signal integrity. The LSZH jacket reduces toxic fumes in case of fire, making it suitable for indoor installations. The duplex design supports bidirectional communication, and the yellow color allows easy identification of single-mode cables.

Suitable for

• Data center cabling
• Telecommunications networks
• Enterprise LAN and WAN connections
• FTTx and CATV systems

Key specifications

• Fiber mode: Single-mode (OS2)
• Connectors: LC/UPC to SC/UPC
• Cable length: 10 m
• Number of fibers: 2 (duplex)
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Yellow
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Cable diameter: 3.0 mm
• Operating temperature: -20°C to 70°C
• Standards: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC ports. Store in a clean, dry environment.
