EFB Elektronik IPL-DF-LCUSCU-3-0200 kuitu-patchkaapeli 2 m OM3 LC - SC

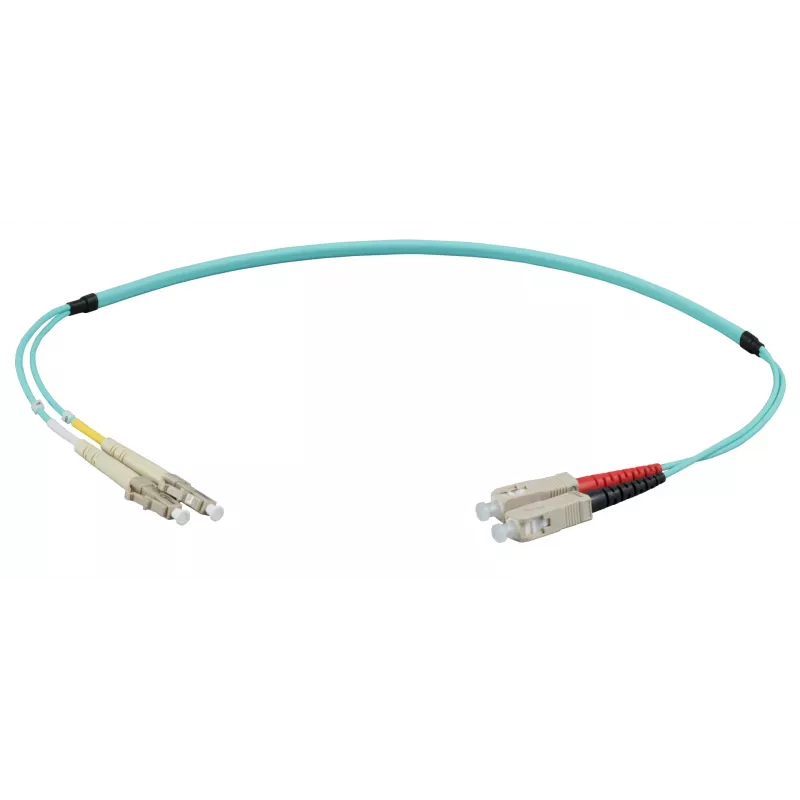

The EFB Elektronik IPL-DF-LCUSCU-3-0200 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 2 meters and OM3 multimode fiber, this duplex cable supports 10, 40, and 100 Gigabit Ethernet applications. It features LC to SC connectors, ensuring compatibility with a wide range of network equipment.

Advantages

This patch cable offers low insertion loss (max 0.3 dB) and high return loss (min 30 dB), ensuring excellent signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, making it suitable for use in confined spaces. The aqua-colored jacket allows for easy identification of OM3 fiber.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• Enterprise LANs
• High-speed Ethernet applications (10GBASE-SR, 40GBASE-SR4, 100GBASE-SR10)

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM3
• Connector A: LC
• Connector B: SC
• Cable Length: 2 m
• Number of Fibers: 2 (Duplex)
• Fiber Core Diameter: 50 µm
• Fiber Cladding Diameter: 125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Cable Diameter: 3 mm
• Insertion Loss (max): 0.3 dB
• Return Loss (min): 30 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -20°C to 70°C
• Standards Compliance: IEC 61754-20, IEC 61754-4, TIA/EIA-568-C.3, ISO/IEC 11801
• Polarity: A-B (Cross-over)
• Ferrule Material: Zirconia Ceramic
• Minimum Bend Radius: 30 mm

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for high-speed network connections where reliability and signal quality are critical.
