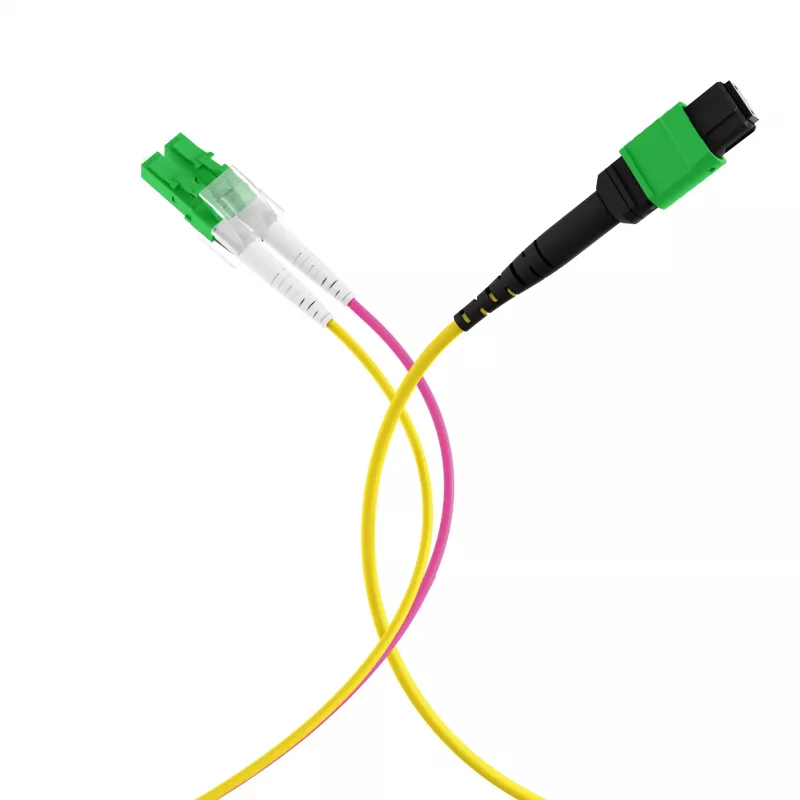

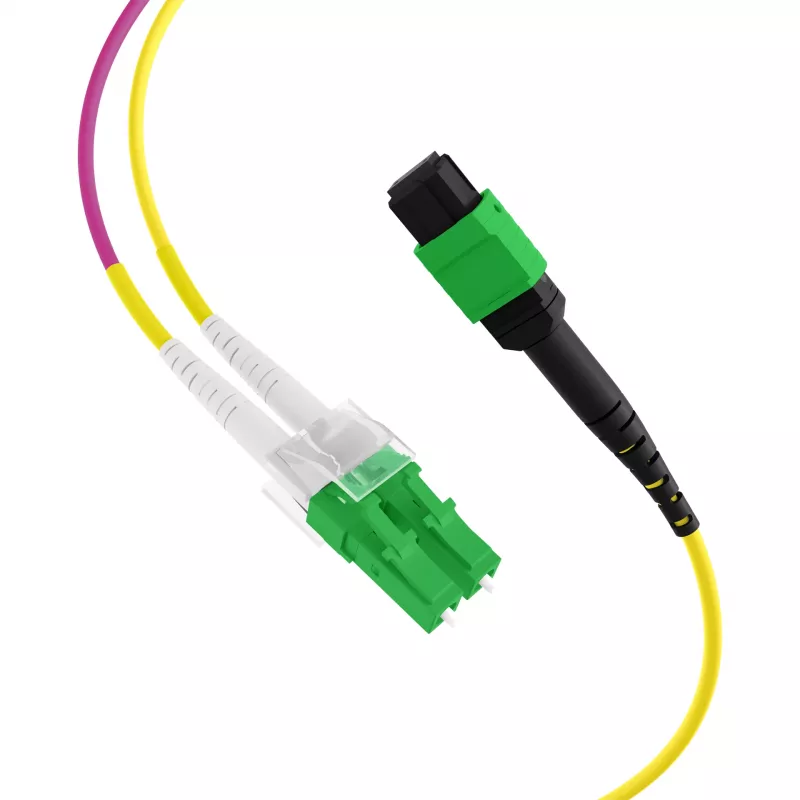

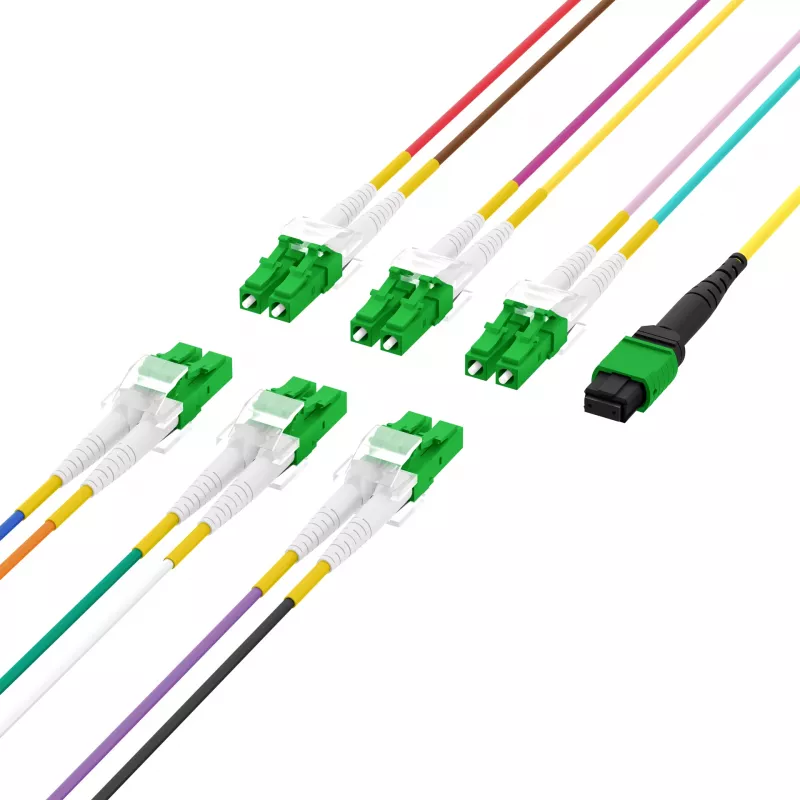

EFB Elektronik MTPF12LCAPC-1 - 1 m - OS2 - MTP - 12x LC kuitupurku­kaapeli

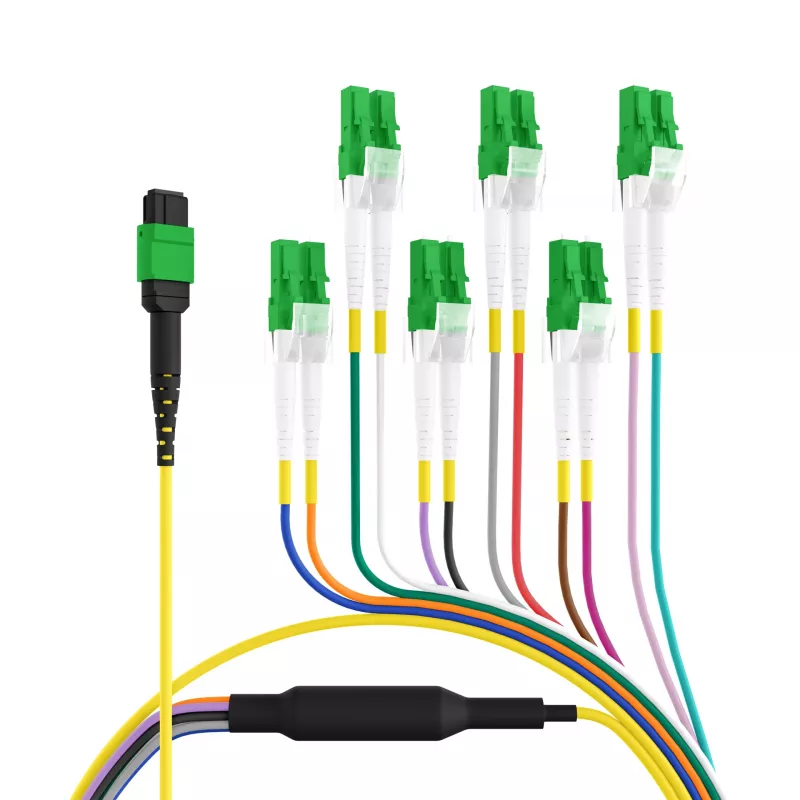

The EFB Elektronik MTPF12LCAPC-1 is a high-performance fiber optic breakout cable designed for demanding data center and telecommunications environments. It features a 12-fiber MTP/MPO connector on one end and 12 individual LC/APC connectors on the other, providing a seamless transition from high-density trunk cabling to individual device connections. With OS2 single-mode fiber and LSZH jacket, this cable ensures reliable, low-loss transmission over long distances while meeting strict safety standards.

Advantages

This breakout cable offers exceptional signal integrity with low insertion loss (≤0.35 dB for MTP, ≤0.2 dB for LC/APC) and high return loss (≥60 dB for LC/APC). The APC polish on LC connectors minimizes back reflection, making it ideal for high-bandwidth applications. The LSZH jacket reduces toxic smoke in case of fire, enhancing safety in confined spaces. Its 1-meter length is perfect for short patch connections within racks or between patch panels and active equipment.

Suitable for

• Data center interconnects and high-density cabling
• Telecommunications networks and central offices
• Fiber-to-the-home (FTTH) distribution points
• Local area networks (LAN) requiring single-mode performance
• Test and measurement setups

Key specifications

• Connector A: MTP/MPO (12-fiber, male with pins)
• Connector B: 12x LC/APC
• Fiber mode: Single-mode OS2
• Fiber count: 12
• Cable length: 1 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Yellow
• Insertion loss (MTP): ≤0.35 dB
• Insertion loss (LC/APC): ≤0.2 dB
• Return loss (LC/APC): ≥60 dB
• Fiber core/cladding: 9/125 µm
• Operating wavelengths: 1310 nm, 1550 nm
• Cable diameter: 3.0 mm
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure proper handling and cleaning of all connectors before use. This cable is compatible with standard MTP/MPO and LC/APC interfaces. Pair with appropriate patch panels or transceivers for best results.
