EFB Elektronik runkokaapeli U-DQ ZN BH OM4 8G 1x8 LC-LC 170m Dca LSZH - 170 m (O8322S170OM4)

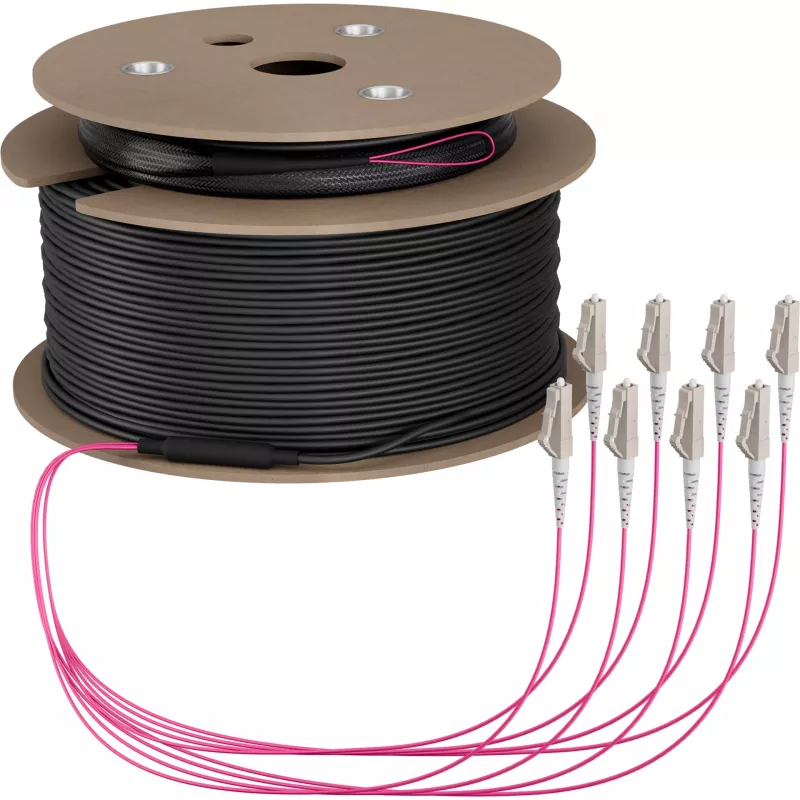

Data center technicians and network engineers rely on this EFB Elektronik trunk cable for high-density fiber optic backbone links. The U-DQ ZN BH construction with 8 multimode OM4 fibers in a central loose tube offers a compact, non-metallic solution for structured cabling between distribution areas. Pre-terminated with LC connectors on both ends, the 170-meter length is ideal for spanning large facilities or connecting equipment across floors.

Key specifications

• Cable type: Fiber optic trunk cable
• Fiber mode: Multimode OM4
• Number of fibers: 8

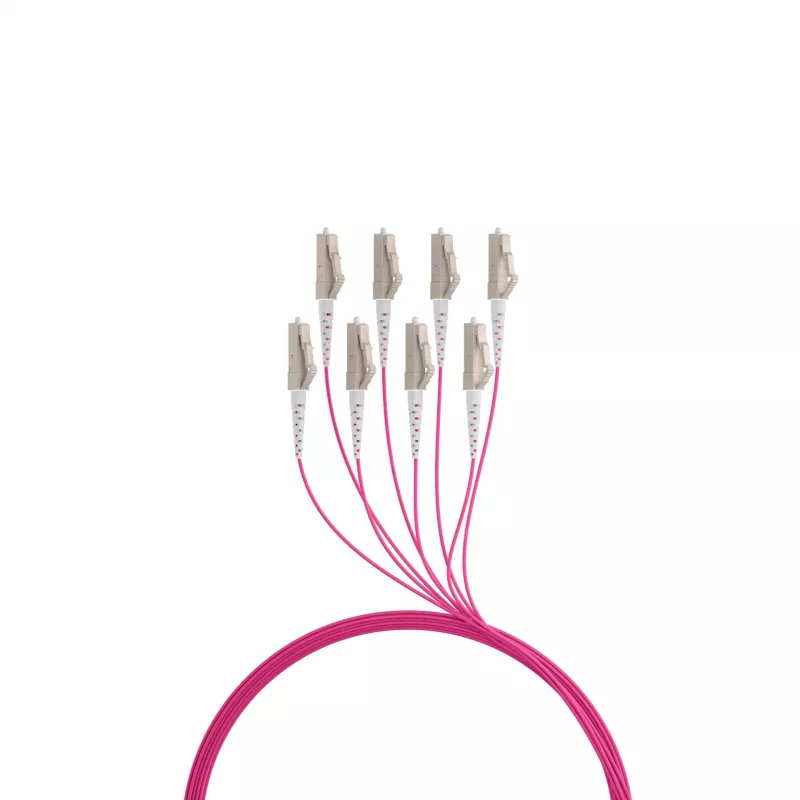

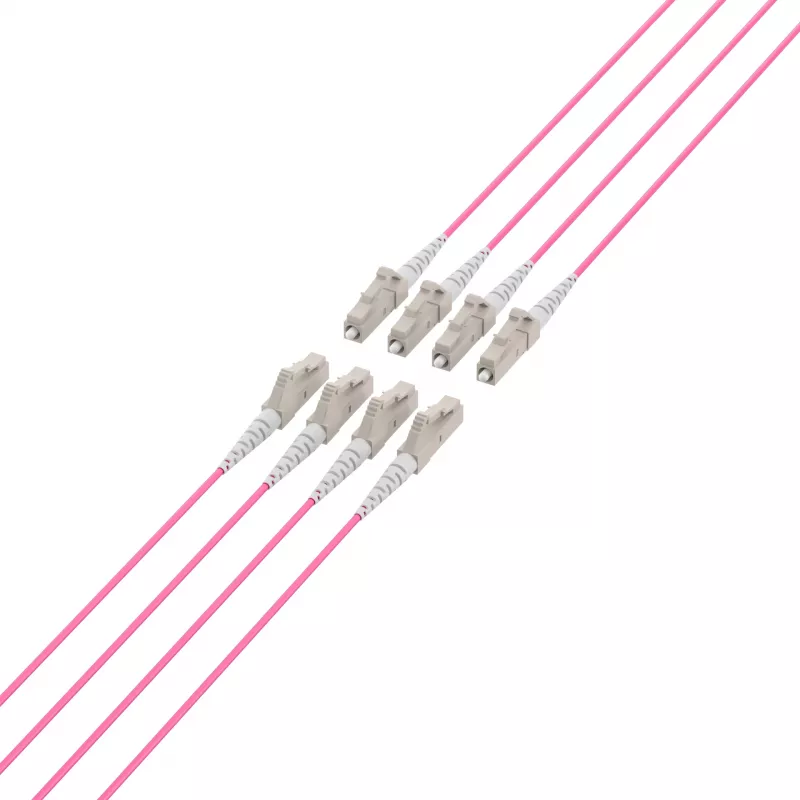

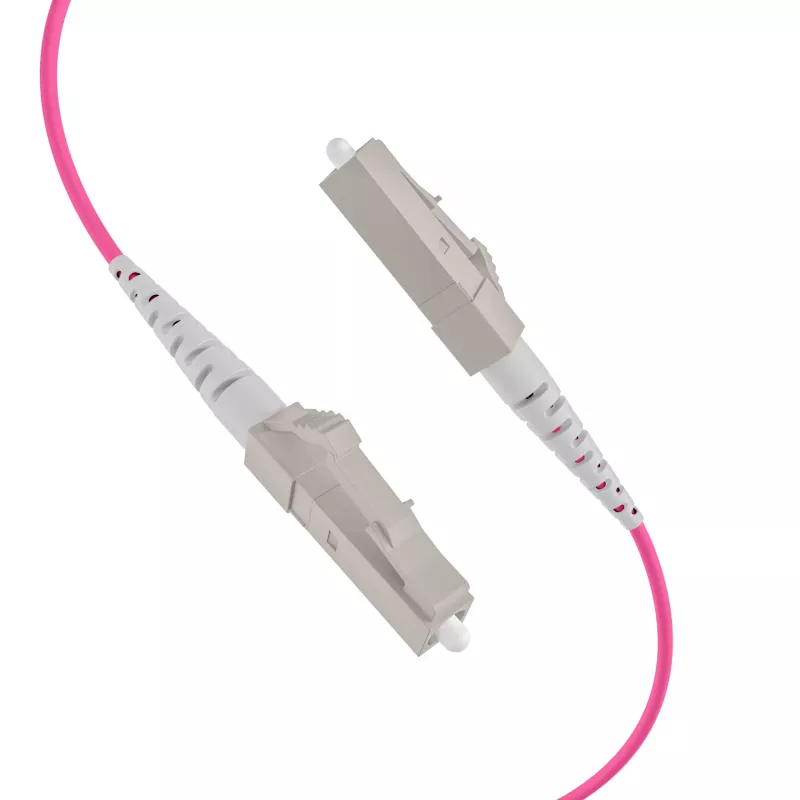

• Connector type (both ends): LC
• Length: 170 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• CPR fire class: Dca
• Cable construction: U-DQ ZN BH (Universal, Central Loose Tube, Non-metallic Strain Relief)
• Fiber core diameter: 50 µm
• Fiber cladding diameter: 125 µm
• Supported wavelengths: 850 nm, 1300 nm
• Bandwidth (850 nm): 4700 MHz*km
• Bandwidth (1300 nm): 500 MHz*km
• Typical insertion loss (per connector pair): < 0.3 dB
• Typical return loss (per connector): > 30 dB
• Cable color: Aqua
• Operating temperature: -20°C to 60°C
• Storage temperature: -20°C to 70°C

Why choose it

The OM4 fiber supports 10G, 40G, and 100G Ethernet up to 550 meters at 850 nm, making it future-ready for high-speed data center applications. The LSZH jacket and Dca fire rating ensure low smoke and toxic gas emission in case of fire, critical for enclosed spaces. The central loose tube design provides excellent protection against mechanical stress while remaining flexible for installation.

Ideal use cases

• Data center backbone cabling between racks and distribution areas
• Enterprise LAN and SAN infrastructure
• High-density fiber optic links in campus networks

Good to know

The cable is pre-terminated and factory tested, reducing on-site termination time and ensuring consistent performance. The aqua jacket color identifies OM4 multimode fiber per industry standards.
