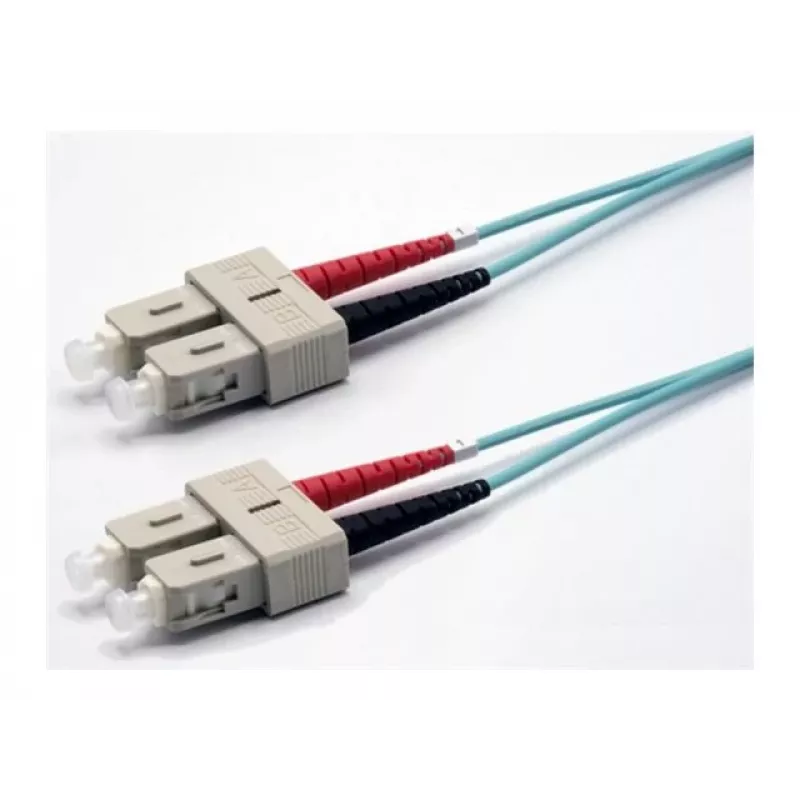

Ekivalan OM3 Duplex kuitu-patchkaapeli SC/SC 3 m aqua LSZH COZOM3DCDC2SA0030A

This OM3 duplex patch cable is optimised for 10G, 40G and 100G Ethernet over short distances, with a 50/125 µm core and aqua LSZH jacket for easy identification and safety in dense installations.

Highlights

• SC to SC duplex connectors for reliable multimode links
• OM3 fibre supports 10GbE up to 300 m and 40/100GbE up to 100 m
• LSZH jacket reduces toxic smoke in case of fire
• Low insertion loss ≤ 0.3 dB and return loss ≥ 30 dB

In daily use

The 3-metre length is ideal for patching between switches, servers and patch panels in data centres or equipment rooms. The duplex design keeps transmit and receive fibres together, while the aqua colour follows TIA-598-C.3 for OM3 identification.

Full specifications

• Fibre type: OM3 multimode 50/125 µm
• Connectors: SC/SC duplex
• Length: 3 m
• Jacket: LSZH, aqua
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Attenuation: 3.5 dB/km @ 850 nm, 1.5 dB/km @ 1300 nm
• Bandwidth: 1500 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Operating temperature: -20°C to +70°C
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173-1

Final note

Ready for high-speed multimode networks where performance and safety matter.
