EMITER sähkökeskus liitetty DC-hermeettinen IP65-EMITTER Noark 1000V Type 2 DC-ylijännitesuojalla, 6x PV-string, 6x MPPT

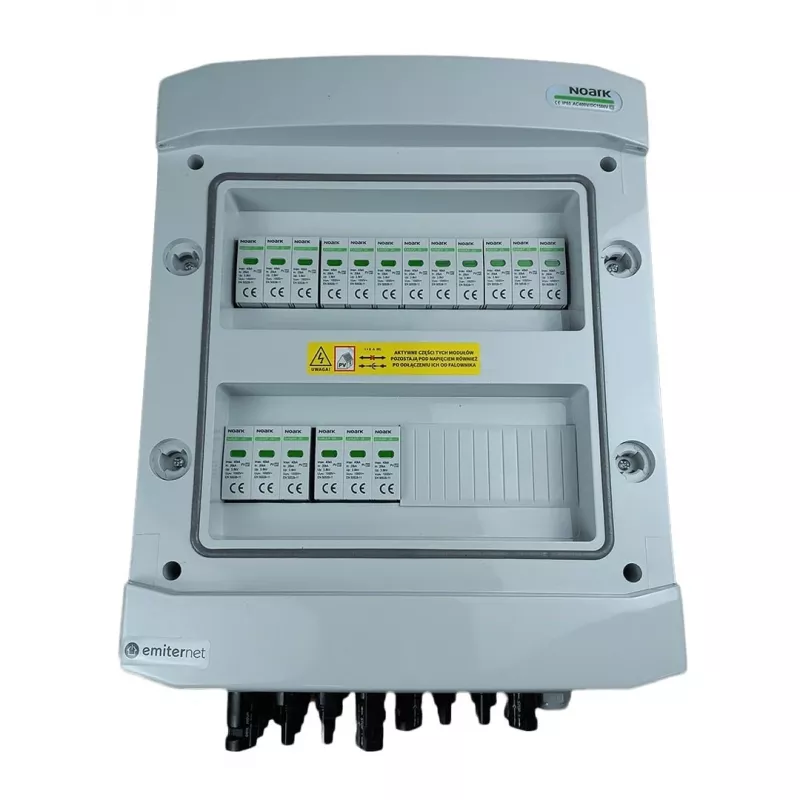

The EMITER Switchgear Attached DC Hermetic IP65 EMITTER is a high-performance DC combiner box designed for photovoltaic systems. It integrates a Noark 1000V Type 2 DC surge arrester, providing robust protection against voltage surges. With 6 PV string inputs and 6 individual MPPT outputs, it optimizes energy harvest from solar panels. The IP65-rated enclosure ensures dust-tight and water-jet protection, making it suitable for outdoor installations.

Advantages

Integrated Noark Type 2 DC surge protection ensures reliable operation and extends system lifespan. The hermetic IP65 enclosure protects against harsh environmental conditions. Six MPPT outputs allow independent tracking for maximum energy yield. Easy wall-mountable design simplifies installation.

Suitable for

• Residential and commercial solar PV systems
• Outdoor installations requiring high ingress protection
• Systems with multiple PV strings and MPPT inputs

Key specifications

• Product Type: DC Combiner Box / PV String Box
• Number of PV String Inputs: 6
• Number of MPPT Outputs: 6 (Individual Outputs)
• Maximum System Voltage (DC): 1000 V
• Ingress Protection (IP) Rating: IP65
• Surge Protection Device (SPD): Yes, Integrated
• SPD Brand: Noark
• SPD Type: Type 2 DC
• SPD Voltage Rating: 1000 V
• DC Disconnector/Isolator: Yes, Integrated
• String Fuse Protection: Yes, 6x DC Fuses (e.g., 15A)
• Maximum Current per String: 15 A
• Maximum Output Current per MPPT: 15 A
• Enclosure Material: UV-resistant PC/ABS
• Mounting Type: Wall-mountable
• Connection Type: MC4 Compatible Connectors
• Operating Temperature Range: -25°C to +60°C
• Compliance: CE, RoHS

Recommendations

For optimal performance, ensure proper grounding and follow local electrical codes. Use with compatible MC4 connectors and appropriate cable sizes.
