EMITERNET 19 puhelinpaneeli/ISDN 50xRJ45 (1U) sininen FN/TEL/FA850KT5084BK

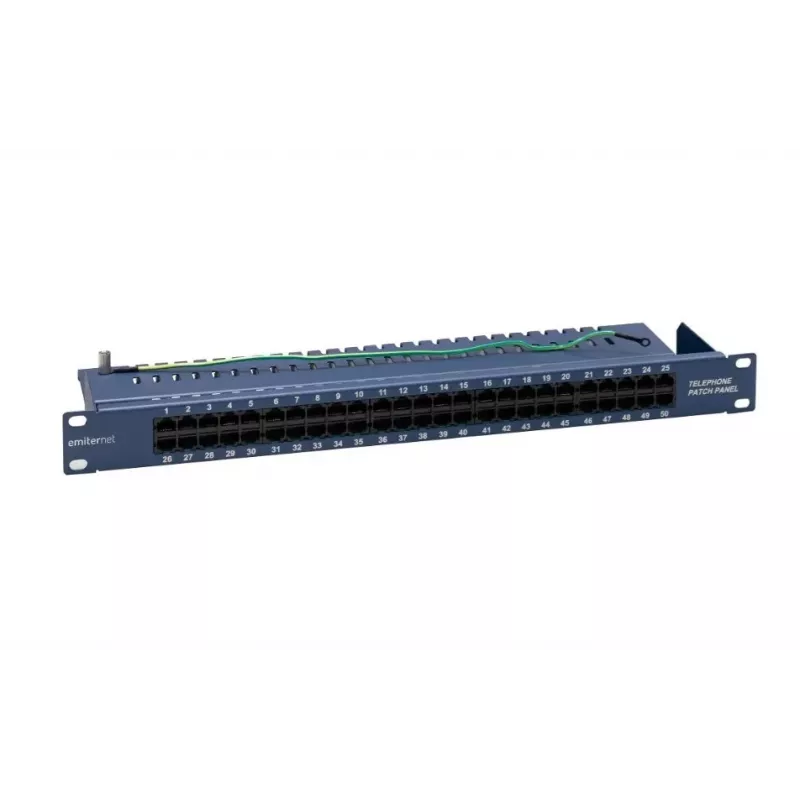

Where most 1U patch panels top out at 24 ports, the EMITERNET FN/TEL/FA850KT5084BK packs 50 RJ45 terminations into a single rack unit. That doubles the density of a conventional panel, freeing up precious vertical space in crowded 19-inch racks. Built for structured voice and ISDN cabling, it suits telephone distribution frames, PBX rooms, and any environment where many analogue or digital lines converge. The blue steel housing stands out instantly among black network gear, simplifying identification during maintenance.

Highlights

• 50 RJ45 front ports with clear numeric labeling for fast tracing
• Rear IDC termination blocks compatible with TIA/EIA 568A/B wiring
• Occupies only 1U in a standard 19-inch rack
• Unshielded design optimised for Cat3/Cat5e voice and ISDN signals
• Robust steel construction with a blue finish for visual distinction
• RoHS compliant for environmental responsibility

In daily use

Installation is straightforward: mount the panel in the rack, punch down incoming telephone or ISDN cables on the rear IDC terminals using a standard 110 punch-down tool, and connect patch cords to the front RJ45 jacks. The numbered ports simplify tracing and reduce the chance of misconnection during moves, adds, and changes. The 1U height conserves rack space, allowing more equipment to be installed in the same enclosure. The unshielded design is sufficient for voice-grade signals, and the steel housing provides mechanical stability even when many cables are attached.

Full specifications

• Panel type: Telephone / ISDN patch panel
• Rack size: 19 inch
• Rack units: 1U
• Number of ports: 50
• Front connector type: RJ45
• Rear termination type: IDC
• Colour: Blue
• Mounting type: Rack-mountable
• Application: Voice, Telephone Systems, ISDN
• Housing material: Steel
• Port labeling: Numbered ports
• Wiring standard: TIA/EIA 568A/B compatible
• Compatibility: Cat3 / Cat5e
• Shielding: Unshielded (UTP)
• Operating temperature: -10°C to 60°C
• Humidity range: 10% to 90% non-condensing
• Certifications: RoHS Compliant

Final note

For high-density voice termination in a compact footprint, this 50-port panel delivers twice the capacity of typical 24-port units without sacrificing clarity or build quality.
