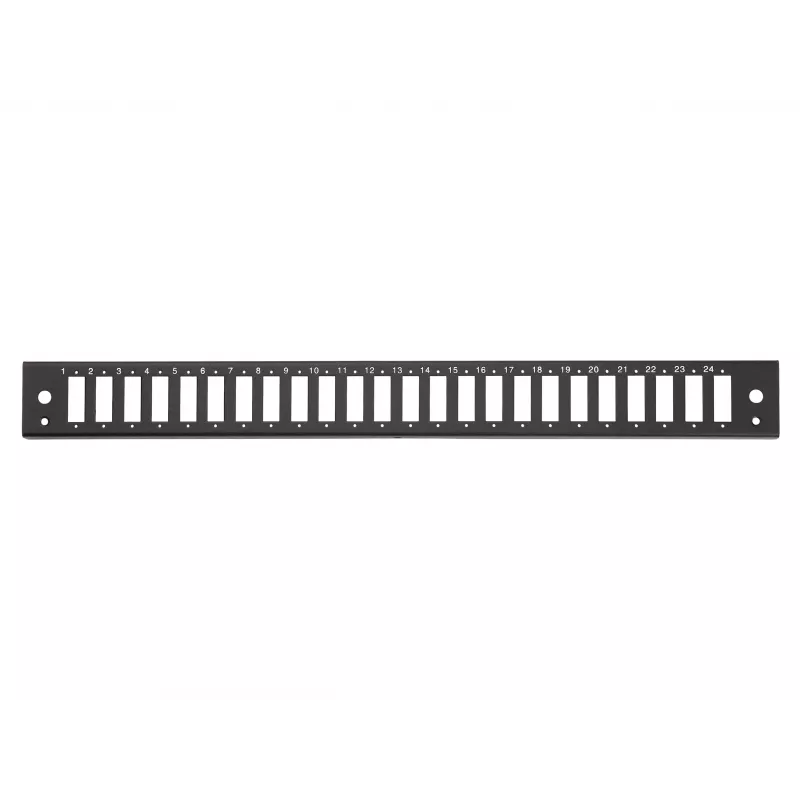

EQUIP 19 tuuman 1U rack-asennus kuitu-patch-paneeli, 24x SC-duplex, 48-kuituinen multimode OM3/OM4, teräs, musta

Managing high-density fiber connections in a data center or server room can quickly become chaotic without a structured patching solution. This EQUIP 19-inch rack-mount fiber patch panel consolidates 24 SC-Duplex ports (48 fibers) into a single 1U steel enclosure, bringing order to your multimode OM3/OM4 cabling. Pre-loaded with ceramic-sleeve adapters and a splice tray, it simplifies installation and ensures reliable optical performance.

Who is it for

Network administrators, data center technicians, and IT integrators who need a robust, space-efficient patching point for multimode fiber backbone or horizontal links. Ideal for 19-inch racks or cabinets in enterprise LANs, server farms, or campus networks where OM3/OM4 multimode fiber is deployed.

Main features

• 24 SC-Duplex ports, totaling 48 fiber connections in a compact 1U form factor
• Compatible with 19-inch racks; rugged black steel construction for durability
• Pre-assembled with ceramic adapter sleeves for low insertion loss and high repeatability
• Includes splice tray for secure fiber management and protection
• Supports multimode OM3/OM4 fiber, enabling 10G/40G/100G short-reach applications
• Rear cable entry for clean routing and easy access

Specifications

• Product type: Fiber optic patch panel
• Rack size: 19 inch
• Rack units: 1U
• Number of ports: 24
• Connector type: SC-Duplex
• Total fiber count: 48
• Fiber mode: Multimode
• Fiber category: OM3/OM4
• Material: Steel
• Color: Black
• Adapter sleeve material: Ceramic
• Pre-assembled: Yes, with adapters
• Splice tray included: Yes
• Cable entry: Rear
• Mounting type: Rack mount
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C

Tips

For best performance, use OM3 or OM4 multimode patch cords with SC connectors. Label each port clearly to simplify moves, adds, and changes. Ensure adequate rear clearance for cable bend radius and future maintenance.
