EQUIP 24-porttinen kuitujatkosrasia, LC Duplex, OM3, 1U, asennettu, musta

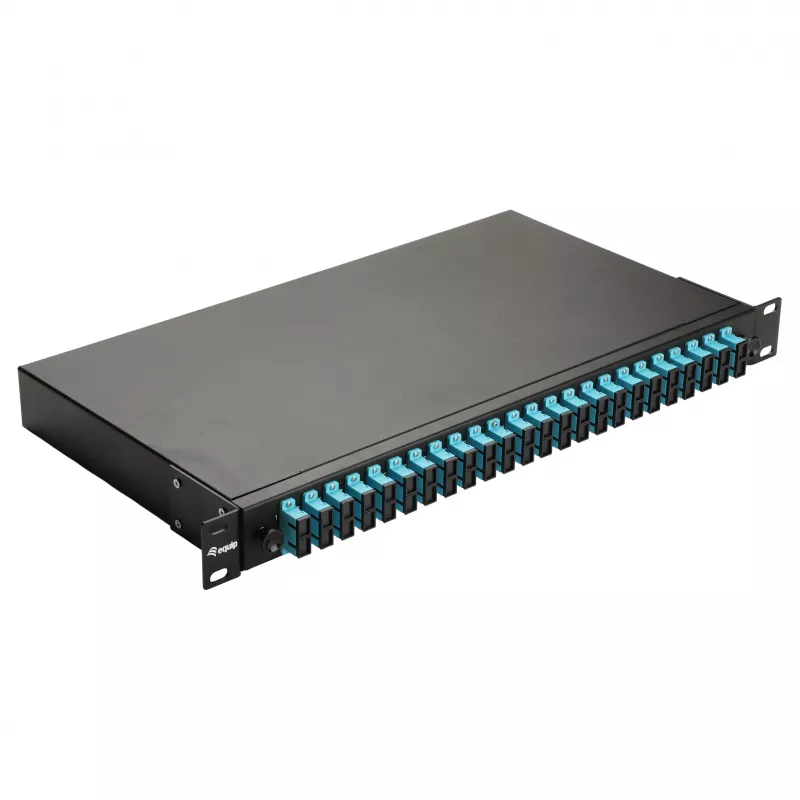

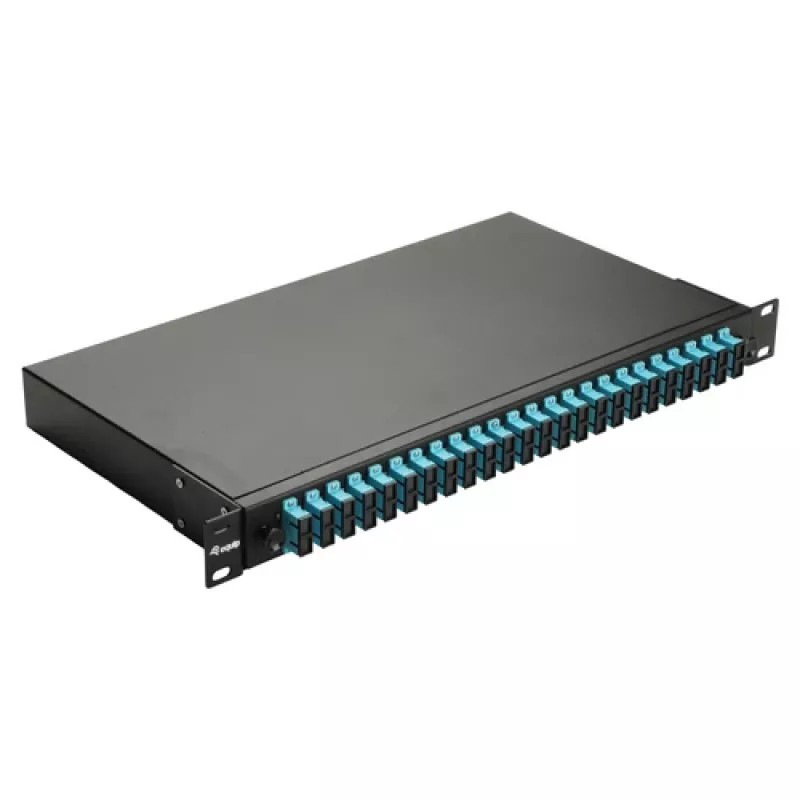

This 1U rackmount fiber optic splice box delivers high-density OM3 multimode connectivity with 24 LC duplex ports, fully equipped for immediate deployment. The steel chassis with pre-installed adapters and pigtails streamlines fiber management in data centers and enterprise networks.

Advantages

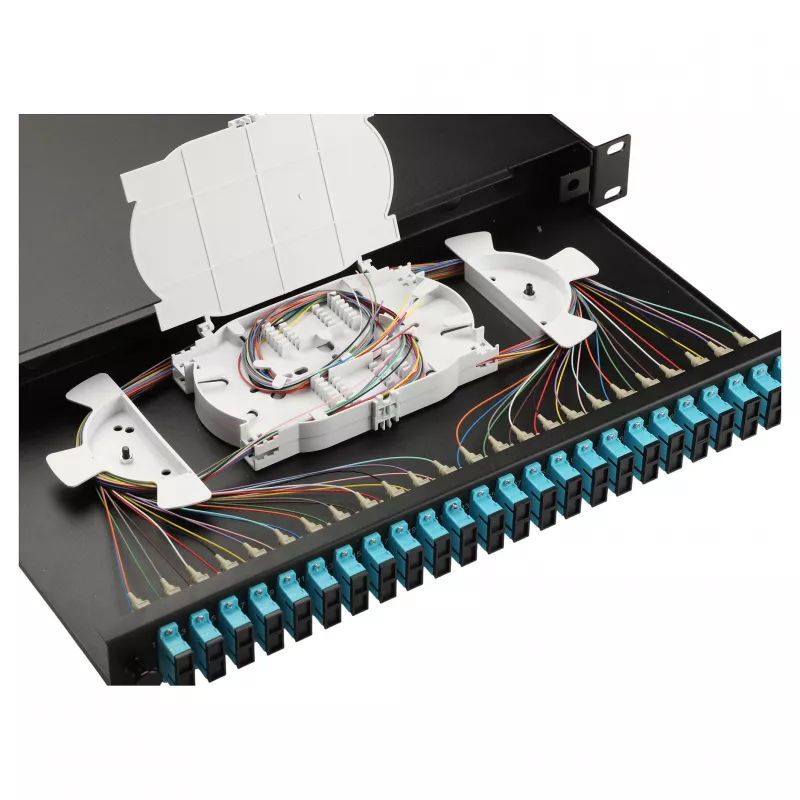

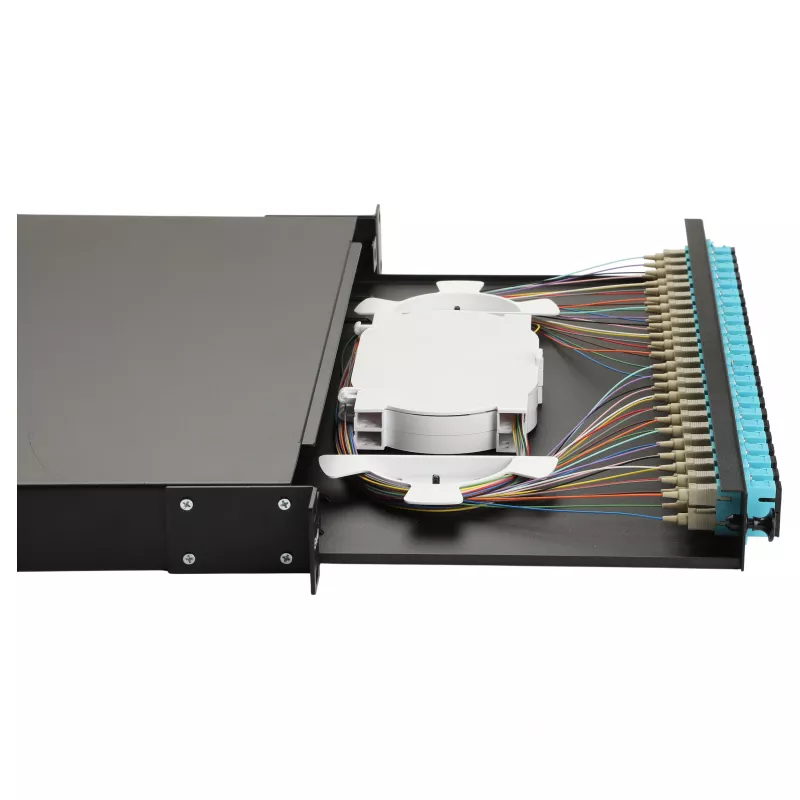

Fully equipped with 12 LC duplex adapters and 24 OM3 pigtails (2 m), the splice box is ready for immediate deployment. The 24-splice tray capacity ensures neat, protected splicing, while multiple rear cable entries allow flexible routing. Its robust steel construction and 19-inch rackmount form factor guarantee stability and long-term reliability in demanding environments.

Suitable for

• Data centers requiring high-density fiber management
• Enterprise networks with OM3 backbone infrastructure
• Telecommunication facilities needing structured cabling solutions
• Server rooms seeking a clean and organized patch panel

Key specifications

• Ports: 24 (LC Duplex)
• Fiber type: Multimode OM3
• Rack unit: 1U
• Mounting: 19-inch rackmount
• Adapters: 12x LC Duplex pre-installed
• Pigtails: 24x OM3, LC connector, 2 m length
• Splice tray capacity: 24 splices
• Colour: Black
• Material: Steel
• Operating temperature: -20°C to 70°C
• Insertion loss (max): 0.3 dB
• Return loss (min): 30 dB
• Certifications: CE, RoHS

Recommendations

Proper fiber handling and cleaning are essential to maintain low insertion loss and optimal performance. Ensure that all splices are securely stored in the tray and that cable entries are properly sealed to prevent dust ingress.
