Equip 25-porttinen Cat.3 RJ45 ISDN patch-paneeli, musta

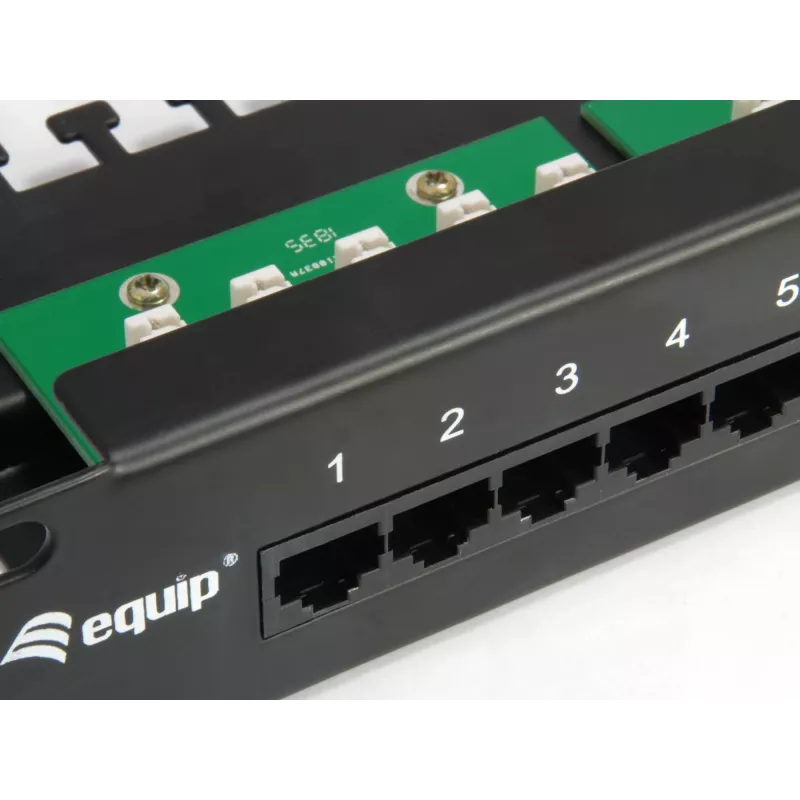

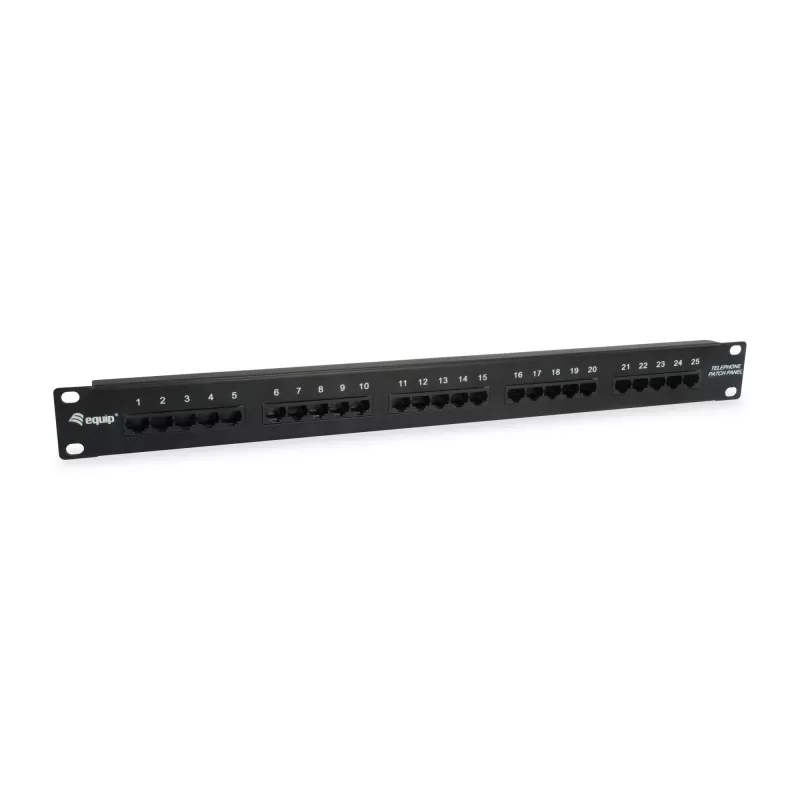

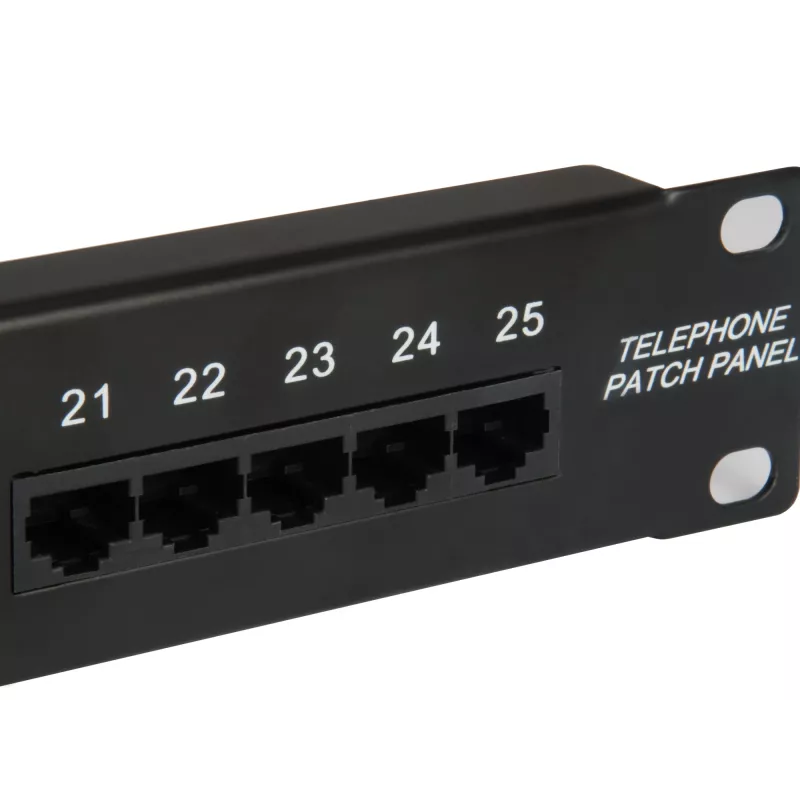

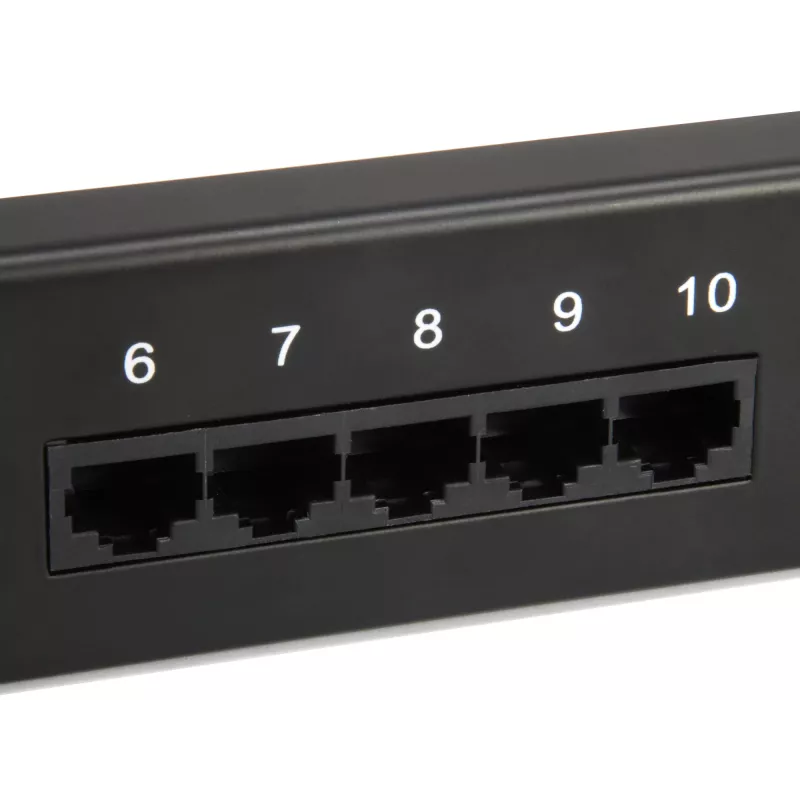

The Equip 25-Port Cat.3 RJ45 ISDN Patch Panel is a 19" 1U rack-mount telephone distribution unit designed for structured ISDN and voice cabling. It provides RJ45 ports compatible with Cat3 cable and includes an integrated cable management system for improved routing and strain relief. Each port is clearly marked with a port number to simplify identification during installation and maintenance.

Advantages

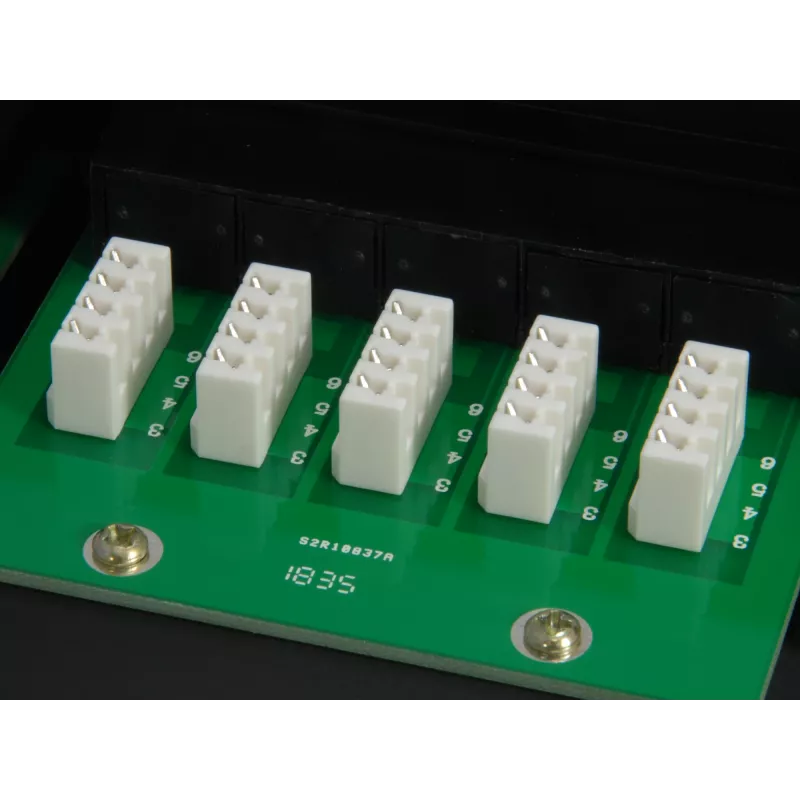

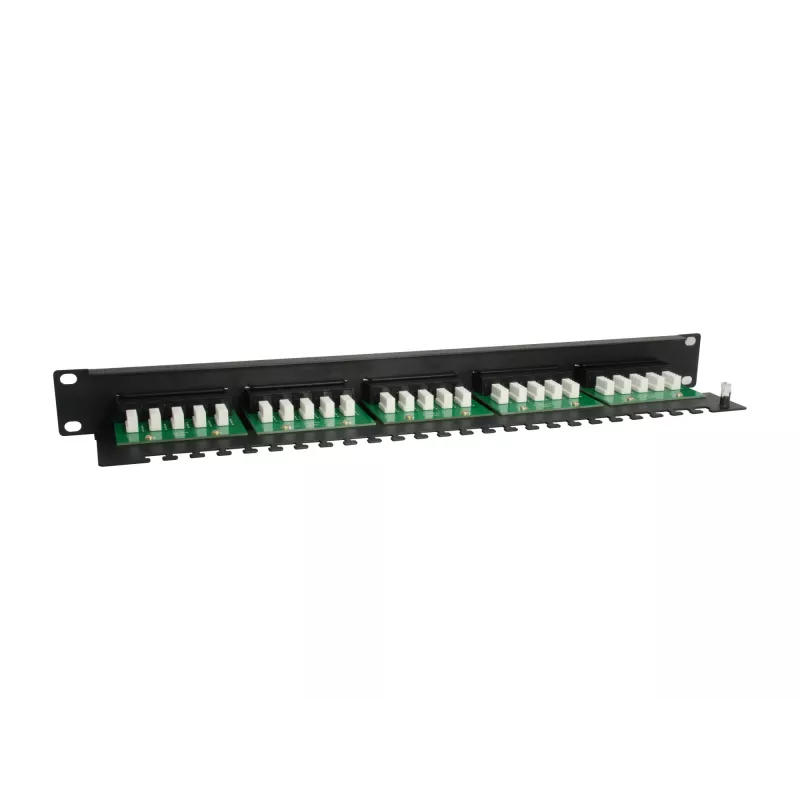

The patch panel supports both LSA and 110 termination standards, offering flexibility for different wiring practices. Its 1U form factor and 19" rack compatibility make it suitable for standard server cabinets, while the integrated cable management reduces cable stress and keeps installations tidy. The unit is RoHS and CE compliant for regulatory conformity.

Suitable for

• ISDN telephone distribution in rack-mounted environments
• Voice cabling with Cat3 and RJ45 terminations
• Small-to-medium network closets and PBX wiring panels

Key specifications

• Ports: 24 RJ45 (Cat3, ISDN/voice)
• Rack size: 19" 1U
• Termination: LSA and 110 compatible
• Colour: Black
• Dimensions: 483 mm (W) x 44.5 mm (H) x 100 mm (D)
• Weight: 1.05 kg
• Certifications: RoHS, CE

How to use

Mount the patch panel in a standard 19" rack occupying 1U of space. Terminate incoming Cat3 or compatible voice cables using either LSA or 110 punch-down tools according to your wiring scheme. Use the integrated cable management features to route and secure cables, and refer to the numbered port markings when connecting patch cords to ensure correct channel allocation.

Recommendations

For reliable performance, use Cat3-grade cabling for voice/ISDN signals, avoid excessive cable bend radii at termination points, and label both ends of each connection. When installing in shared racks, ensure adequate ventilation and secure mounting to prevent mechanical stress on the panel and attached cables.
